Features and Specifications:
- Year of Manufacture: 2003

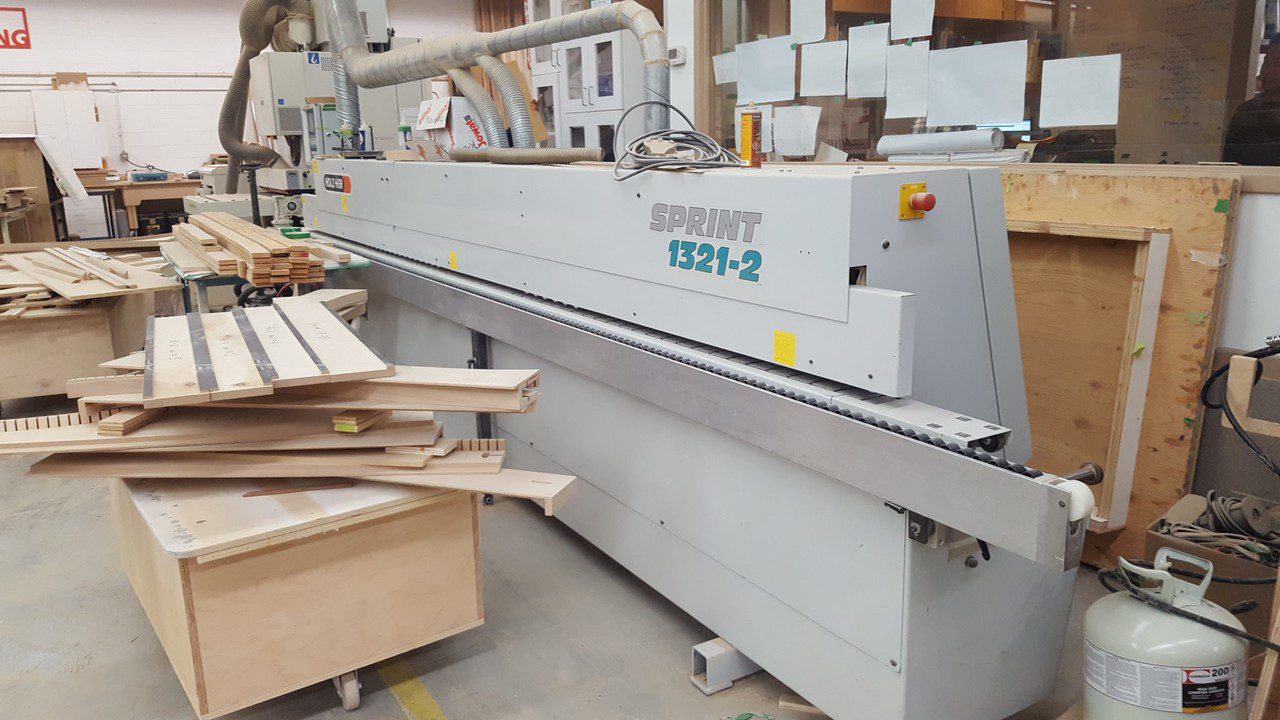

- Holz Her 1321-2 Edgebander with Pre-mill and Corner Rounding
- 0.3 – 15 mm Thickness edge banding capability (3 mm coil or 15 mm max. strip);
- 6 – 50 mm panel thickness, workpiece width min. of 60 mm;
- work piece length min. 180 mm;
- Feed speed 12.5 MPM (41 FPM).
- Programmable Logic Control (PLC) for Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing.
- Programs can be easily created and recalled at will; screen with graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed;
- Edgebander can be operated manually when required, without necessity to write a program.
Machine Configuration:
- Pre-Milling Station “1961”, (2) 2 kW – 12,000 RPM motors; “1903” Edgestrip Magazine; (1) Universal Magazine for solid edges, strips, and coiled material.
- Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive “Tractor-Belt feed System”, edge guide equipped with automatic guillotine lockout for safety, 3° approach angle allows easy feeding of large wood edges.
- “1906” Gluing Station – Cartridge System: Servo controlled pressure section with (1) large driven roller & (2) cantered idle rollers.

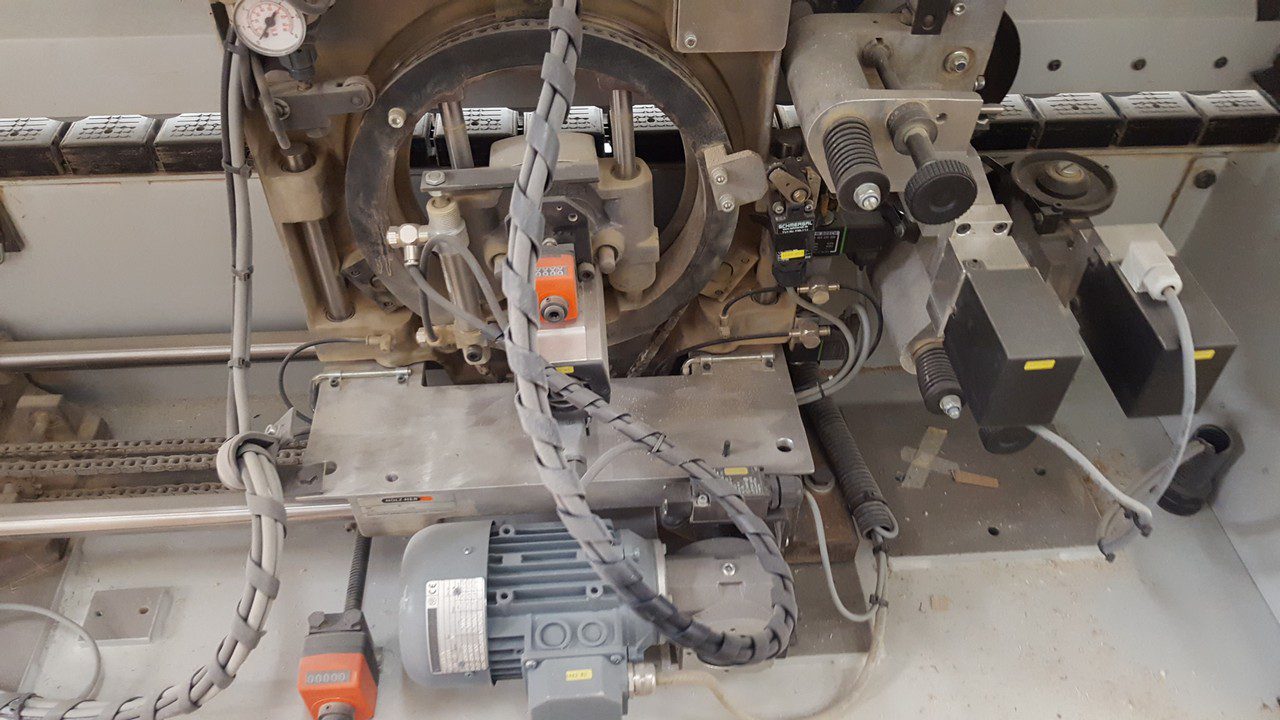

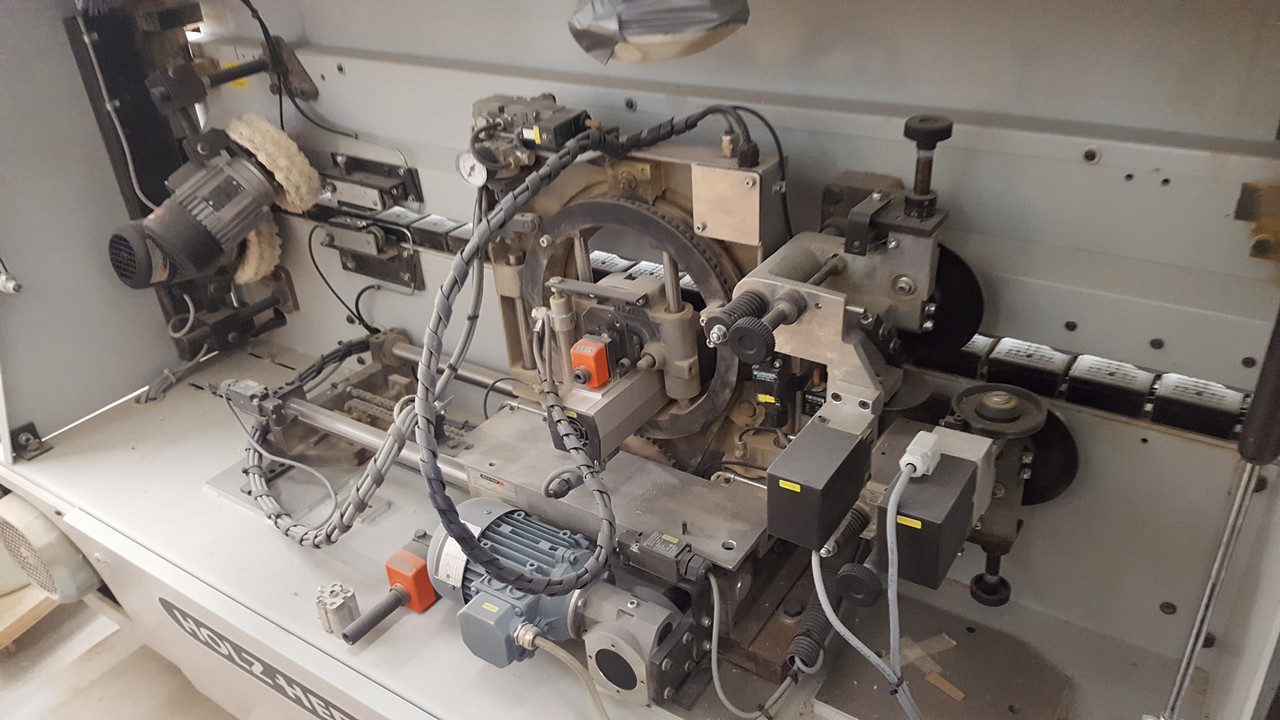

Workstations:
- “1918 HF” Front & Rear End Trim unit (0.35 kW – 9,000 RPM motor each), Uni-Point axis for no re-indexing when changing from flush to bevel end trim (0° – 10° bevel),”PCS” Pneumatic Changeover from flush to bevel from control panel.
- Top & Bottom Flush Trim Unit “1823” (0.6 kW – 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts.
- “1826-MOT6” Servo Controlled Top & Bottom Combination flush/chamfer & radius unit (0.6 kW – 18,000 RPM each motor), Uni-Point design for no second adjustment when changing the degree of bevel, air jets for debris removal, (6) servo motor changeover system from flush to radius from control panel
- “1929” Servo Controlled Top & Bottom PVC scrape station: Reversible insert carbide knives, equipped with air-jet blowers;
- “PCS” Pneumatic Changeover System moves Scraper Unit in and-out from control panel; inc. Chip Collector Box.
- “1832” 1-Motor Corner Rounding Unit: For edges up to 3 mm edge thickness; incl. Tooling R = 3 mm.
- Pneumatic Controlled Top & Bottom Glue Scrape Station

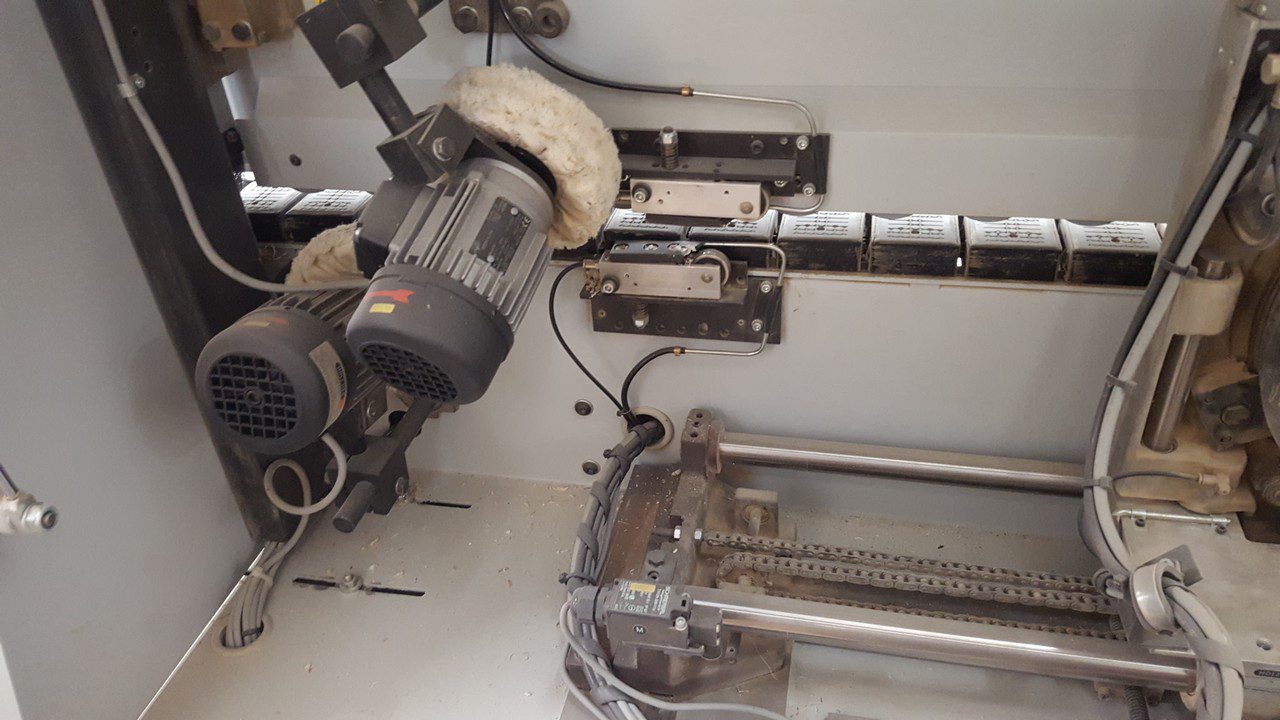

- “1940” Top & Bottom Buffing Station: Possible to adjust in any direction (vertical tilt is 0° – 5°, horizontal swivel is 0° – 20°); 1,440 RPM wheel rotation.
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
