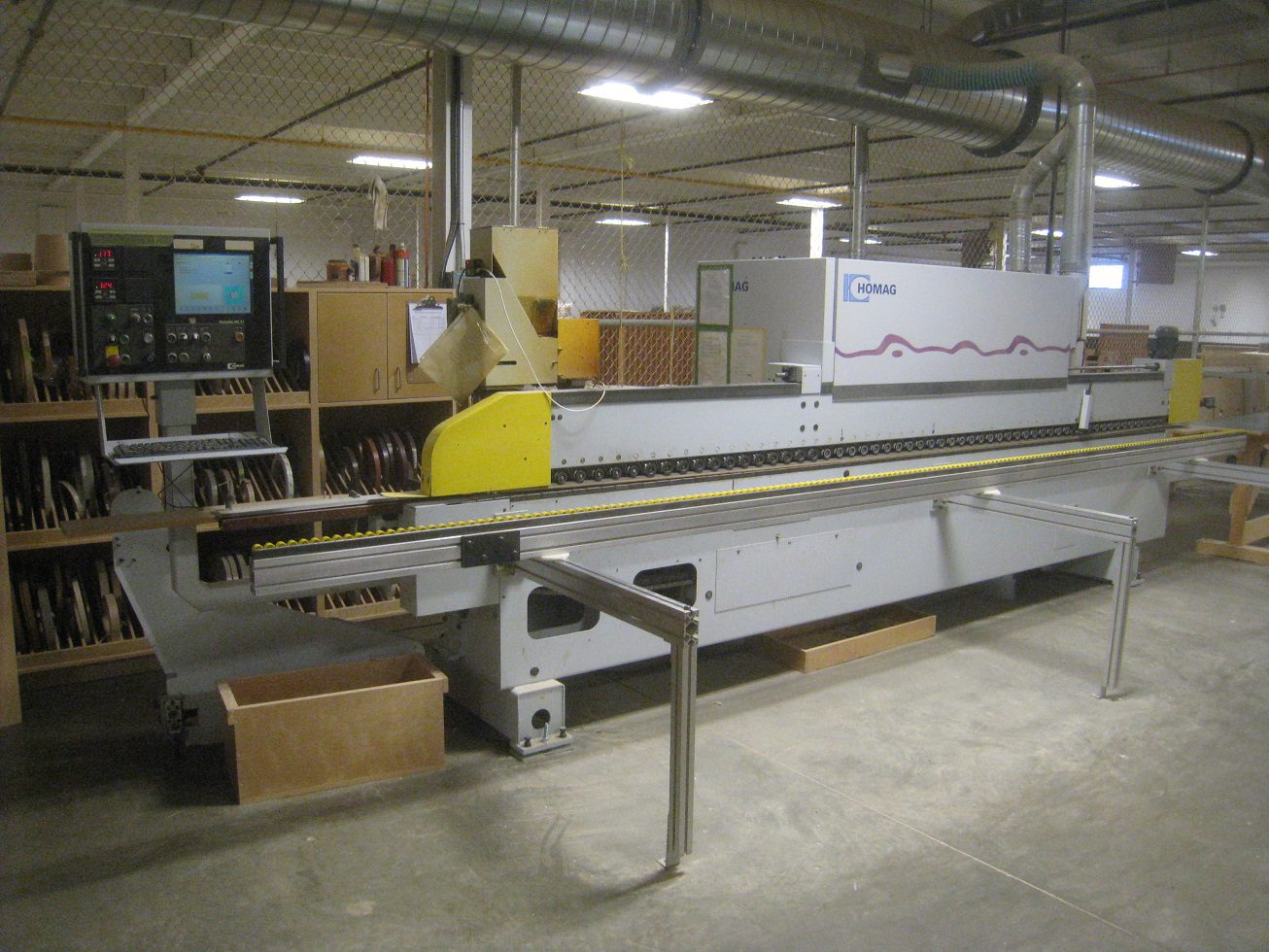

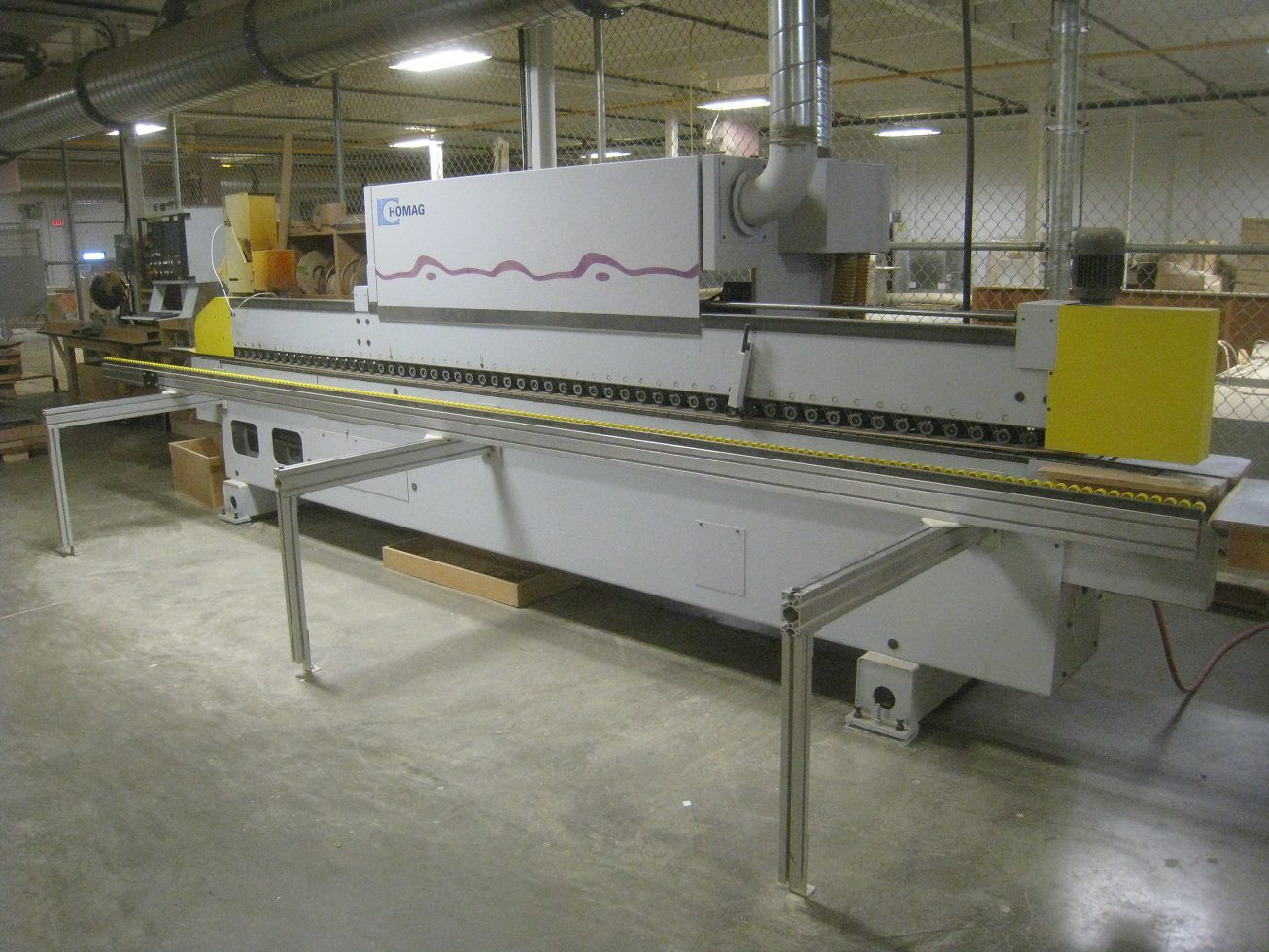

Homag Edgebander Optimat KL 74/A20

Features and Specifications:

• Quickmelt glue tank
• Seven pressing rollers
• Rejection group
• Re-sharpening group
• Groover group (Universal cutter group)
• Characteristics of the machine:
• Board thickness: 12-60 mm
• Thickness of the edge: 0.4 – 20 mm
• Panel Width Minimum: 100 mm
• Panel Length Minimum: 150 mm
• Panel Thickness Minimum: 12 mm
• Panel Thickness Maximum: 60 mm
• Air Supply Requirements: 6 Bars
• Dust Evacuation Requirements: 32 m/second
• Operator Interface: NC 21
• This machine can apply thin or thick tape application and strips to 20mm, 1 reel magazine, end trimmers, rough milling station, fine milling station, profile scraper station, and buffing unit.

• 600 V
• 50/60 Hz
• 8 Bar
• Feed speed : 18-24 m/min.
• Buffing unit
• End trimmer
• Top and bottom trimmers

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
