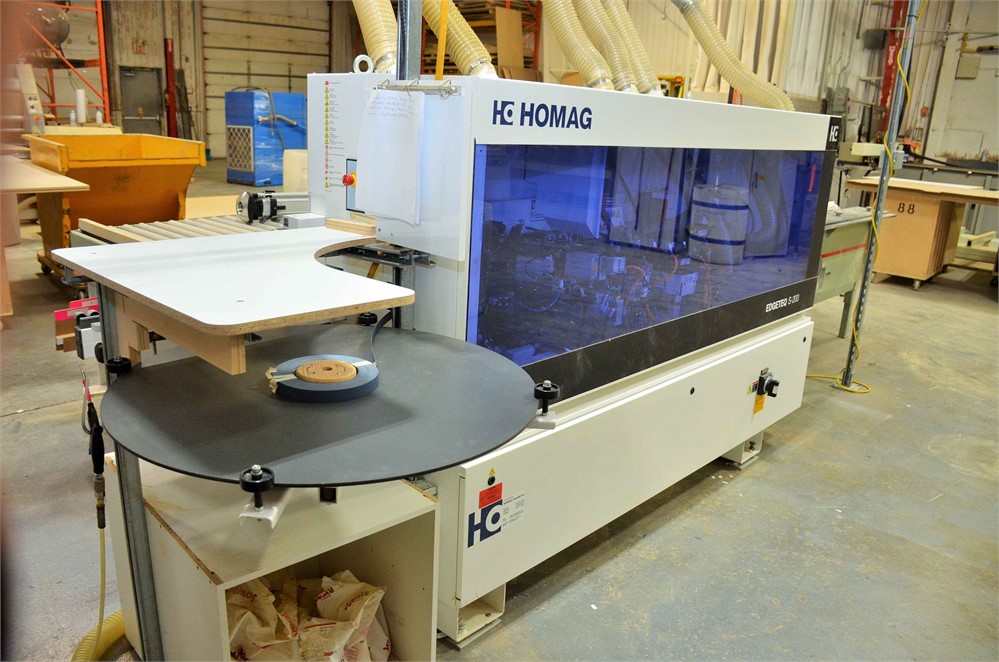

Homag Edgeteq S-200 Edgebander with Premill

Specifications

• S/N: 0-261-66-5028
• 230/440V
• 3 Phase
• Mfg Date: 2019
• 70 mm minimum panel width
• 8 mm – 40 mm panel thickness
• 0.3 mm – 3 mm coiled edgebanding thickness
• 0.4 mm – 3 mm strip edgebanding thickness
• Touch screen controller
• Edgebanding infeed table
• Guillotine
• Two (2) motor premill unit
• Glue unit with glue pot and roller
• Pressure zone
• One (1) driven roller
• Two (2) idle rollers
• Two (2) motor end trimming unit
• Top/bottom trimming unit
• Tiltable
• Top/bottom profile scraping unit
• External collection box
• Top/bottom flat scraping unit
• Sound enclosure

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
