SKU: 572-1

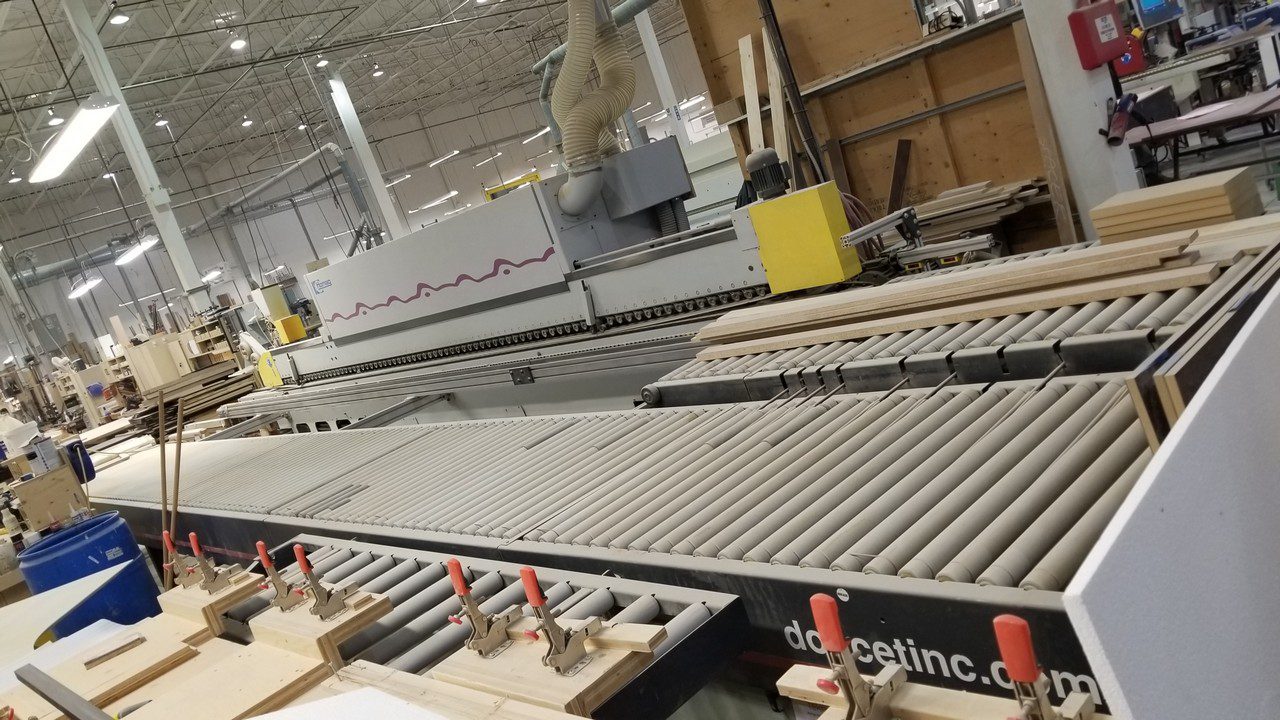

HOMAG Optimat KL 76/A20 Edgebander

Out of Stock But wait, we have similar products

Features and Specifications:

  • Homag Optimat KL-76 A20 Edgebander:
  • Not included return conveyor but can be purchase separately.
  • 0.4 – 20 mm Edge thickness cap., Min. panel width 55 mm (2-1 / 4 “), panel thickness 12 – 60 mm, min. edge length 10-1 / 4 “.

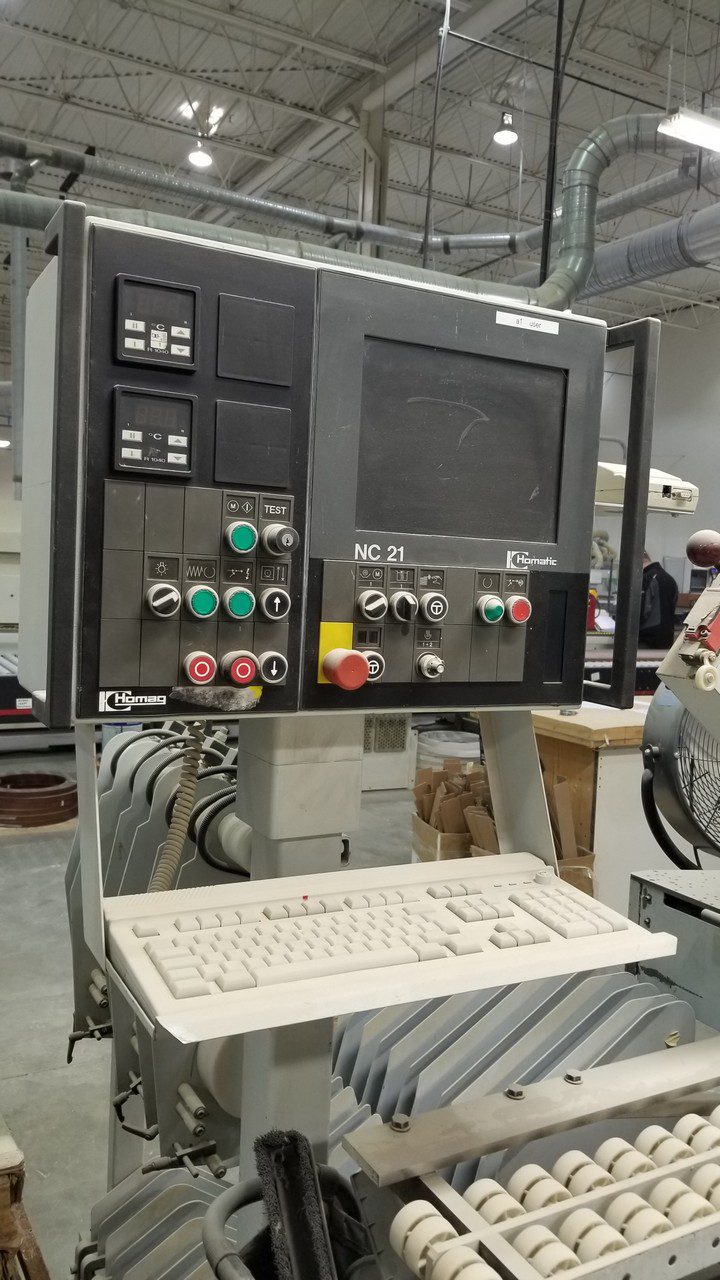

  • Line control with “HOMATIC NC 21” controller features: Keypad & LCD display, allows fault diagnosis and more.
  • Equipped with: Automatic coil feed magazine for coil material up to 3 mm thickness, strip magazine feed for up to 20 mm (3/4 “) solid wood banding.
  • “QA 34” Quick Melt glue system w / pre-melt granular hopper and roller applicator (reversible).

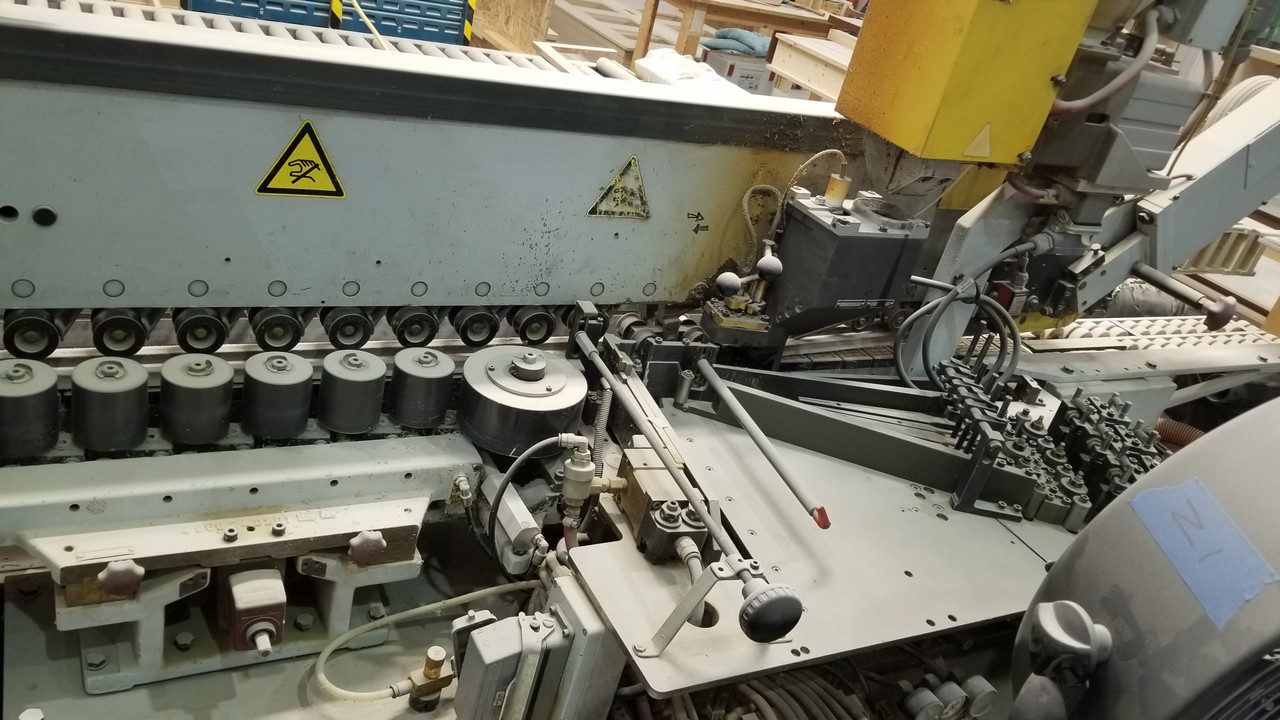

  • Pneumatic pressure roll section with (1) large dia. driven and (6) pneumatically controlled idle rollers.
  • Workstations: Pre-milling (3 Kw motors) with SIKO adjustment; Double motor front & rear end trim (0.7 HP – 12,000 RPM ea.), Pneumatic chamfer setting;
  • Top & bottom bevel & fine trims (0.6 HP – 12,000 RPM motor ea.), Tiltable 0 ° – 30 °, pneumatic exclusion from operator panel; Top & bottom bevel & fine trims (0.6 HP – 12,000 RPM motor ea.), Tiltable 0 ° – 30 °, pneumatic exclusion from operator panel.
  • “UF-11” Edge profile shaper unit, tilts at 0 ° or 90 ° w / pneumatic jump control (4.15 HP – 9,000 RPM motor), reverse switch for rotation (all trim station motors are 200 Cy HF and equipped w / electronic brakes).
  • “KS-10” Oscillating flat edge belt sanding unit (2.5 HP motor), 4.7 “x 82” abrasive belt, w / air blast belt cleaner.
  • Last Station: Top & bottom oscillation buffing unit (0.3 HP – 1.650 RPM motors).
  • V-belt holddown, powered by 80mm wide Heavy Duty feed chain, automatic lubrication system, and 4 HP feed drive for variable feed speed of 23 – 98 FPM.
  • In operation with all the books.
  • Electrical: 600 V. 60 Cy. 3 Ph.
  • Serial #: 0-200-15-1816
  • Machine Dimensions: Length 305 in x Width: 94 inc. x Height 75 in. Wt: 10,000 lbs
  • Machine State: This machine has been running 1.5 mm/ 0.05 mm product faithfully since purchase in 2010

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Machine Literature and Schematics Available.

Weight 2057.04 lbs
Dimensions 305 × 94 × 75 in
Brand
Model
Voltage
Phase
Serial
Amps
Purchase Year 2010
