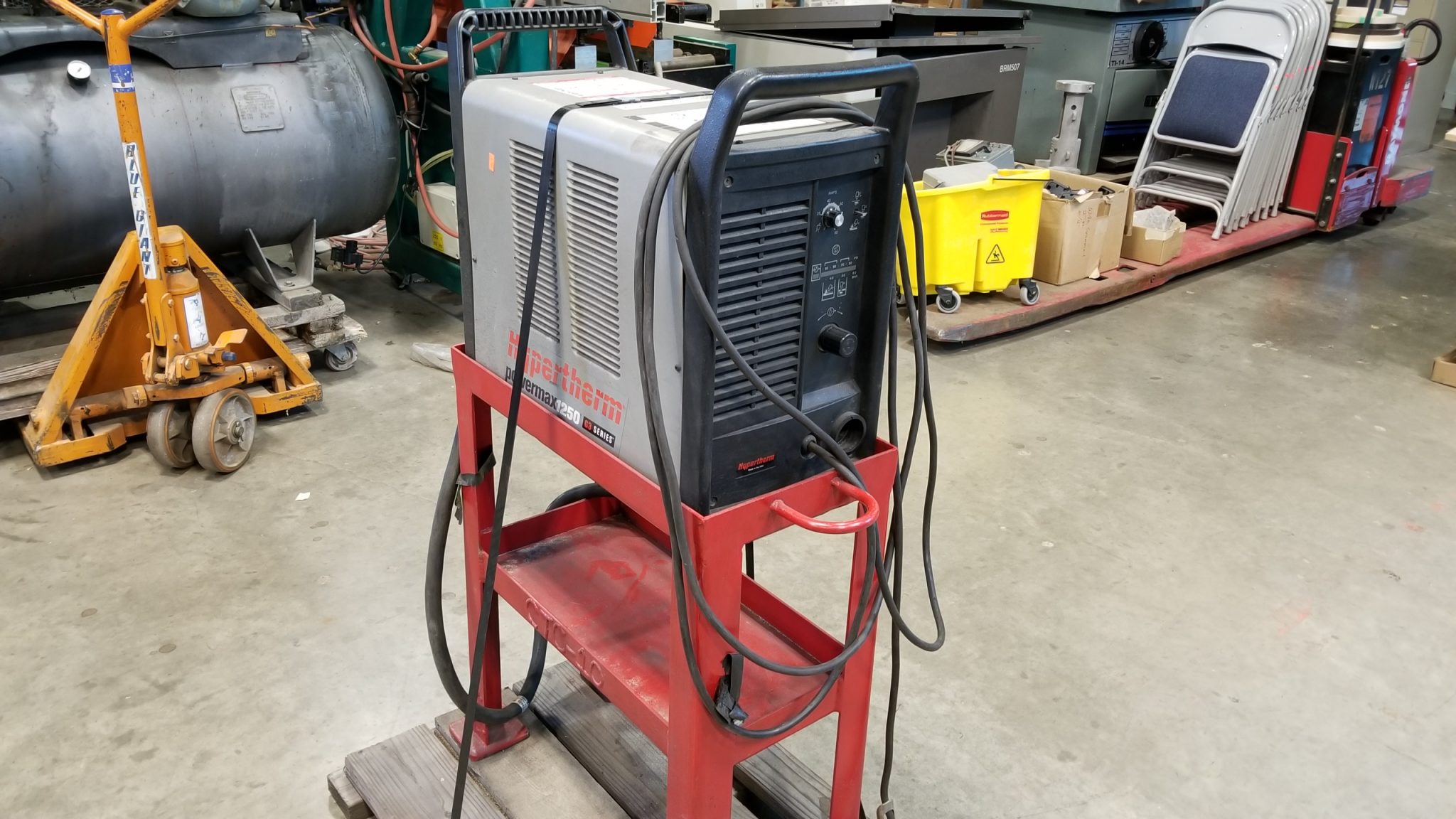

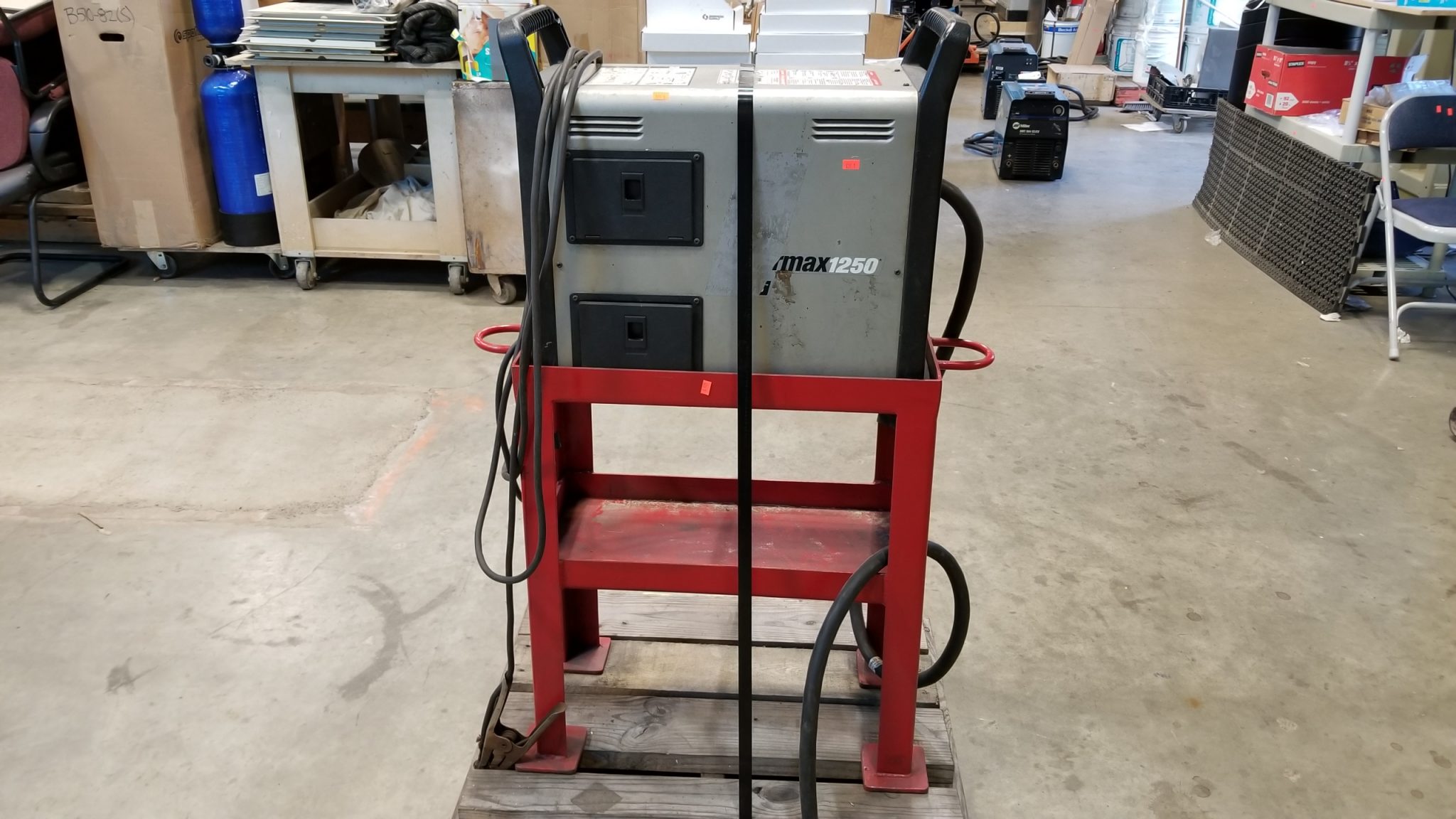

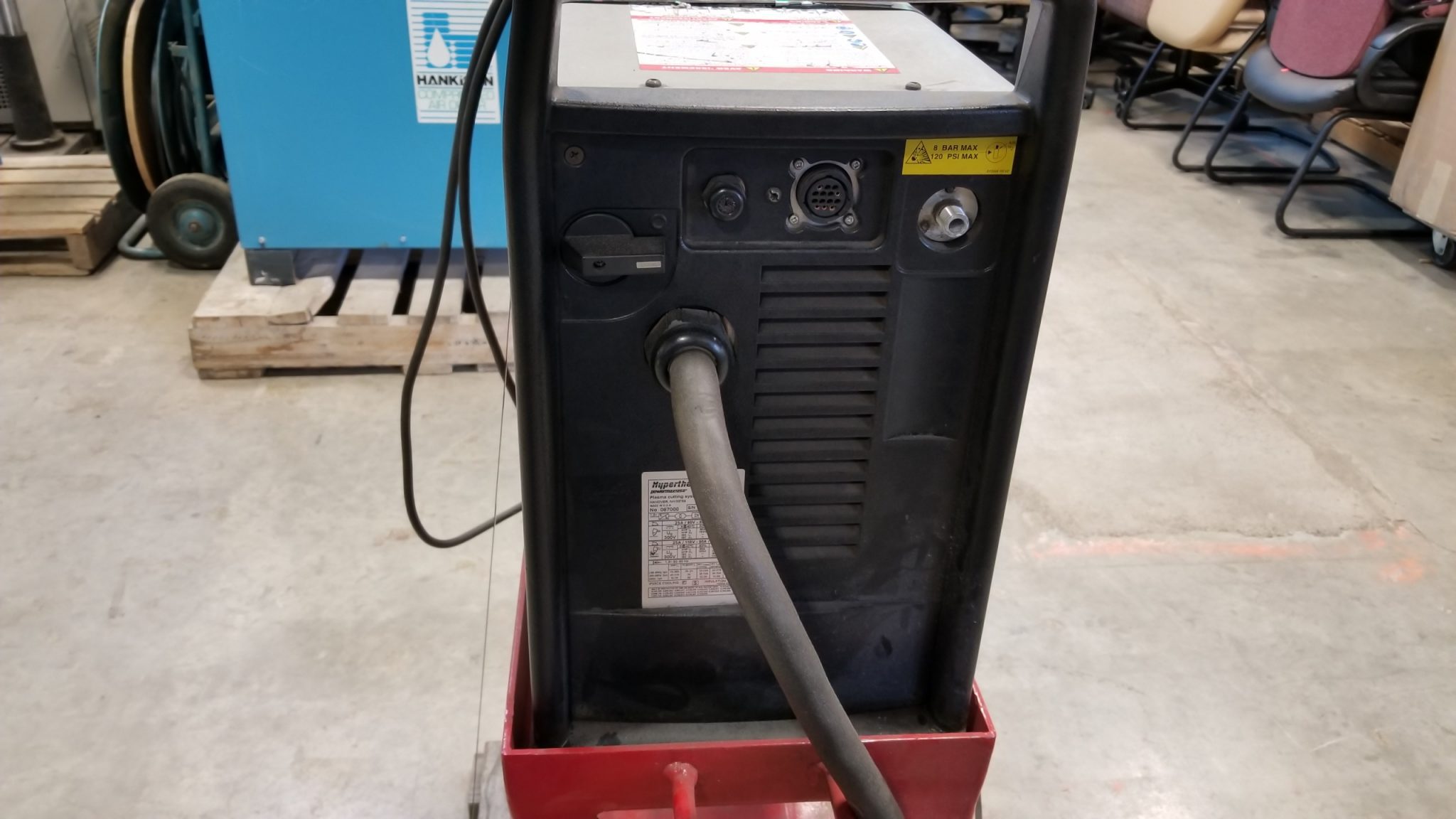

Hypertherm powermax 1250 g3 series

Plasma cutter 08700

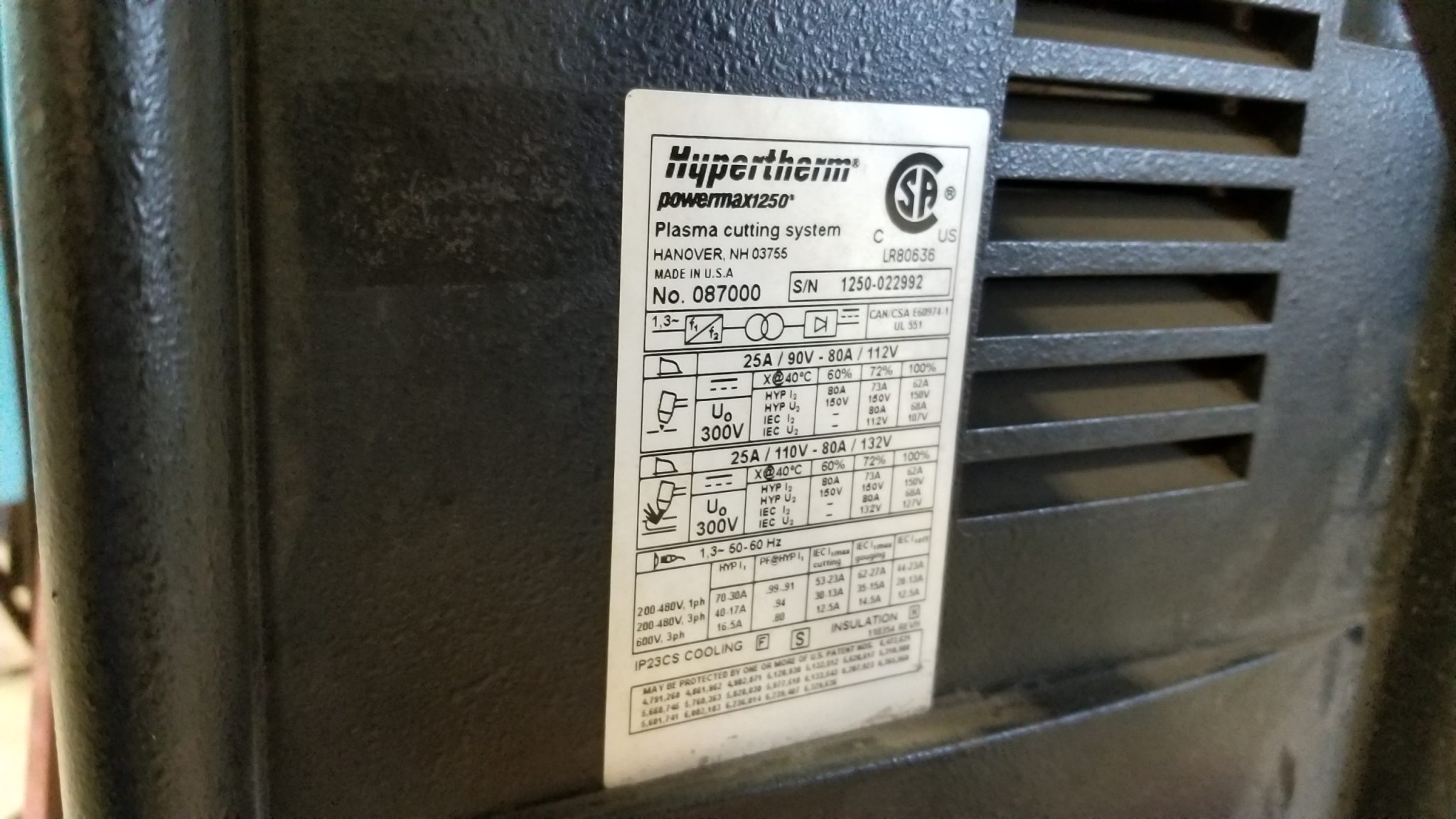

Manufacturer Specifications*

• Input voltages 200 – 600 V, 1- or 3-PH, 50/60 Hz, CSA
• Input current
• @ 12.0 kW 200/208/230/240/480 V, 1-PH: 70/70/60/58/31 A 200/208/230/240/400/480/600 V, 3-PH: 41/40/37/34/21/17/17 A
• Output voltage 150 VDC
• Duty cycle @ 40° C (104° F) 60% @ 80 A, 230 – 600 V, 3-PH
• 60% @ 80 A, 480 V, 1-PH
• 50% @ 80 A, 240 V, 1-PH
• 50% @ 80 A, 200 – 208 V, 3-PH
• 40% @ 80 A, 200 – 208 V, 1-PH
• Maximum OCV 300 VDC
• Dimensions 23.1″ (586 mm) D; 10.65″ (271 mm) W; 19.6″ (498 mm) H
• Weight with torch 96.6 lbs (44 kg)
• Gas supply Clean, dry, oil-free air or nitrogen
• Flow rate 400 scfh; 6.7 cfm (189 l/min) at 90 psi (6.2 bar)
• Flow pressure 70 psi (4.8 bar) flowing, 25′ leads
• 75 psi (5.1 bar) flowing, 50′ leads
