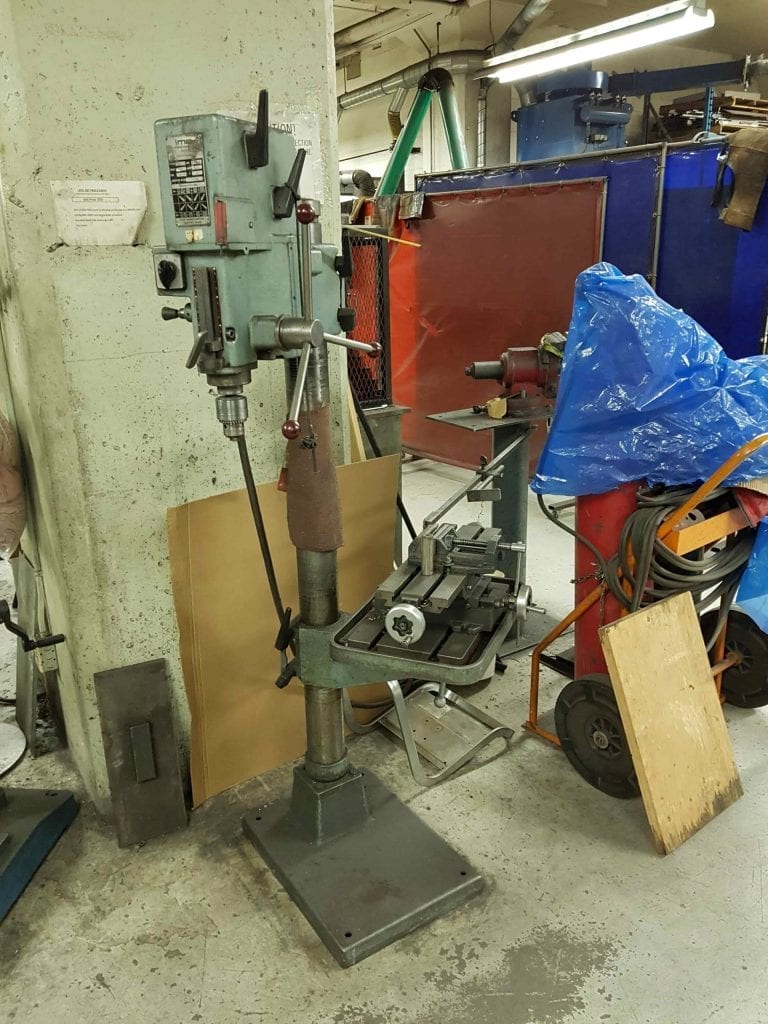

IMA IG-30-8, Geared Head Drill Press

Features and Specifications:

• Type IG-30-8
• S/N: 13669
• Capacity in steel 1″
• Spindle taper 3 MT
• Spindle travel 5 5/16″
• Spindle speeds 85 – 2,750 RPM
• Throat 10″
• Max. distance spindle to base 51″
• Max distance spindle to table 33″
• Table size 19 3/4″ x 14″
• 220 V
• Main motor 1.2 KW
• Spindle Speed Max. 2,750 RPM
• Dimensions 28″ x 20″ x 90″
• Approximate weight 500 Lbs.

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Part List Manual Available.
