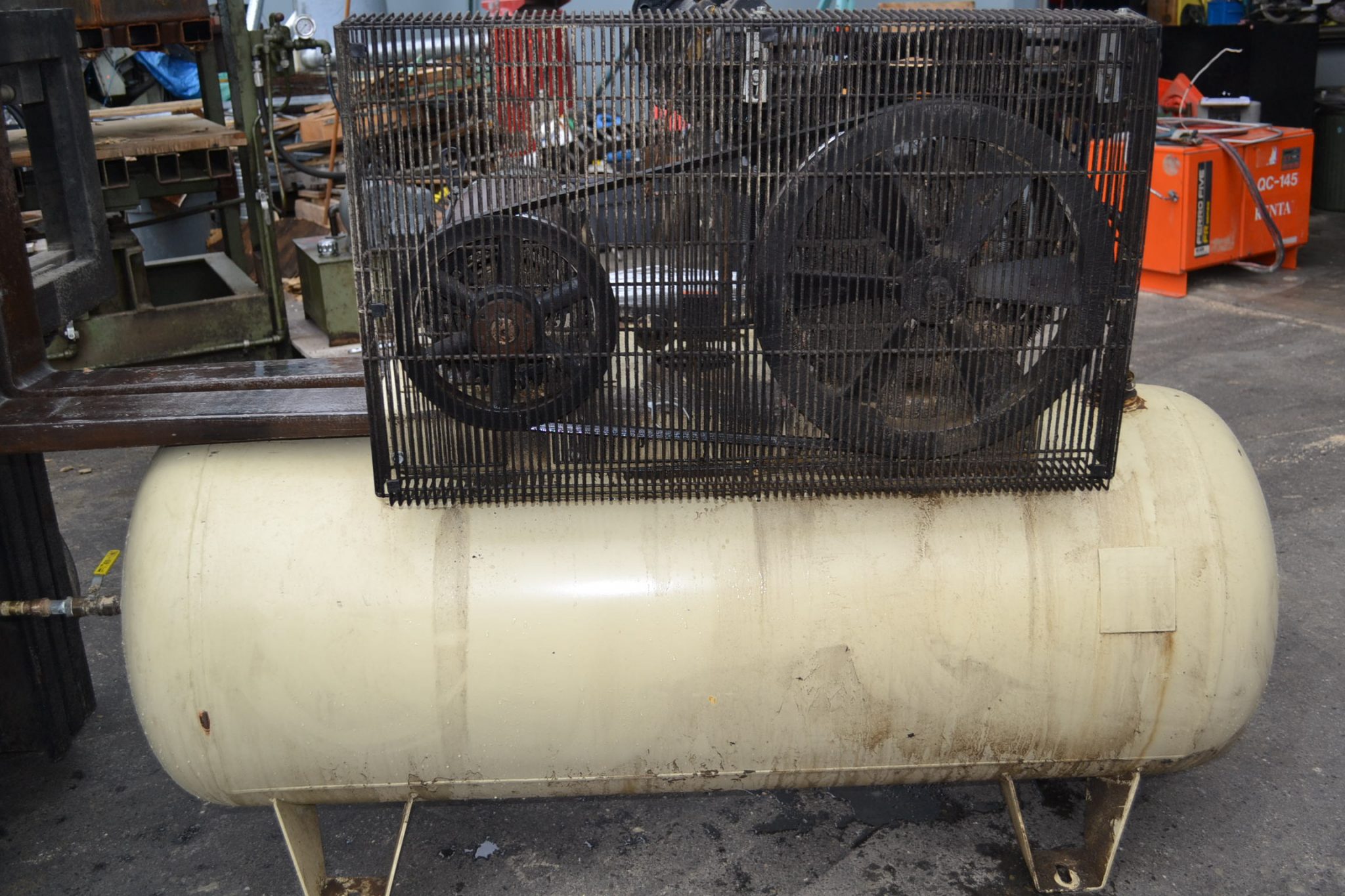

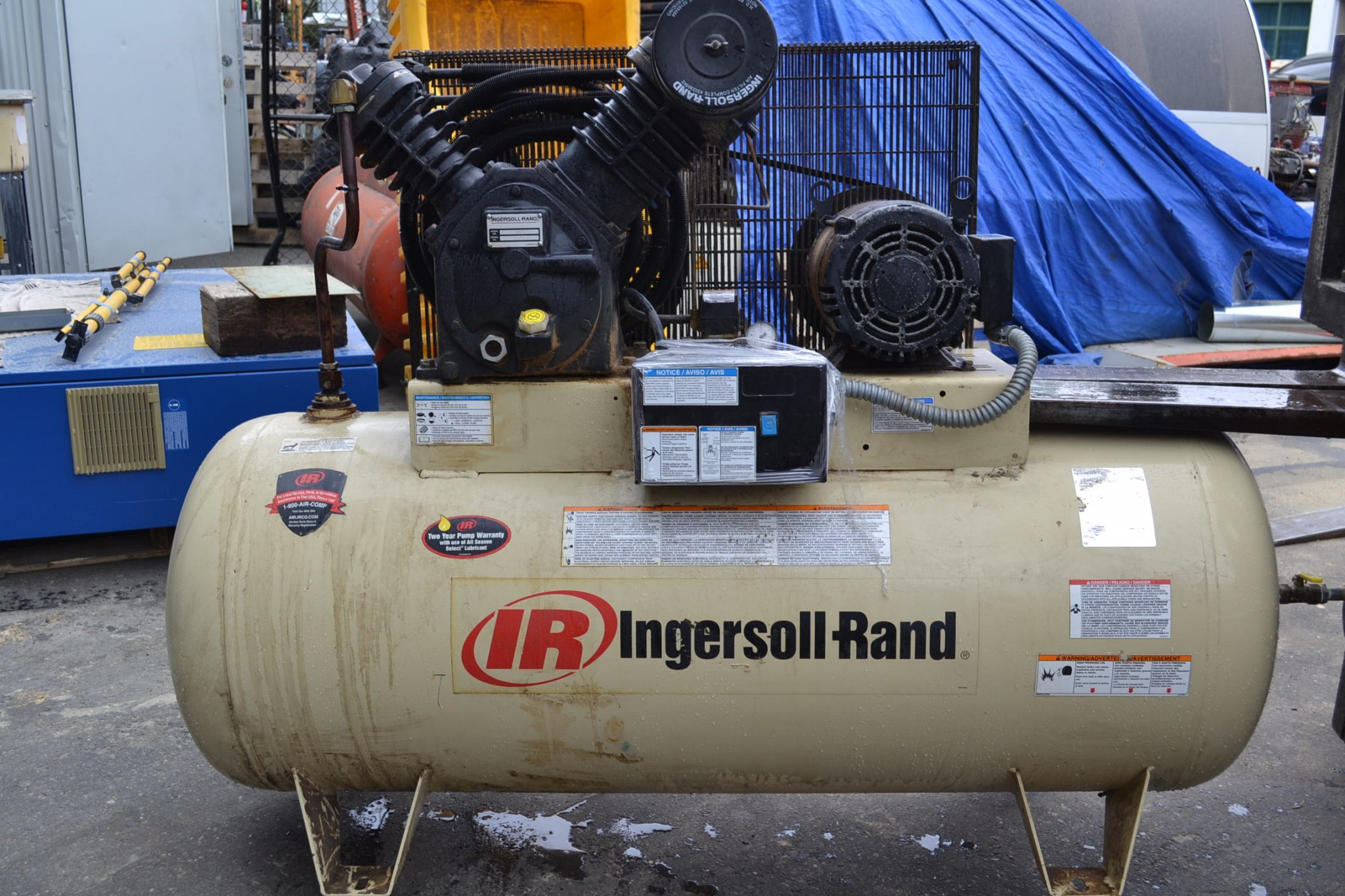

Ingersoll Rand 20 HP Air compressor

Features and Specifications:

• Provides the most dependable commercial grade air in the market to meet any application requirement
• 120 gallon tank made from 100% cast iron for durability.
• 10 HP (horse power) motor delivers powerful operating pressure
• Start/Stop Pressure Switch is automatic for easier operation
• Capacity 50.0 CFM
• Control Setting 140-175
• Low Oil Shutdown Switch Yes
• Max Pressure(psig): 175
• Tank Outlet(in.) : 0.75
• Bore: 5″ & 2.75″
• Stroke: 3.5″
• Inlet Size: 1.25″ NPT
• Discharge Size: 0.75″ NPT
• Max RPM: 1050
• Min RPM: 400
• Sheave OD: 18″
• Sheave PD: 17.6″
• Aircooled Aftercooler CTD: 15° F
• Magnetic Starter Yes Mounted

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
