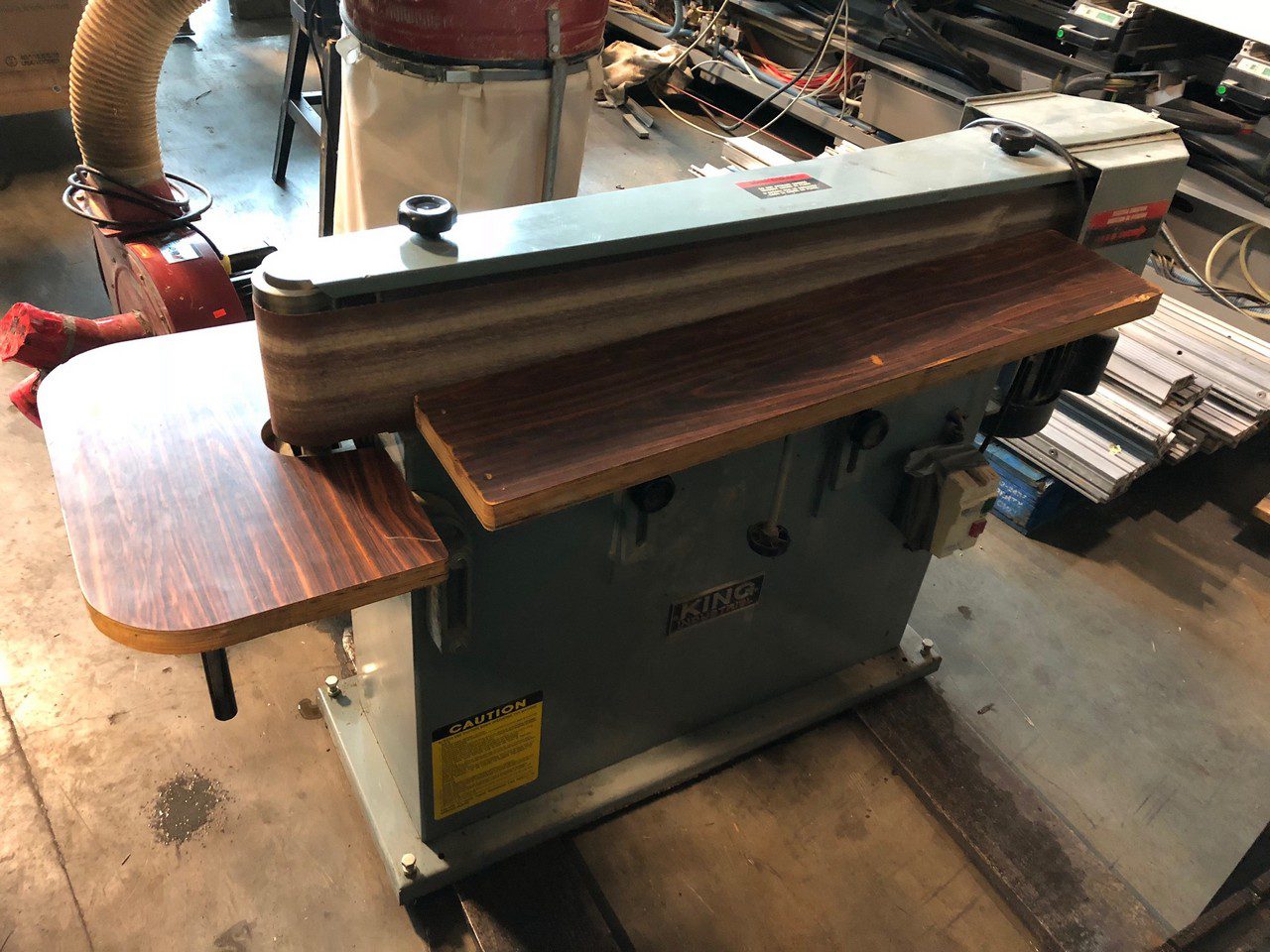

KING Canada 6” x 108” Edge Sander Model CT-108 C

Features and Specifications:

• Powerful 2 HP motor
• Balanced 7″ rubber drive wheel and 3″ crown idler wheel provide uniform belt tracking
• Fully tilting front table
• Tables can be adjusted up and down to suit the job
• Hinged dust hood accommodates oversized stock
• Graphite backing diminishes belt friction for increased belt life
• Single knob tracking control
• End table allows curved sanding operations
• 4″ Dust chute for dust collector hook-up
• Magnetic safety switch
• Easy and convenient belt tension and tracking adjustment
• Belt:   6″ X 108″
• Table Size (Front): 37″ X 7-3/4″
• Table Size (Side): 19″ X 12″
• Belt Speed: 3,150 Sfpm

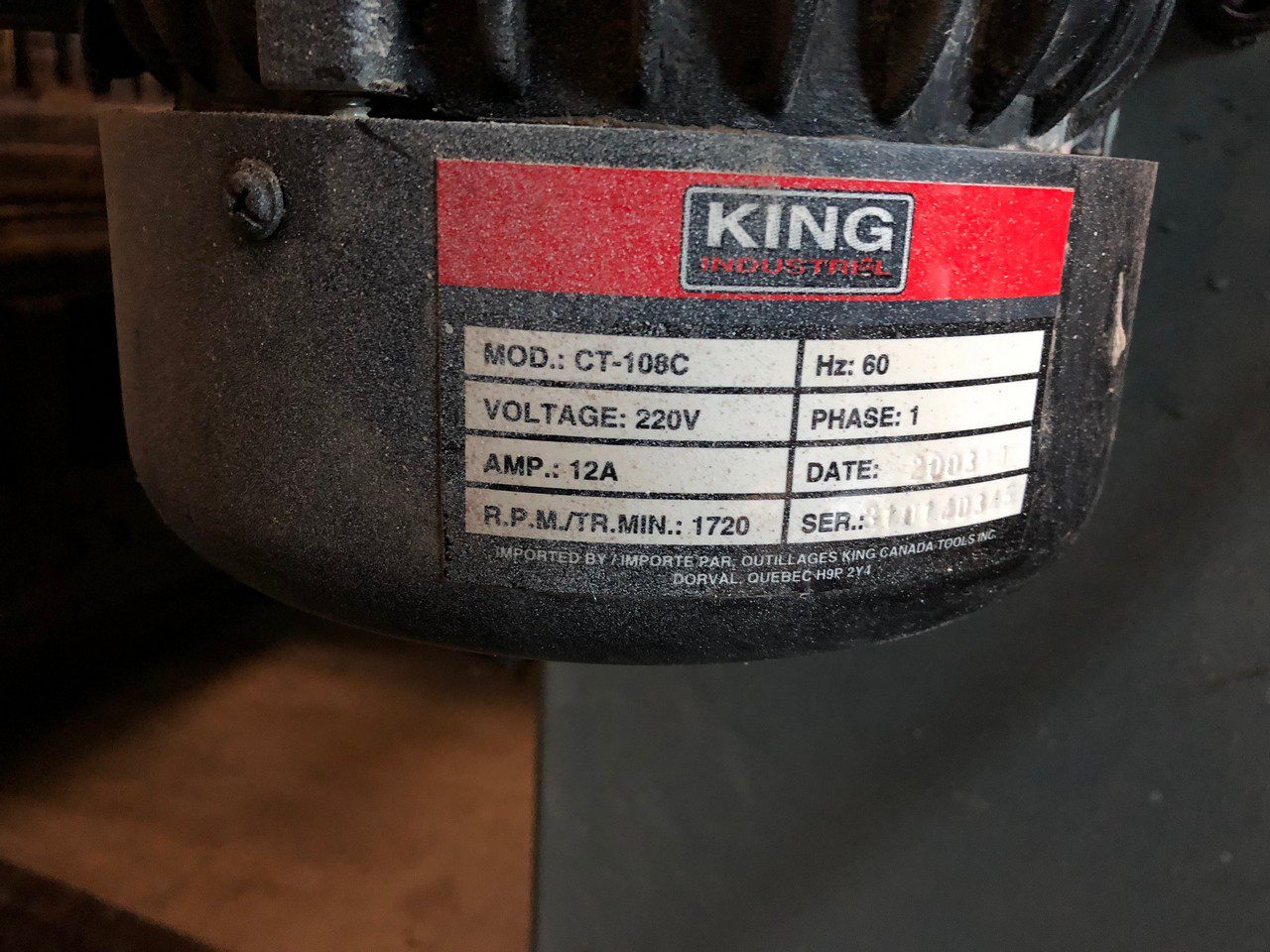

• Motor: 12 Amp. @ 220V
• Voltage: 220V, 1 Phase, 60 Hz
• Assembled Dimensions (Lxwxh)/Weight: 63-1/4″ X 23″ X 41″ / 363 Lbs
• Package Dimensions (Lxwxh)/Weight: 59-1/2″ X 22-3/4″ X 43-5/8″ / 462 Lbs

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
