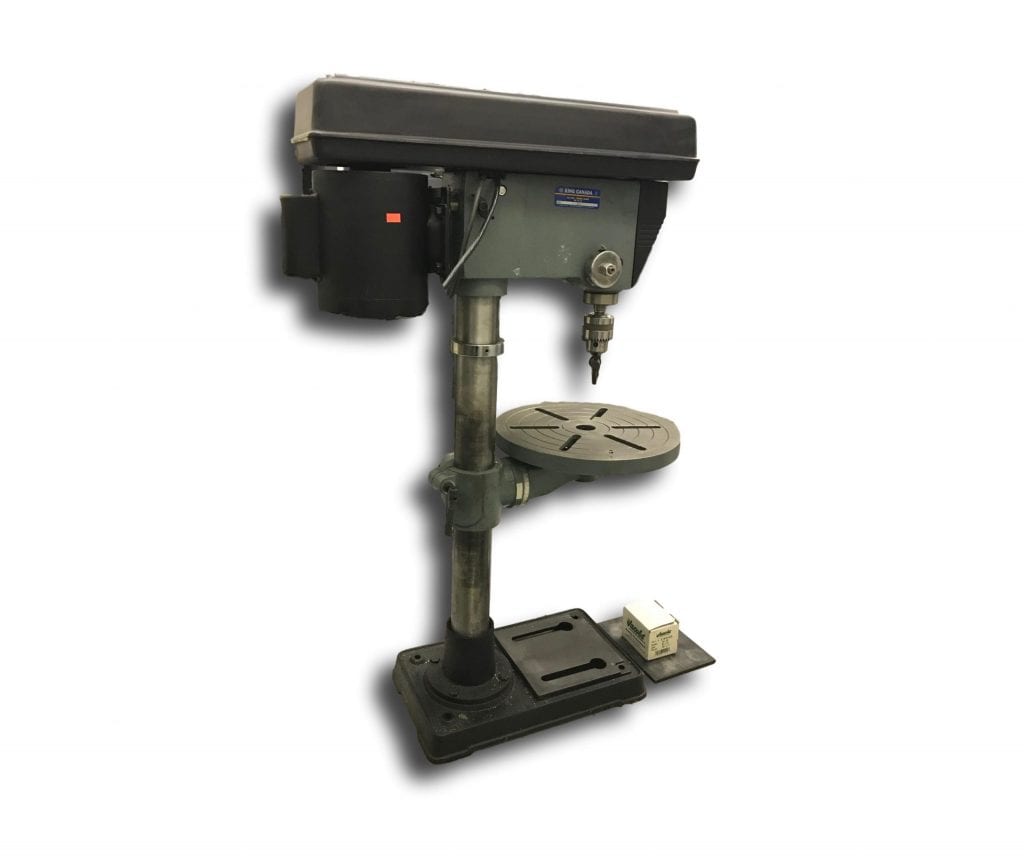

King Canada KC-117C 16 Speed 15” Bench Drill Press

Features:

• Spindle is supported by high quality ball bearings
• Cast-iron pulleys reduce vibrations
• Comes with non-slip rubber feed handles
• 45° tilting table for angular drilling
• Locking depth stop for accurate repetitive blind hole drilling
• 16 speeds
• Light socket incorporated into drill press head (standard light bulb not included)
• Comes with 5/8” drill chuck and key

Specifications:

• MODEL: KC-117C
• CHUCK SIZE: 5/8″
• SWING: 15″
• STROKE: 3-1/8″
• MAX. DISTANCE CHUCK TO TABLE:   13″
• MAX. DISTANCE CHUCK TO BASE:   23″
• TABLE SIZE:   13-5/8″
• SPINDLE TAPERMT:    #2
• QUILL DIAMETER:   60mm
• SPEEDS (RPM):   16 (210 – 3,670)
• MOTOR:   10.5 Amp.
• VOLTAGE:   110V, 1 phase, 60 Hz
• DIMENSIONS (LXWXH): 13-5/8″ x 25″ x 42″
•  WEIGHT:  143 lbs

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction Manual Available.
