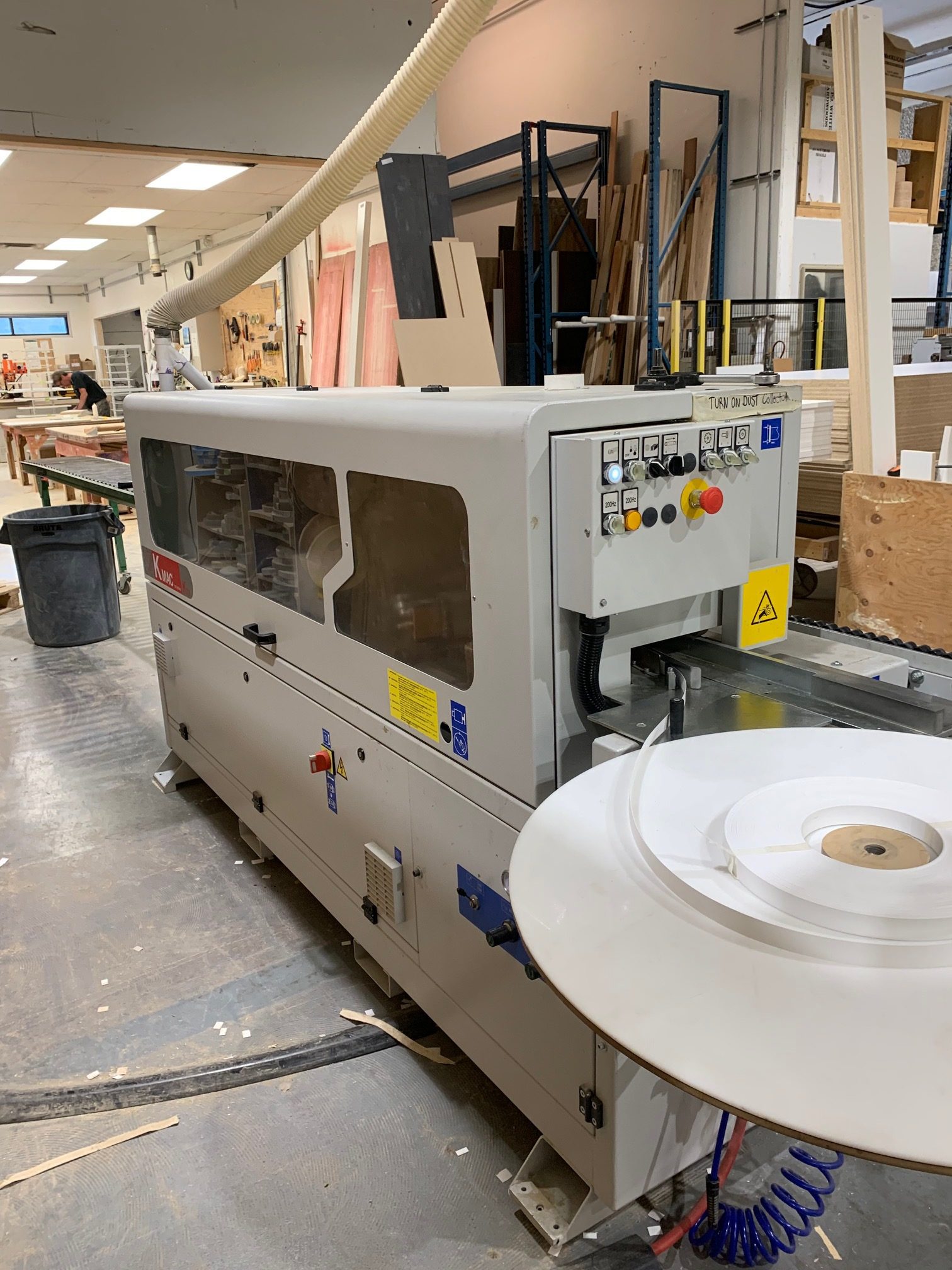

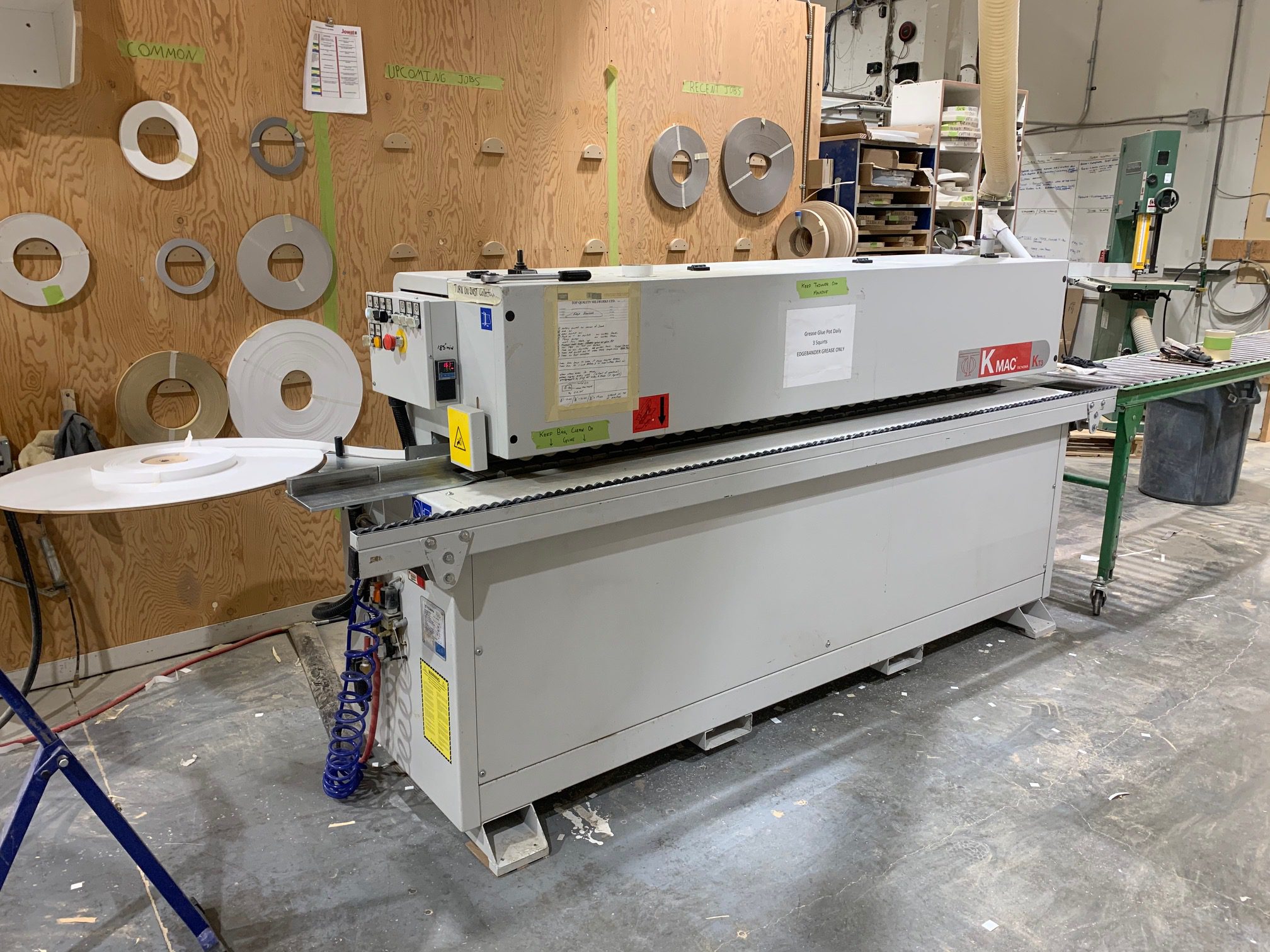

Kmac Tecnoma KT3 Edgebander

Specifications

• 230 V
• 3 Phase
• 30 A
  • Mfg Year: 2008
  • Panel Thickness: min. 8mm – max. 40mm
  • Panel standout from conveyer: 22.5mm
  • Standard feed speed: 8mt/min.
  • Feed power motor: .75 HP
  • Minimum Operating Width: 60mm
  • Minimum Panel Length: 250mm
  • Minimum edgeband thickness coil: 0.4mm
  • Maximum edgeband thickness coil: 3mm
  • Edgeband height: Panel thickness + 4mm
  • Centralized Dust extraction: Two 50mm diameter outlets
  • Processing unit height adjustment: Automatic with top pressure beam

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
