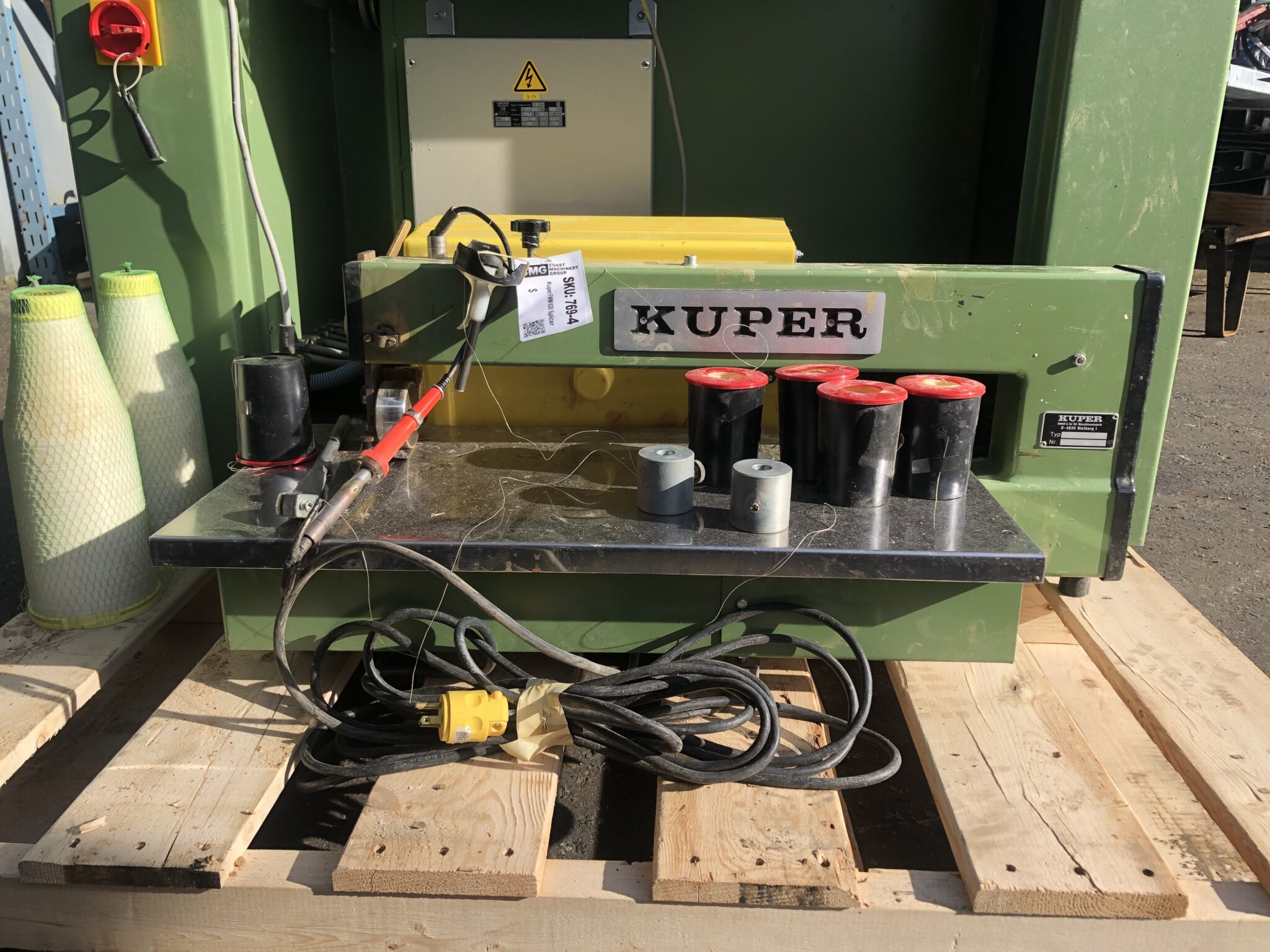

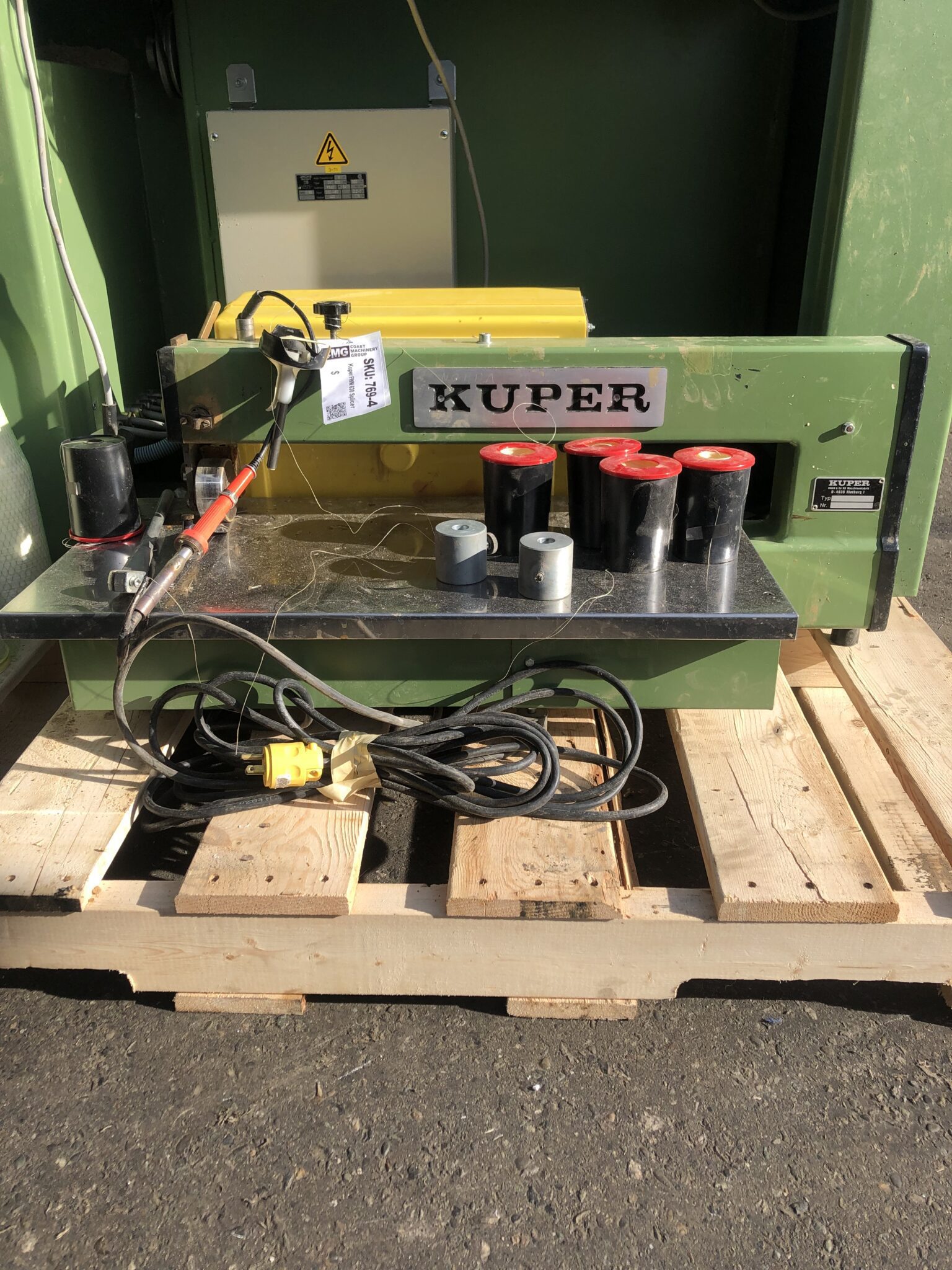

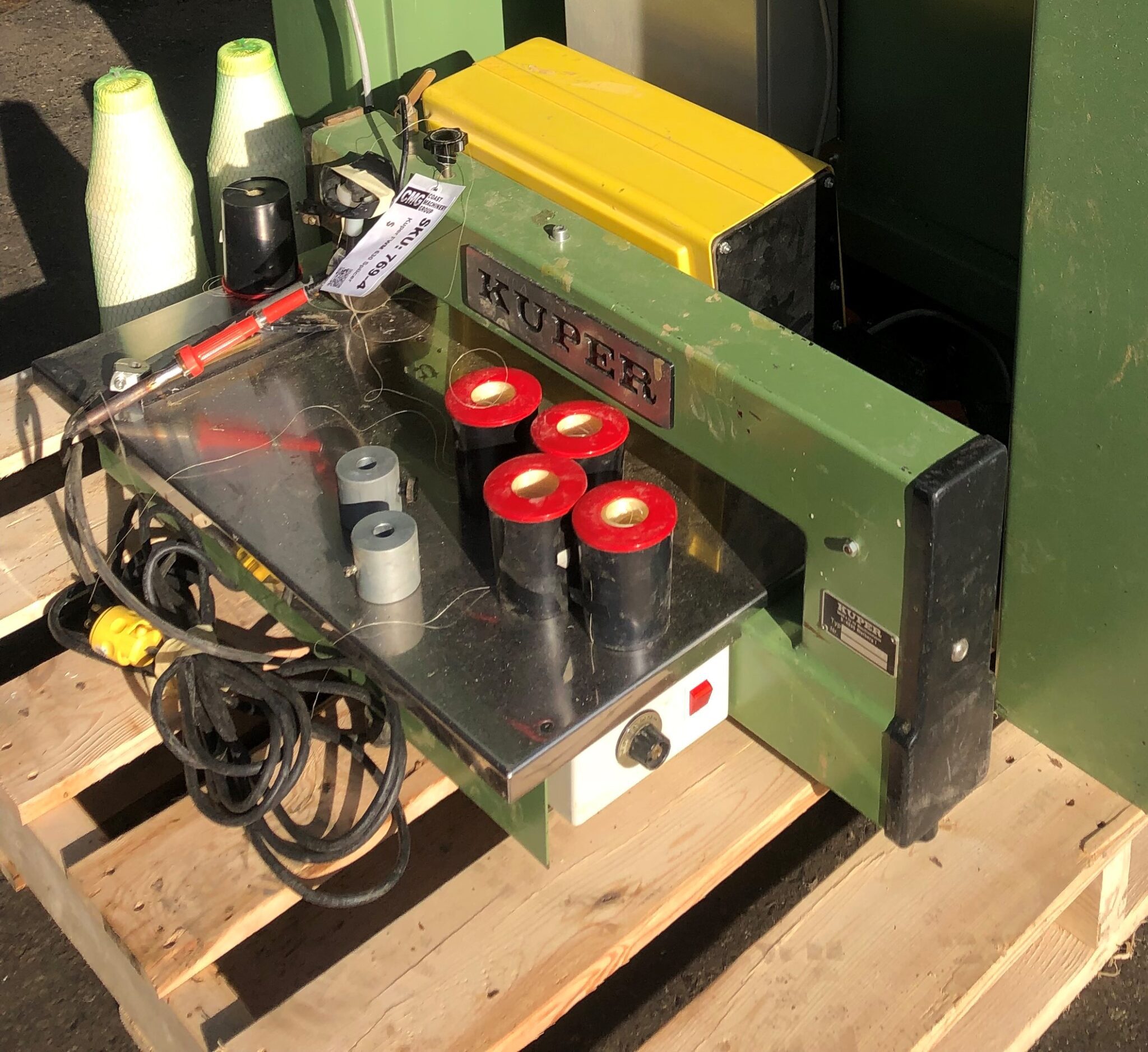

Kuper FWM 630 Stitcher

Specifications

• Brand: Kuper
• Model: FWM 630
• Veneer thickness: approx: 0,4 – 2,0
• Space required: 890 x 365 x 500mm
• Throat depth: 630 mm
• Feed speed: approx 7m/min

Additional Specs

The KUPER FWM 630 is the ideal machine for smaller veneer quantities. It features the technical advantages of all zig-zag machines made by KUPER: For example the discs with tolerance compensating mechanism.

Function
A special KUPER glue thread applied in zig-zag fashion guarantees a completely firm and tight joint. The glue thread is laid inside during the pressing which saves the time consuming sanding off of the glueing medium.

Advantages at a glance
– flexible location
– simple operation
– discs with tolerance compensating mechanism
– 8-step switch for regulation of heating pow

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
