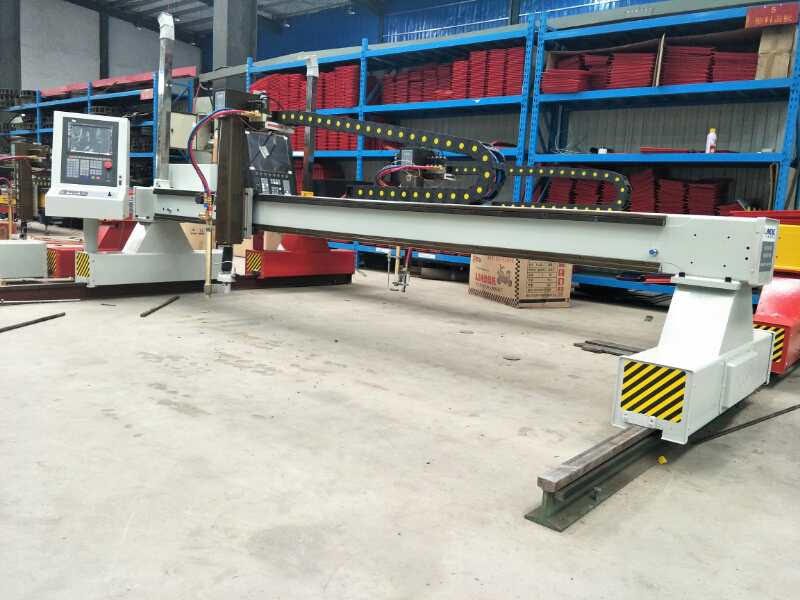

Lansun CNC Plasma/Torch Gantry 11’6″ x 46′

Specifications:

• 8’3″ x 40′ Cutting Capability
• 3 Phase
• BRAND NEW
• Model : ZLQ-10A
• Effective Cutting Size: 2500*12000mm
• CNC Torch: One Flame Cutting Torch Set and One Set of Plasma Cutting Torch Set
• Dual Drive
• Gearbox: German Made Neugart Technical Planet

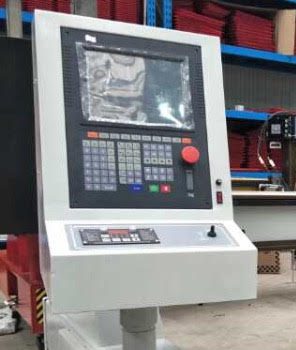

• CNC Controller: Beijing START CC-M3
• Torch Height Controller:
• Automatic Arc Voltage Height Controller for Plasma; Manual Electric Height Controller for Flame Cutting
• Nesting Software: FastCAM Professional 2 from Australian
• Includes Optonal Plasma Source: 3 LGK-200A 3 for Cutting Thickness of Carbon Steel up to 25mm, Stainless Steel up to 20mm

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
