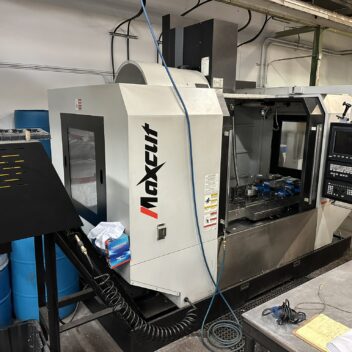

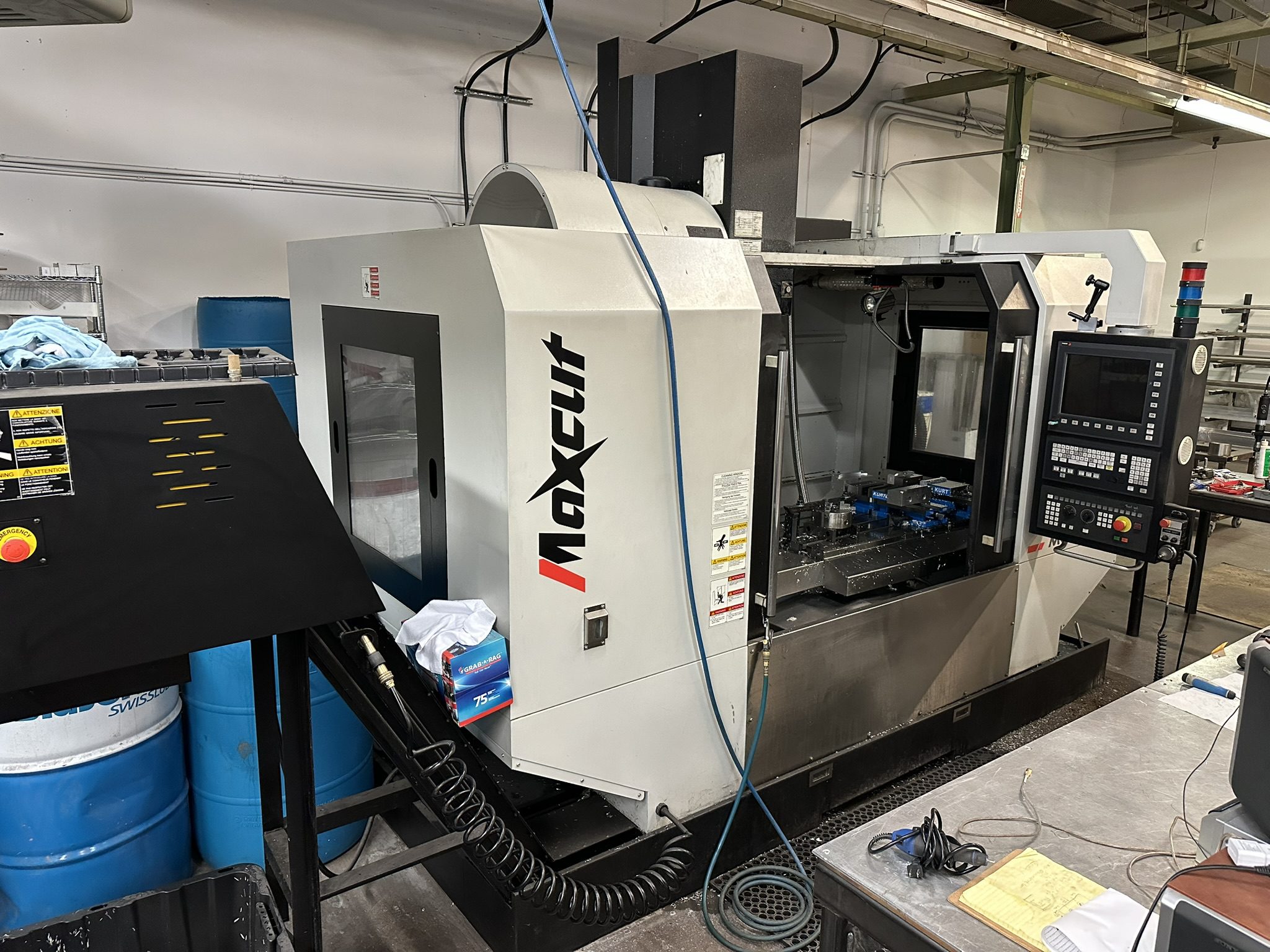

Maxcut VM-1000 CNC Mill

Specifications

• Model: VM-1100
• S/N: 1723321989
• 400 V (Transformer can be made available for any voltage)
• Full Load Current: 61 A
• 3 Phase
• Mfg Year: 2017
• Table Height: 840 mm (33 “)
• Table Loading Capacity: 800 kgs  (1760 lbs)
• X Travel: 1120 mm (44″
• Y-Travel:635 mm (25″)
• Z-Travel: 602 mm (23.7″)

Spindle

• Center to Column: 675 mm (26.58″)
• Nose to Table: 115-717 mm (4.5″ – 28.25″)
• Motor: 15/20 hp
• X Axis Motor Torque: 14.84 Nm
• Y Axis Motor Torque: 14.84 Nm
• Z Axis Motor Torque: 27.34 Nm
• Coolant Pump Motor: 3/4 hp

Arm Style ATC

• Number of Tools: 24
• Tool Taper: CAT 40
• Tool Select by Shortest Path: Bi-direcitonal
• Max. Tool Weight: 8.9 kgs (17.6 lbs)
• Max. Tool Diameter: 130 mm (5.12″)
• Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76″)
• Max. Tool Length: 300 mm (11.81″)

Performance

• Rapid Traverse X/Y/Z: 24 m/min (1000 ipm)
• Feed Rate X/Y/Z: 15 m/min (600 ipm)
• Positioning Accuracy: +/- 0.005 mm (+/- 0.0002 in.)
• Repeatability: +/- 0.002 mm (+/- 0.00008 in.)
• Dimensions & Weights
• Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.)
• Machine Weight: 5000 kg
