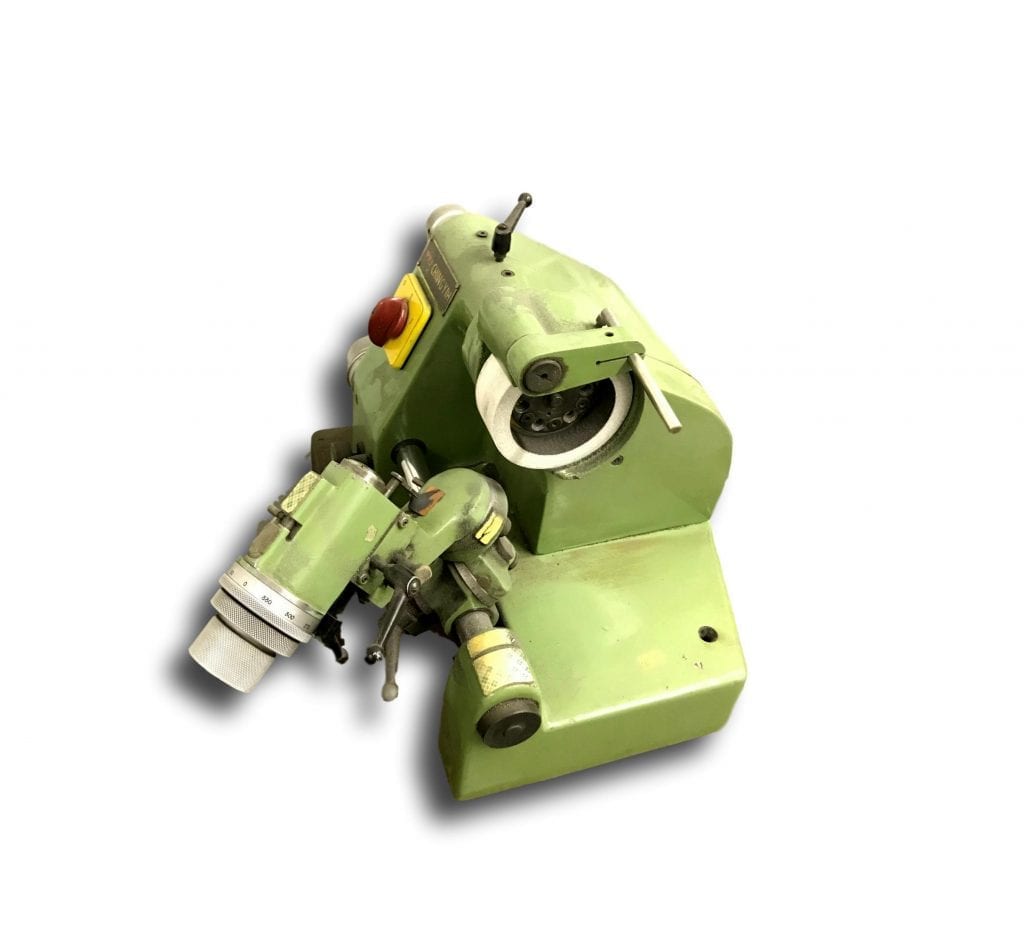

Michaellin Tools Universal Cutter Grinder Model U 2

Features and Specifications:

For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiused cutters or negative taper angle of cutters. Indexing is provided  at 24 positions so that any particular angle or shape can be obtained, 360°  or 180°  rotation is possible.For grinding End Mills, twist Drill, Lathe Tools, only replace the attachment to the index head without any complex setup.

• Max. collect capacity:  Φ18 mm
• Max. grinding diameter:  Φ25 mm
• Taper Angle:   0° ~180°
• Relief Angle:   0° ~45°
• Negative Angle:   0° ~25°
• Grinding Spindle:   6000 rpm
• Cup grinding wheel:  100 x 50 x 20mm
• Motor 1/3 HP
• 220V
• 50/60 Hz
• Net weight: 45 kgs
• Gross weight: 60 kgs
• Machine dimensions: 45 x 40 x 35 cm.
• Packing dimensions: 55 x 45 x 47 cm

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

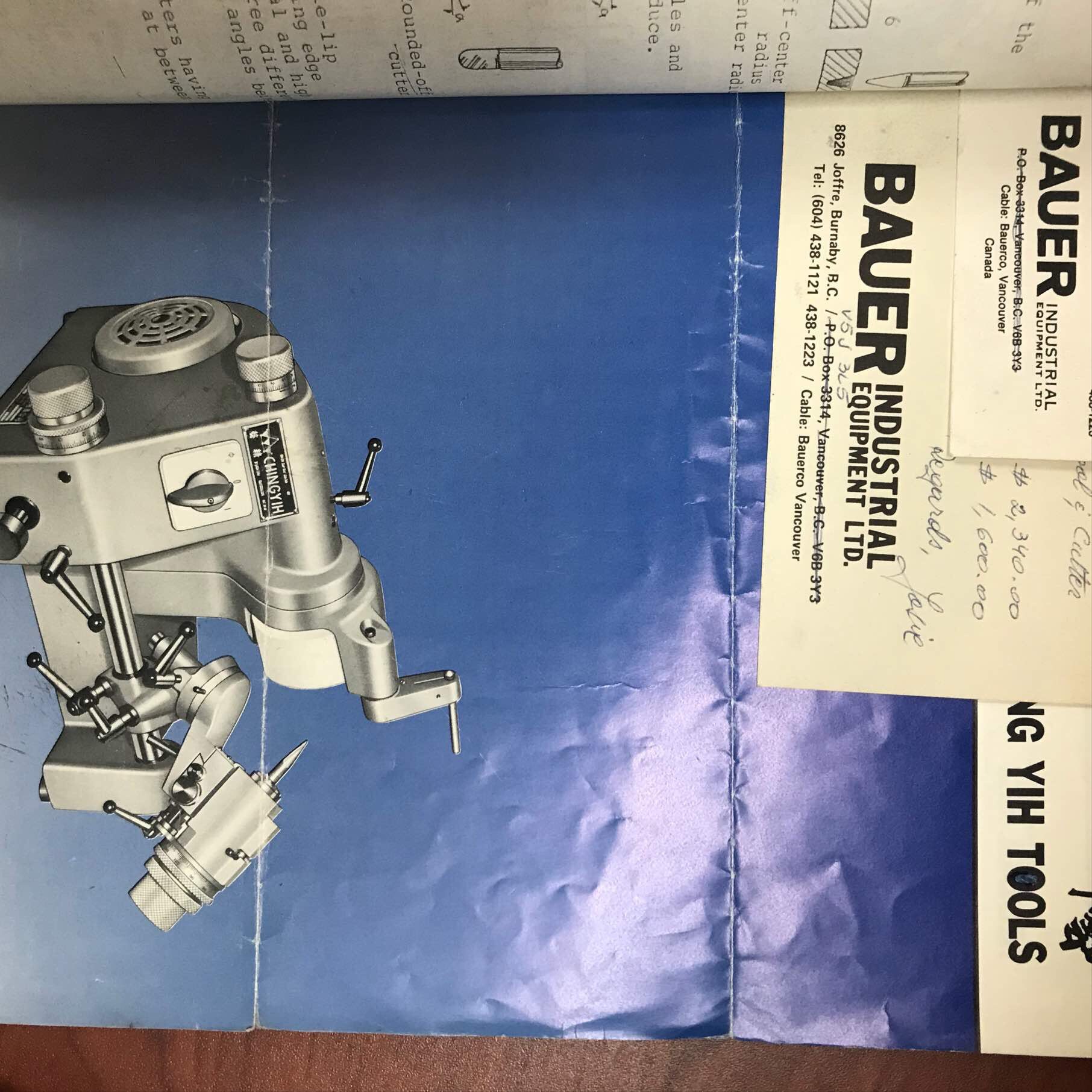

Note: Original (Hard) Copy of Operating Instruction Manual Available.
