SKU: 90000-286

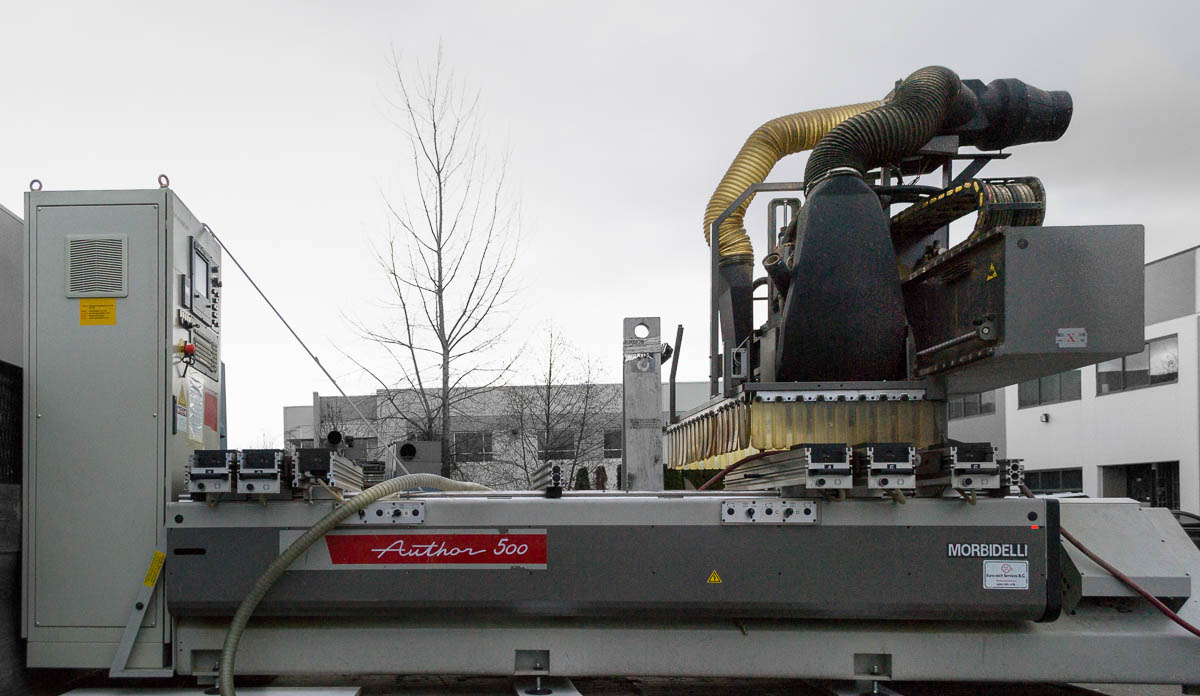

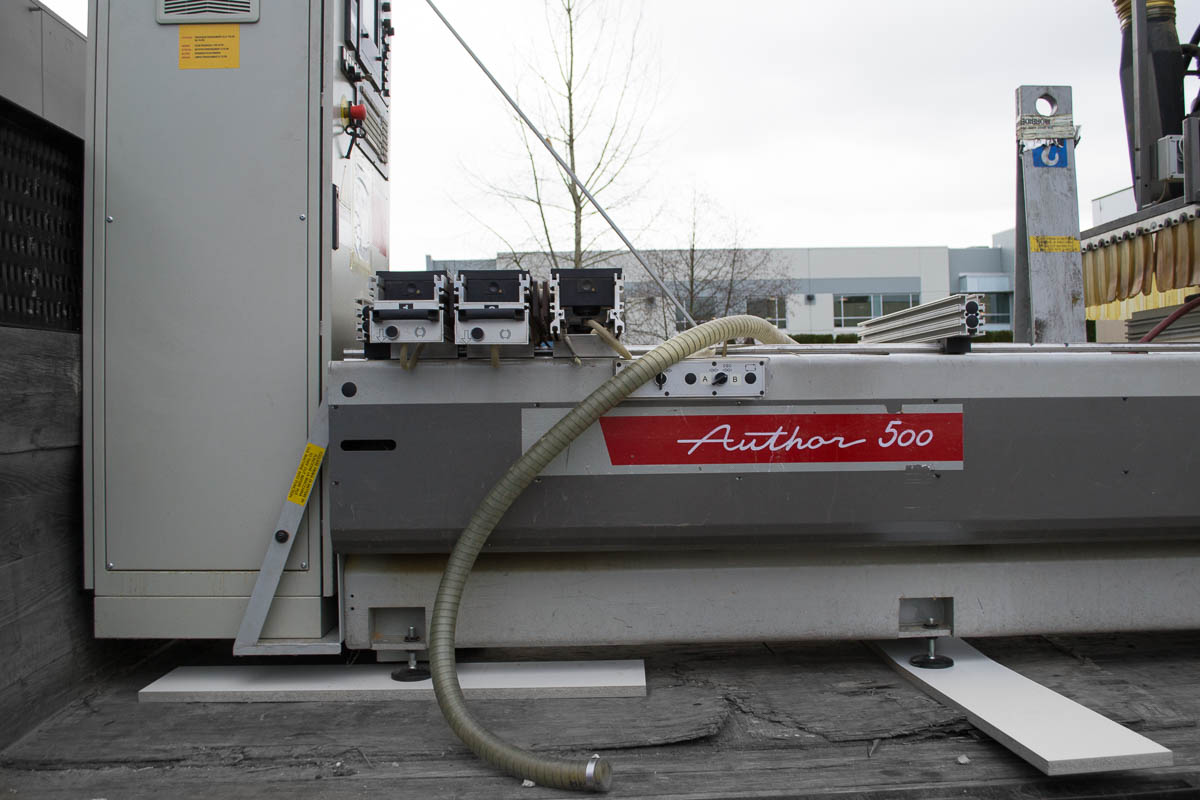

Morbidelli Author 500 CNC Router

Out of Stock But wait, we have similar products

14 Spindle L-Shaped Head Configuration, 6 x-axis spindles, 4 y-axis spindles and 4 Horizontal Spindles for 4 edge drilling. Machine has automatic tool changer with 4 iso chucks and 2 router motors

  • Working cap.: X-Axis = 139-3/8″ (3,540 mm), Y-axis = 48-3/8″ (1,230 mm) for routing and 39.6″ (1,008 mm) for boring, Z-axis 3.1″ (80 mm); positioning speed on X-axis is 213 FPM, Y-axis 131 FPM and Z-axis is 65 FPM.
  • Equipped with: (24) Independent vertical boring spindles forming a T-configuration with (9) spindles on the Xaxis and (9) spindles on the Y-axis. A total of (6) horizontal spindles for boring on all four edges of the panel, (4) on the X-axis (2 in ea. direction) and (2) are paralleled with the Y-axis (1 in ea. direction).
  • Work area: (6) Adjustable panel supports each with (3) vacuum cups; worktable setup for (2) independent working areas.
  • 9 HP Vertically mounted routers, inverter driven (FUJI) at 12,000 – 18,000 RPM, 10-position Static Automatic Tool Changer, both routers are ATC ready for, ISO-30 cones with collets.
  • (1) 3 HP – 7,200 RPM Grooving saw with 120 mm dia. blade cap. and with 90° rotation for grooving in both X- & Y-axis directions





Brand
Model
KW 20
Voltage
Phase
Serial

Out of stock?

We have similar machines in used Woodworking Machines, Contact our used machienery experts for more details.
