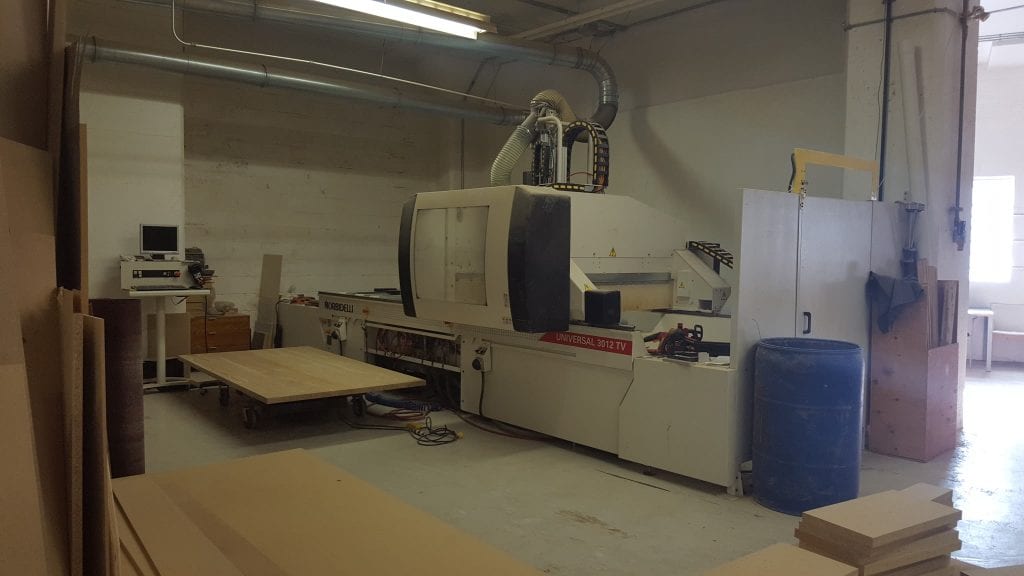

Features and Specifications:
- 10’x4’
- Tubeless Table
- 15HP S6 Router
- 12 pos. on-board TC
- 26 spindles drill unit
- X axis working area 3060 mm
- Y axis working area 1250 mm
- Stroke Z axis 200 mm
- Panel passage 130 mm
- Max independent vertical spindles 18 n.
- Max independent horizontal spindles 8 n.
- Boring head speed 6000 rpm
- Integrated Saw-blade diameter 120 mm
- Electrospindle 8,5 / 14 kW (S1)
- Max tools on the Tool Change Crib 32 n.
- Travel speed axes “X”,”Y”: 70 m/min – 60 m/min
- Linear speed axis “Z”: 15 m/min
- Nr. 6 movable work tables to support the panels
- Suction cups for each work table with vacuum system for the locking of the working piece
- Facilitated loading device through pneumatic bars assembled on the work tables that lift the pieces
- Nr. 1 vacuum pump 250 m3/h
- BORING UNITS Nr. 7 independent spindles for vertical boring in “X” direction
- No. 5 independent spindles for vertical boring in “Y” direction
- No. 4 spindles for horizontal boring in “X” direction
- Nr. 2 spindles for horizontal boring in “Y”direction
- ROUTING UNITS Nr. 1 electro-spindle in vertical position – automatic change of the tool – “C” VECTOR AXIS that allows to turn and 360° angle drive heads with rotation regulation in automatic by numerical control – motor power 8,5 KW – HSK 63
- OTHER WORKING UNITS Nr. Integrated saw unit to make grooves in “X” direction
- Rear tool changer magazine with nr. 10 positions
- Control and program system XILOG PLUS with the following features: – pc – screen colour – CD-ROM reader – keyboard
- Control of axes “X” – “Y” – “Z”
- Command board installed on a separated electrical cabinet to control the machine
- Separated electrical cabinet
- Weight machine (approx) 2100 kg
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
