Used Multicam 5000 Series CNC Router

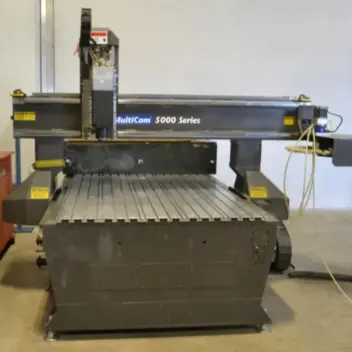

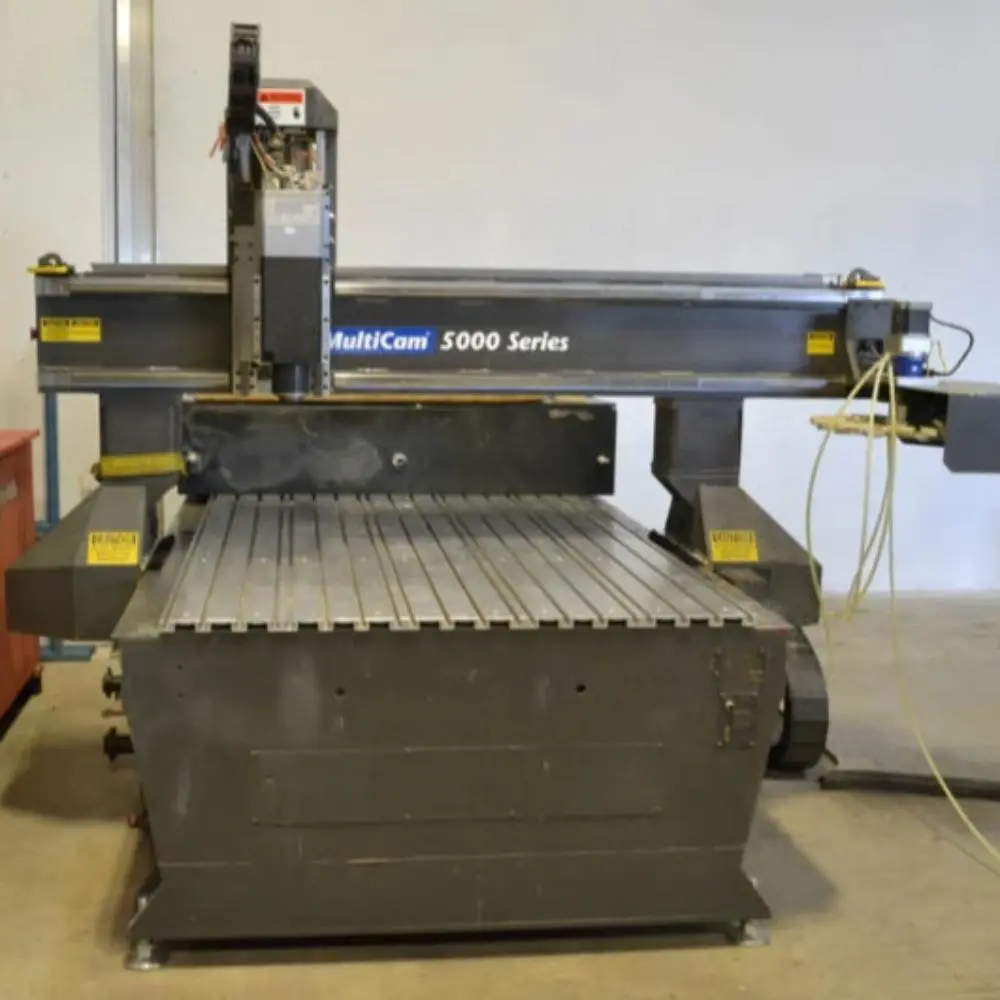

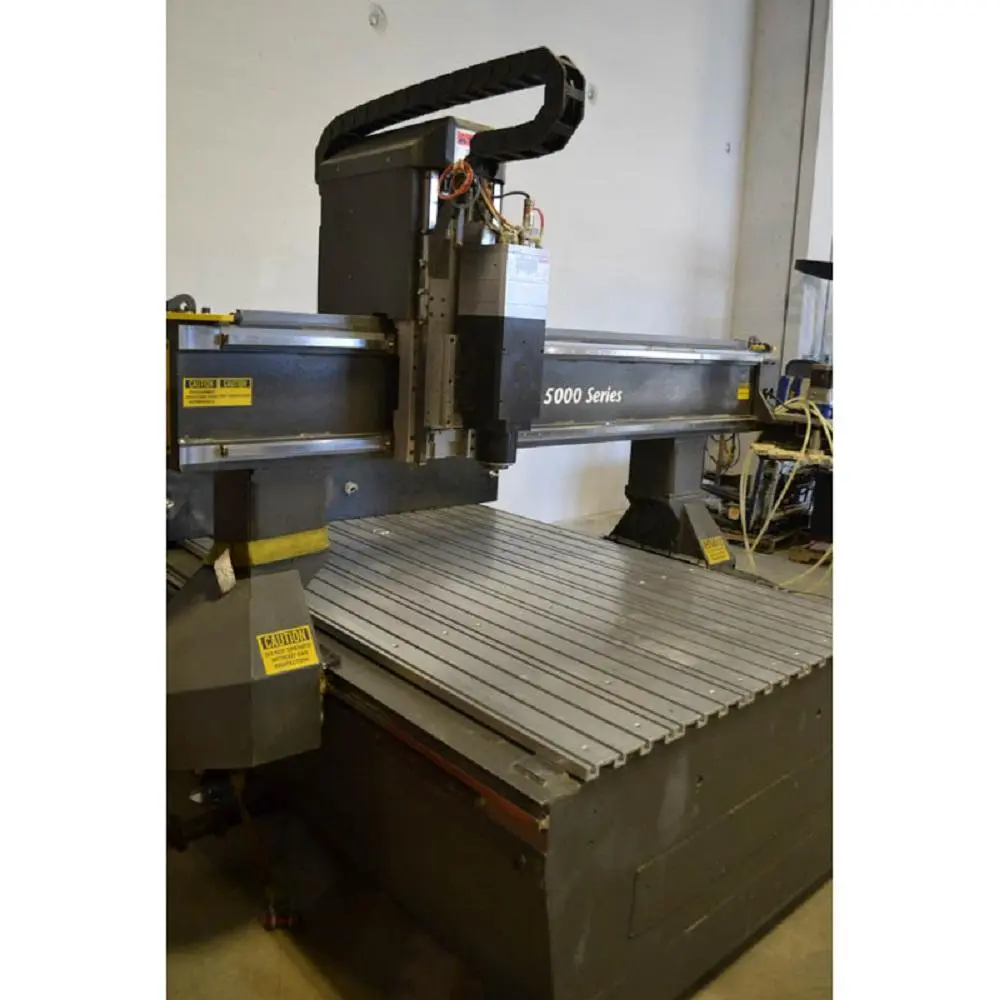

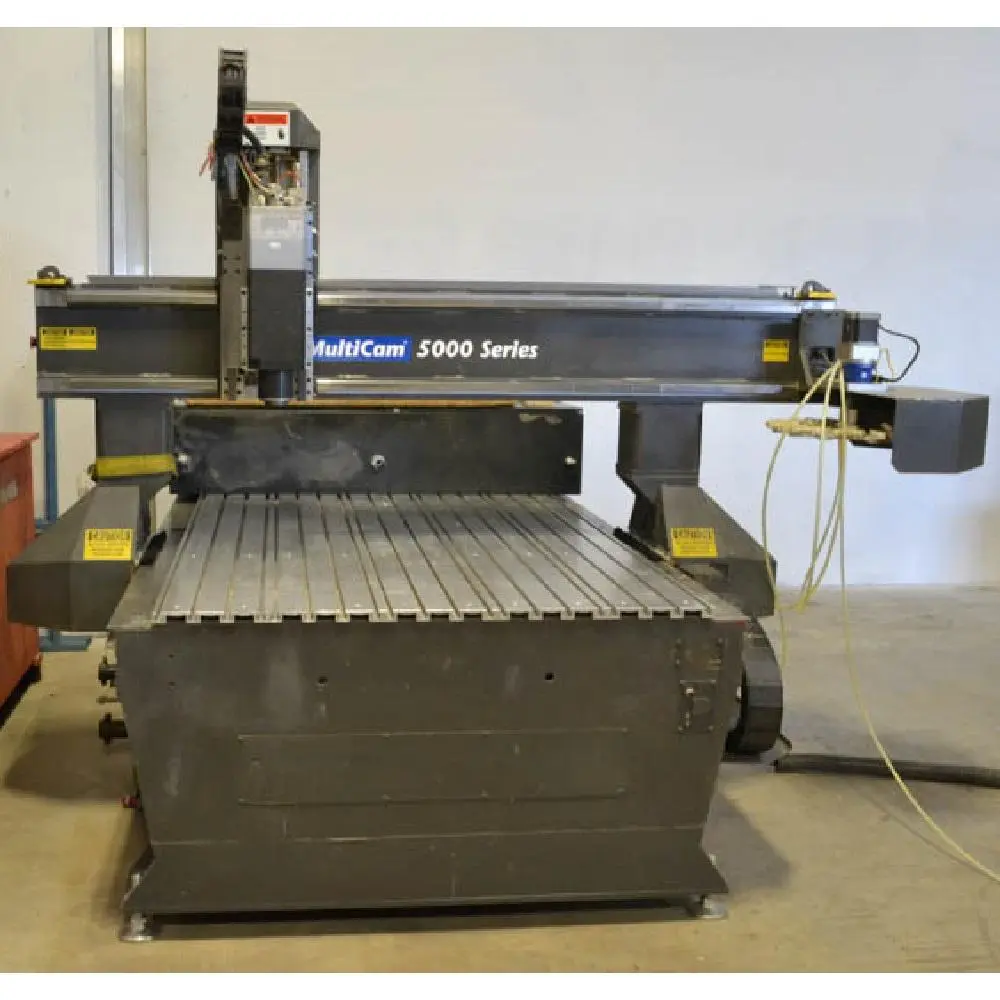

Multicam 5000 Series CNC Router

• Brand: Multicam
• Model: 5000 Series
• CNC Router

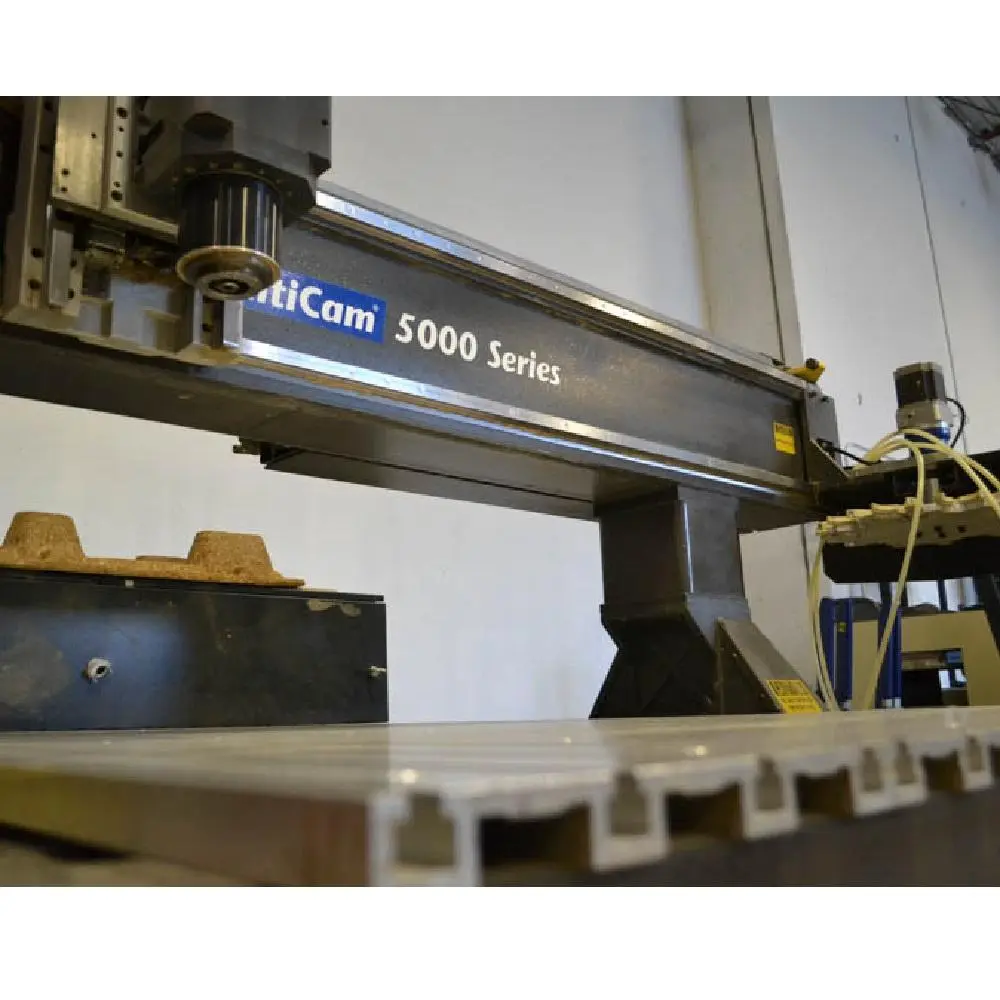

MultiCam’s 5000 Series CNC routers are extremely flexible machines. Designed for high-speed routing in a broad range of woodworking, plastic and non-ferrous metal applications, the 5000 Series is easily configured to meet most application requirements. Rigid all-steel construction and space saving, moving gantry design makes the 5000 Series a robust, commercial-grade machine designed for heavy-duty CNC routing

Manufacturer Specifications:

• Build 2008
• 5.5 – 20 HP

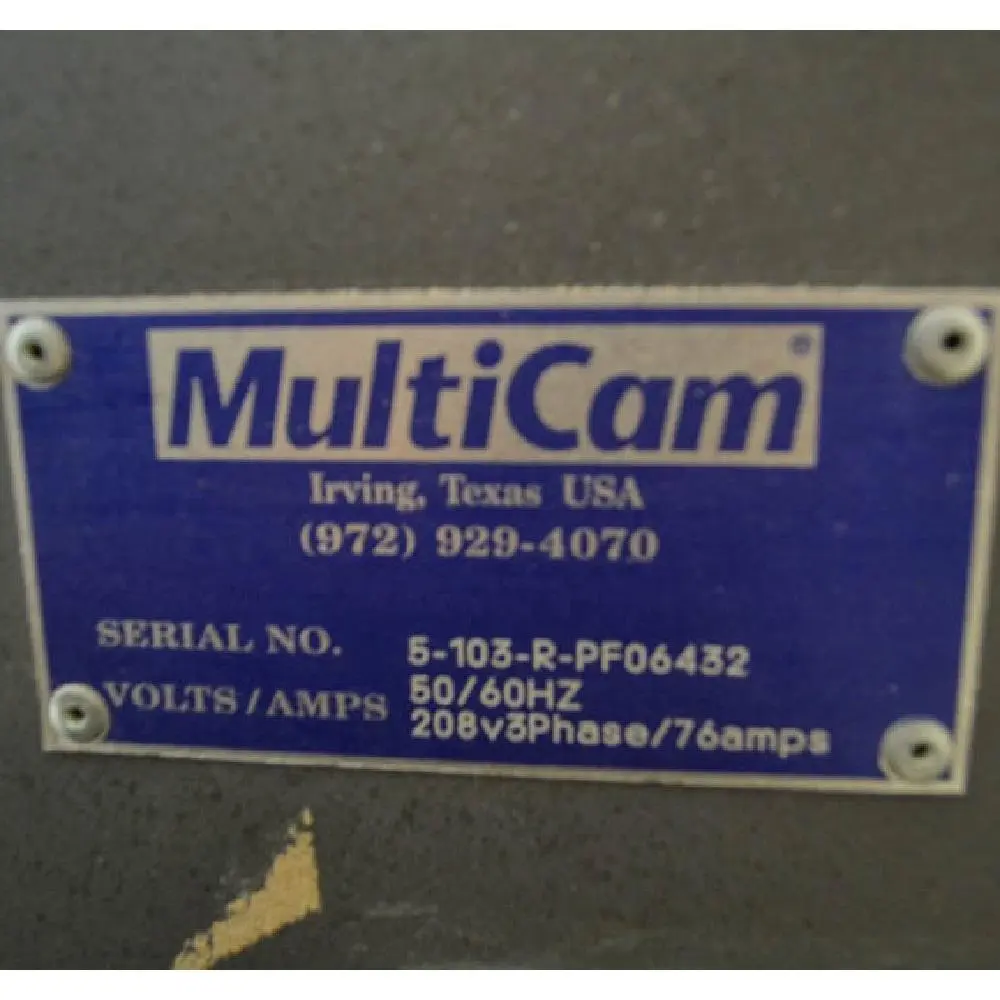

• 76 A
• 208 V
• 3-Phase

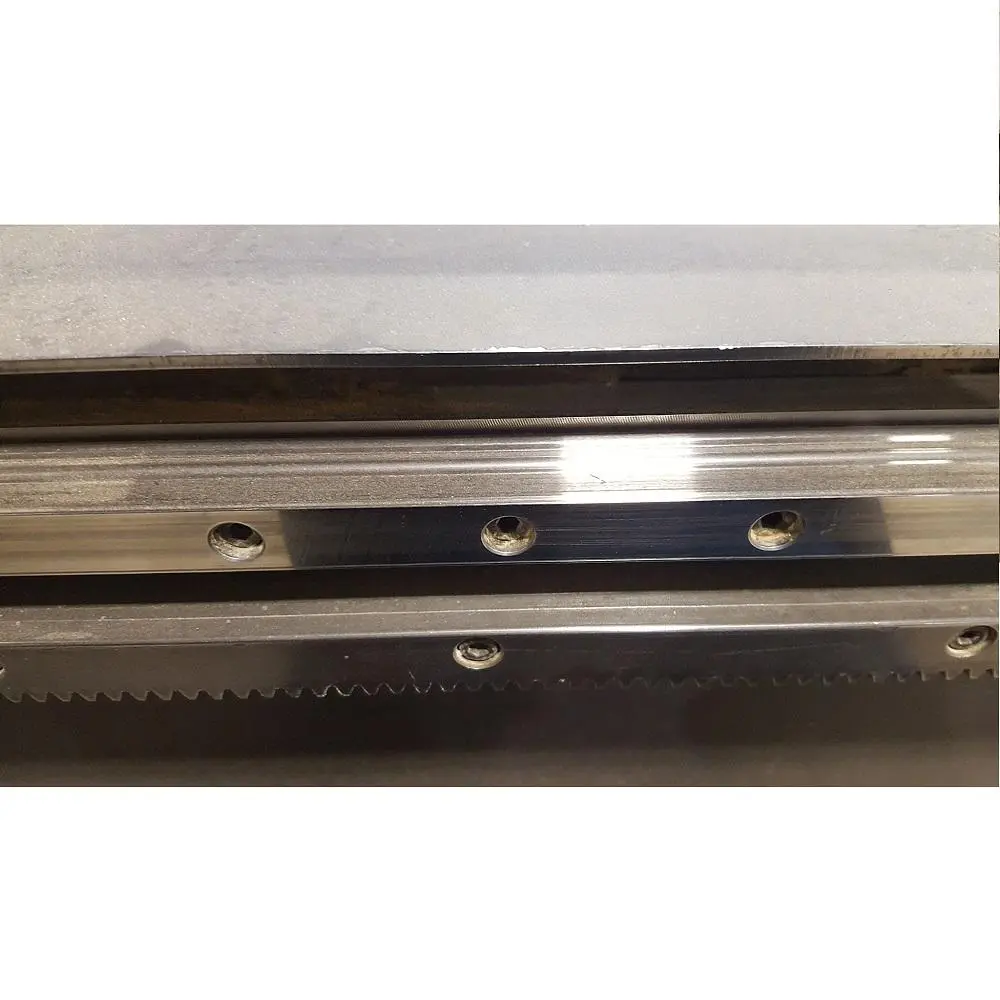

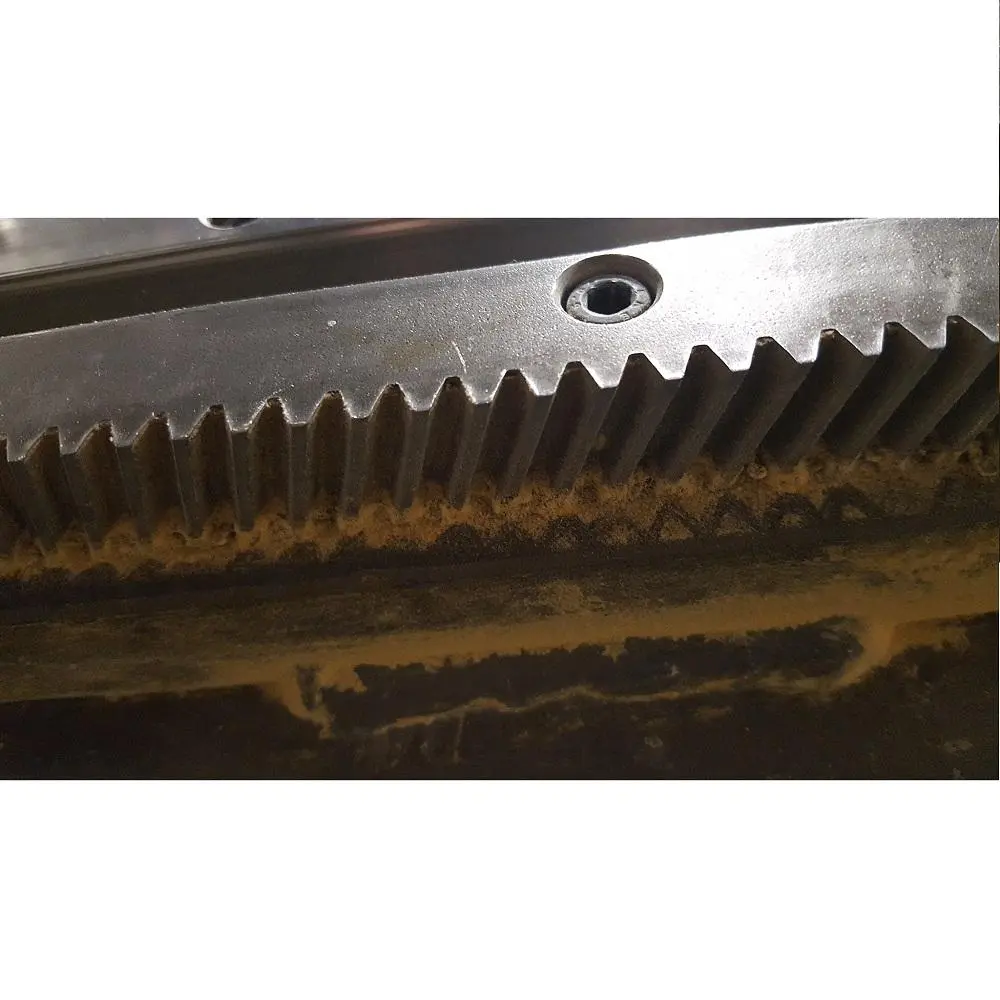

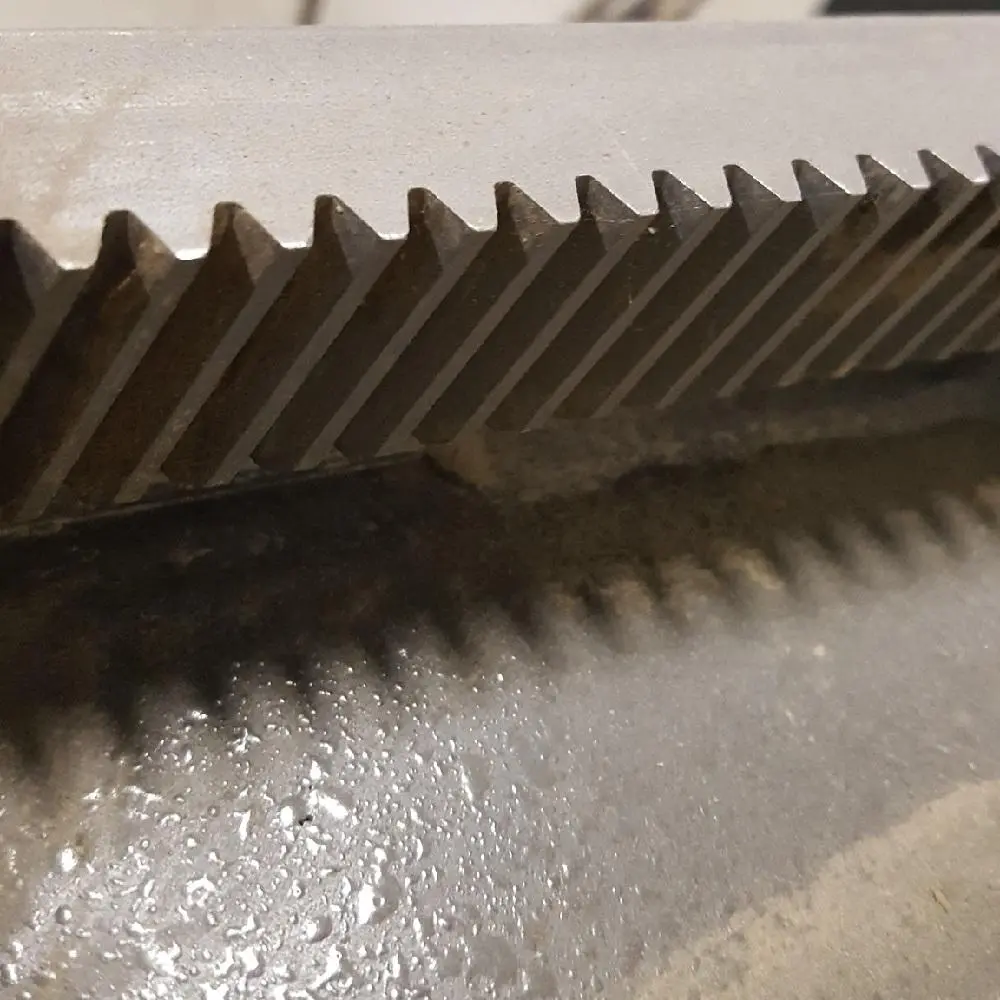

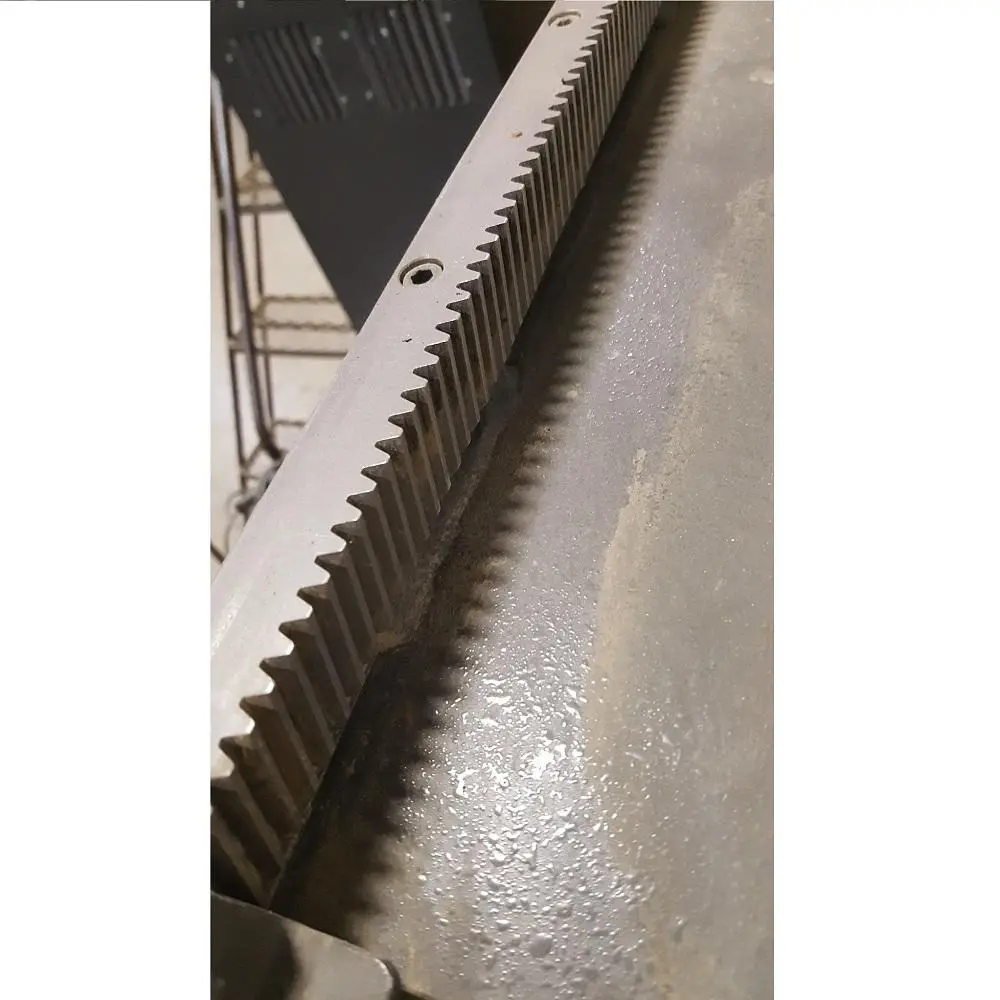

• 50” x 100” work area with AC brushless servos and helical rack

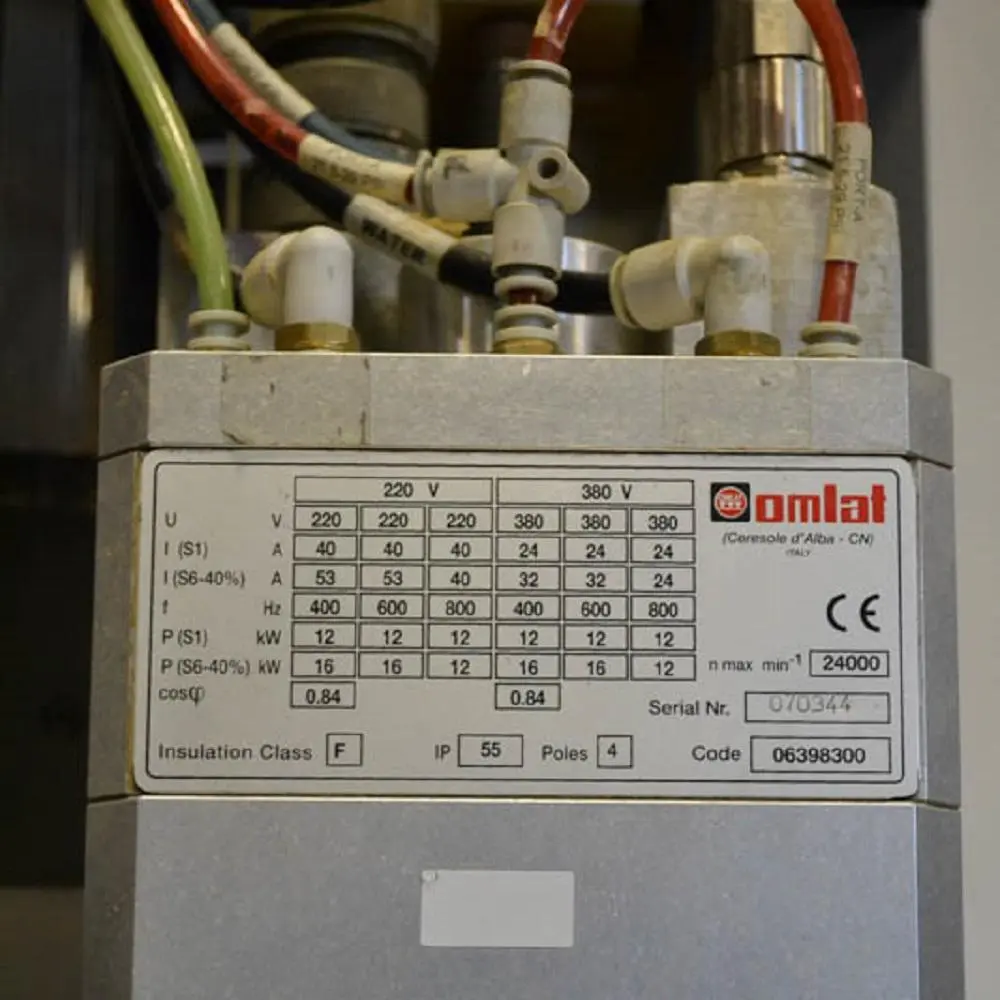

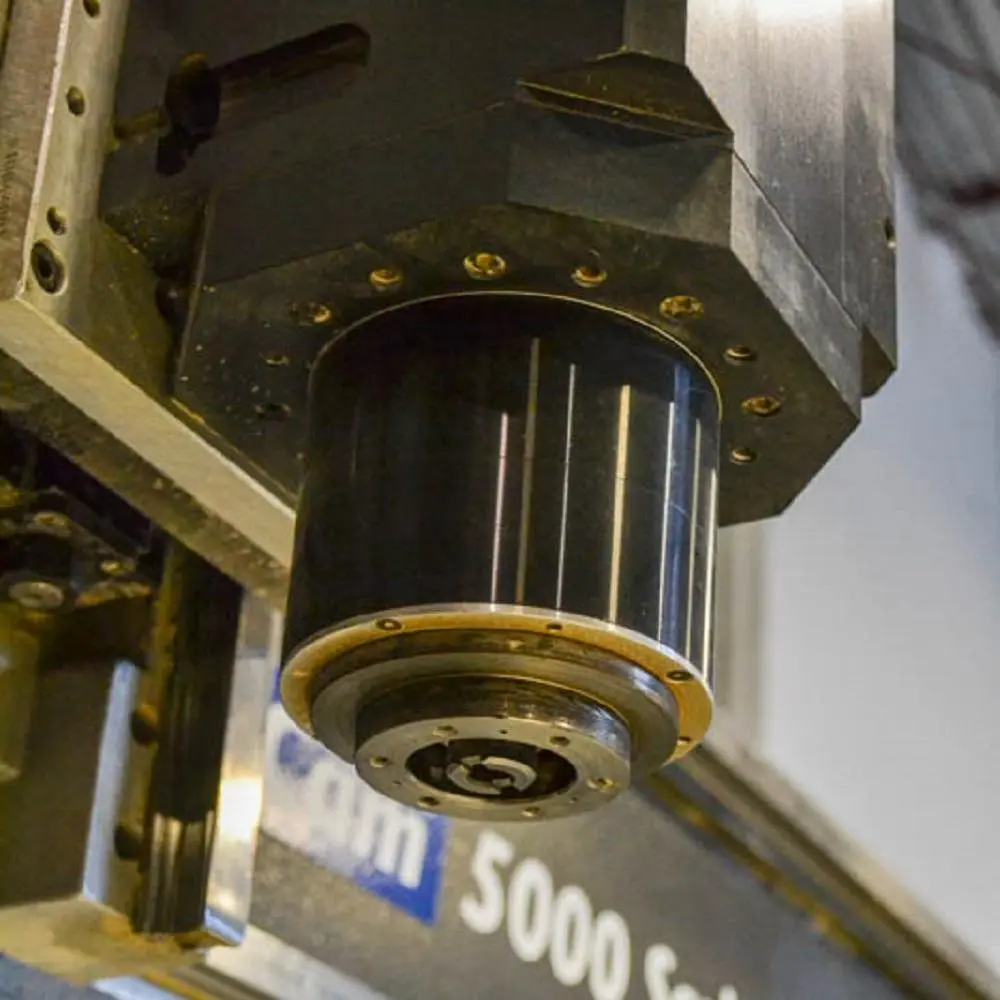

• Spindle – Omlat Delta 16 HP 4 pole HSK 63 Pneumatic chuck (ER 40 / 24,000 RPM)
• 16” Z axis clearance. 18” stroke

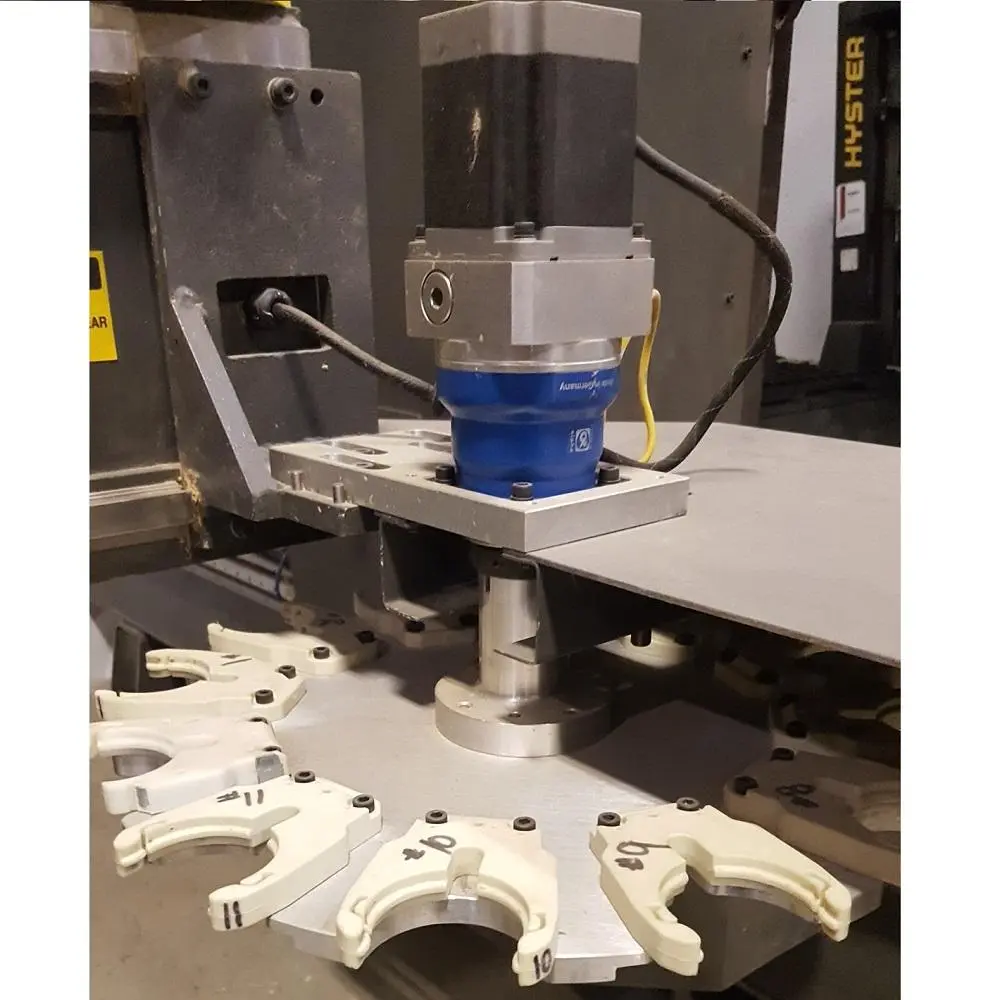

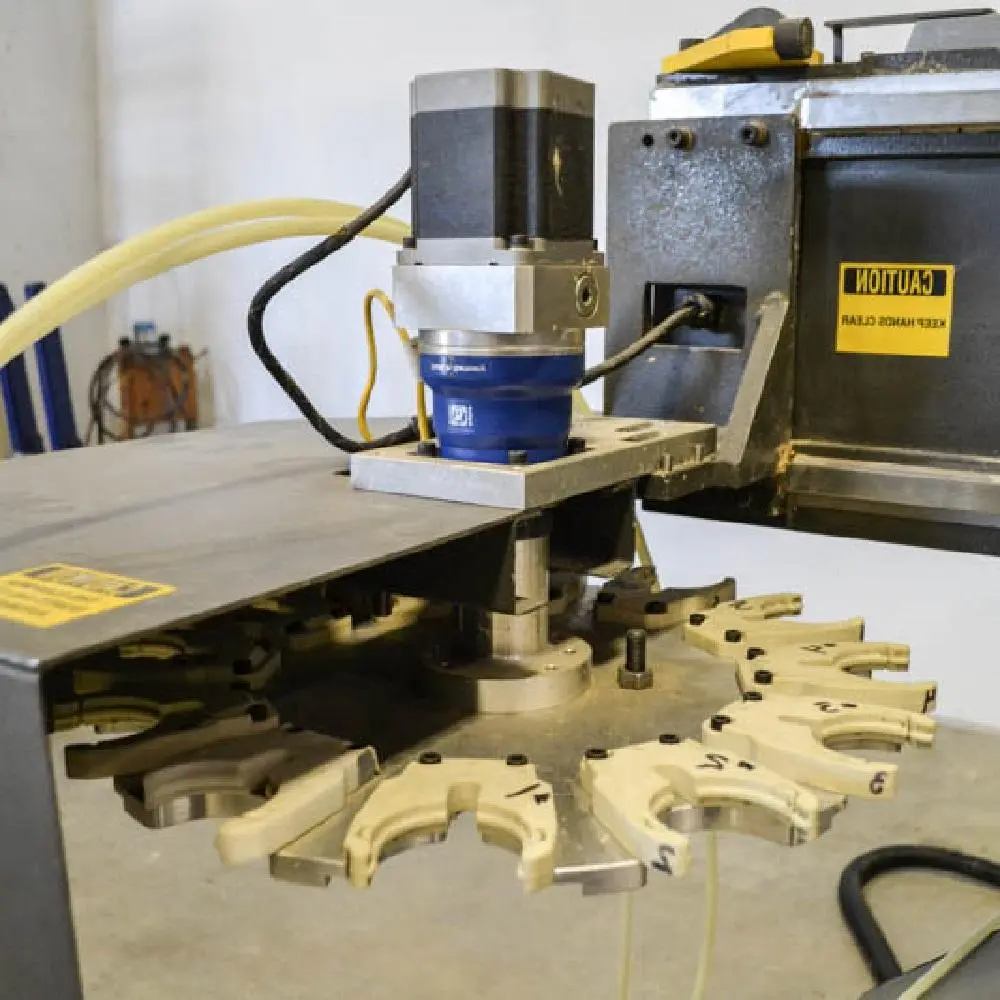

• 12 position rotary automatic tool changer
• Heat exchanger for liquid cooled spindle
• T- slot work table (no vacuum)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
