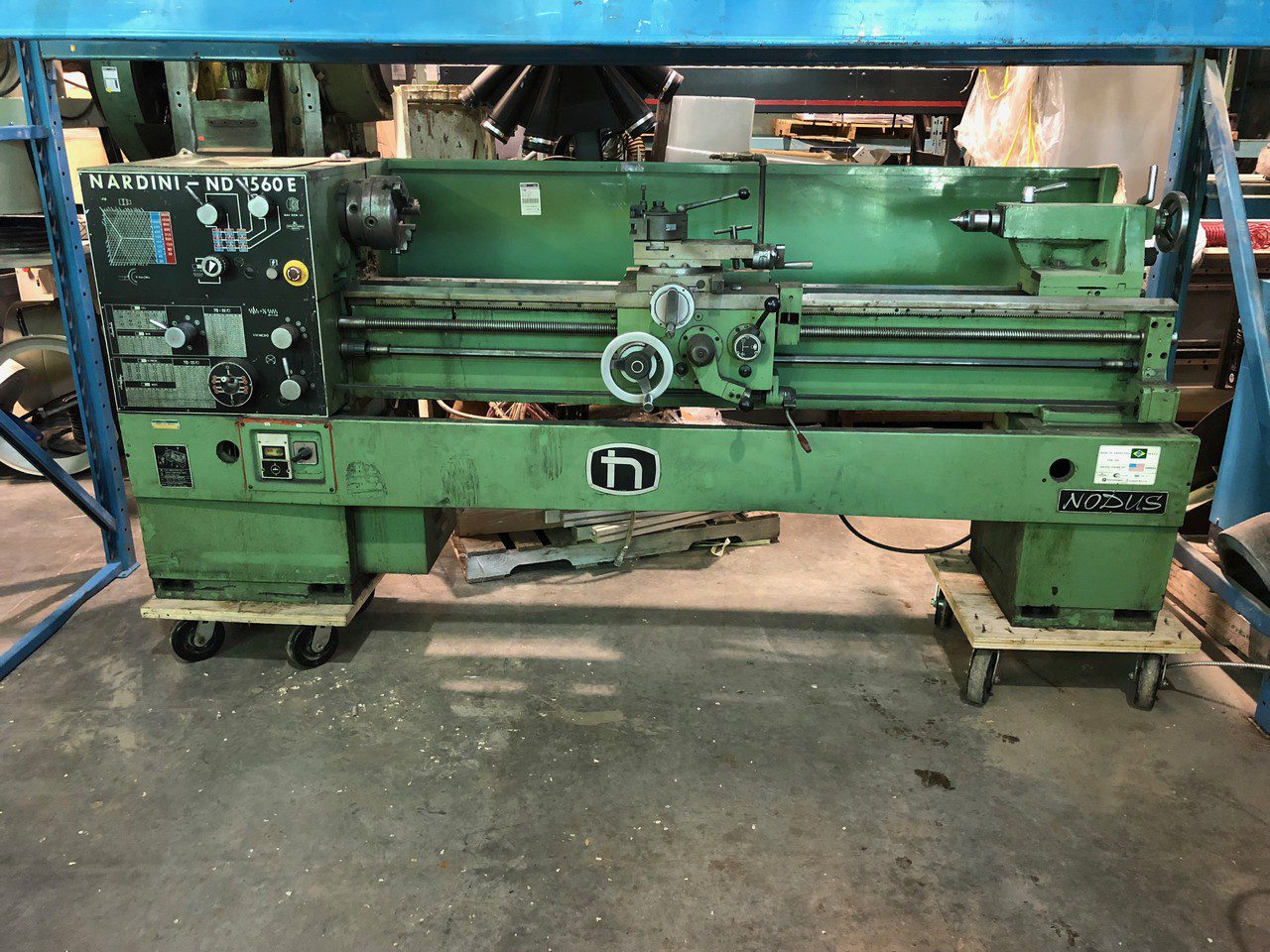

Nardini ND1560 E Engine Lathe

Features and Specifications:

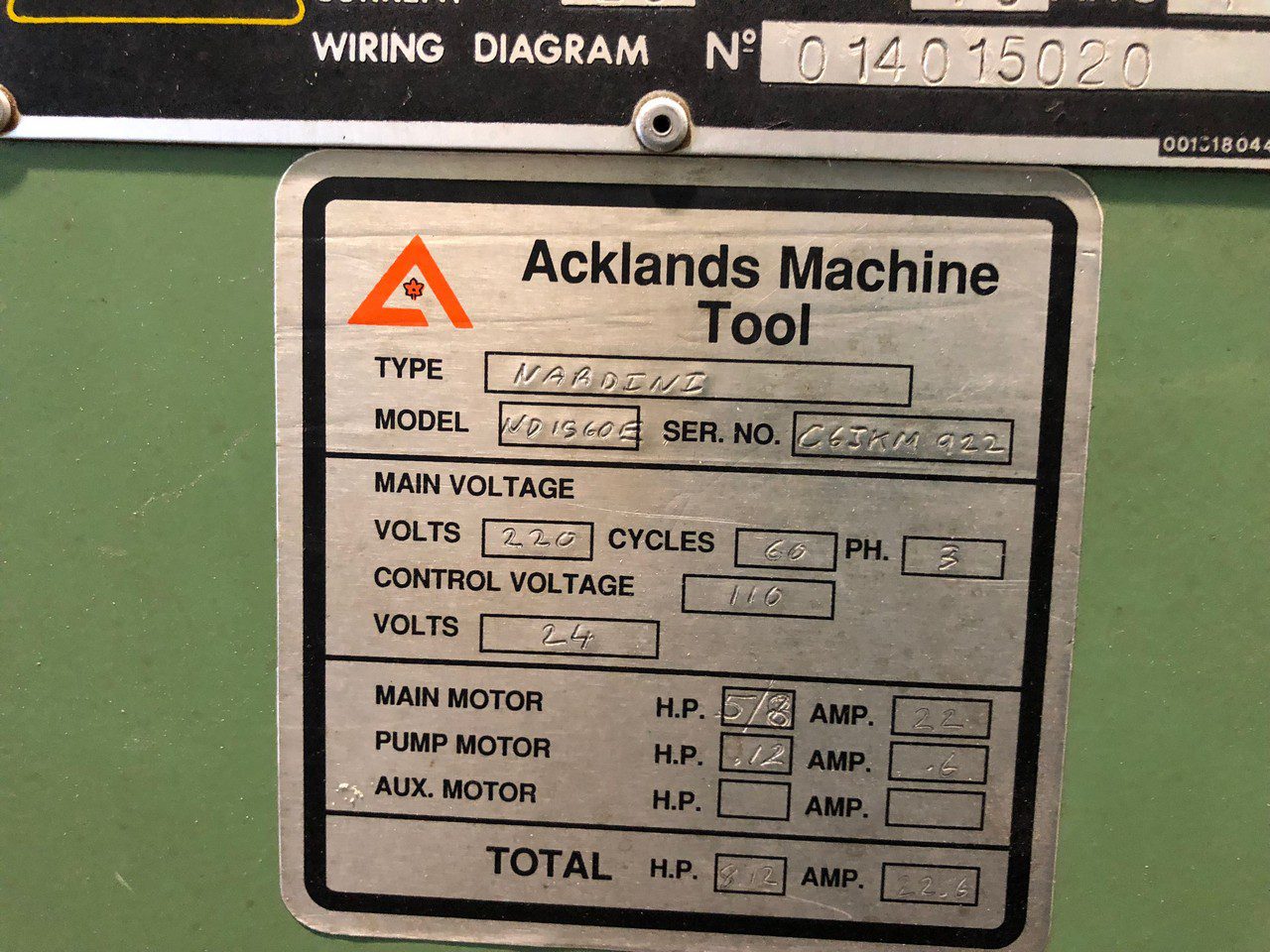

• MAIN MOTOR: 5/8HP
• PUMP MOTOR: .12HP
• Made In America
• 15″x 60″
• 220 V, 3 Phase, 25 A, 6.3 Kw and 60 Hz
• Maximum Swing Over Bed…………………………. 15-3/8″
• Maximum Swing Over Carriage…………………….. 8-5/8″
• Spindle Bore………………………………….. 2-1/32″
• Max. Distance Between Centers…………………… 60″
• Tailstock, Spindle Travel………………………. 8-1/2″
• Tailstock, Spindle Diameter…………………….. 2-3/8″
• Tailstock, Spindle Taper……………………….. # 4MT
• Spindle Speeds, Range………………………….. 25 to 2000 RPM
• Spindle Nose, Type…………………………….. D1-6
• Spindle Horsepower…………………………….. 7.5 HP
• Approximate Machine Weight……………………… 3,700 LBS

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Brochure Available.
