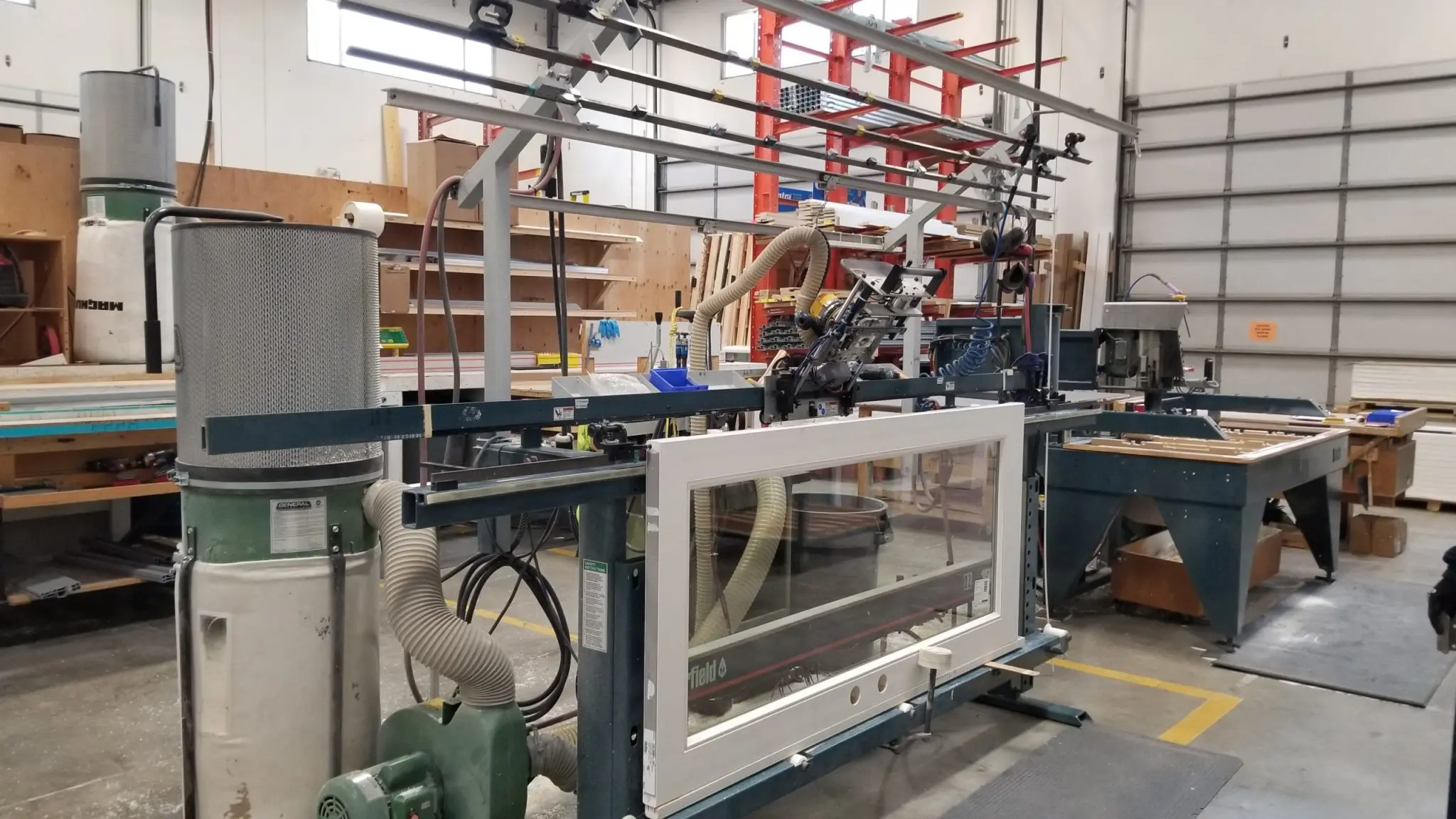

Norfield 350H Exterior Door & Jamb Hinge Routing Station

Out of Stock But wait, we have similar products

Features and Specifications:

The 350H has been designed to prep your exterior doors and jambs for hinges. It has the entire hinge routing capabilities of the Norfield Magnum at 1/4 of the price of a Magnum. Do the lite cutout and lock prep in your door lite machine, install the lite and then use the 350H to mortise and install the hinges on the door and jamb. It’s now ready for final assembly.

Another benefit is that the unit can be used to mortise jambs for that special hinge pattern or to reduce jamb inventory by making what you need just-in-time.

  • Machine doors up to 8 ft. tall and from 1 ft. to 3 ft. – 6 in. wide
  • Raised molding compatible
  • Includes one 8 ft. (for doors up to 8 ft.) integrated stop system bar. Additional bars can be purchased for quick change between pre-set hinge patterns
  • Pneumatic jamb lift adjustment to ensure a perfect alignment of jamb with the door
  • Self-centering butt router for easy hinge mortising
  • 3-1/2” to 5” hinge mortising
  • 30-second cycle time
  • 1-3/4 hp DeWalt router motor
  • 1/4” and 5/8” radius routing capability
  • Pneumatic jamb adjustment to ensure a perfect fit
  • Single point dust collection plumbing
  • Magnum-style hinge jamb routing
  • Quick-change index bar with integrated stop system for different hinge patterns
  • Quick-change setup for different hinge sizes
  • Door width 1’0” to 3’6”
  • Door height up to 8’0”
  • Door thickness 1-3/8” to 2-1/4”
  • Hinge specs 3-1/2” to 5”
  • Jamb width 2-1/2” to 10-1/2”
  • Jamb length up to 8’0”
  • Jamb thickness 1/2” to 1-1/2”
  • Stop thickness 1/2” maximum

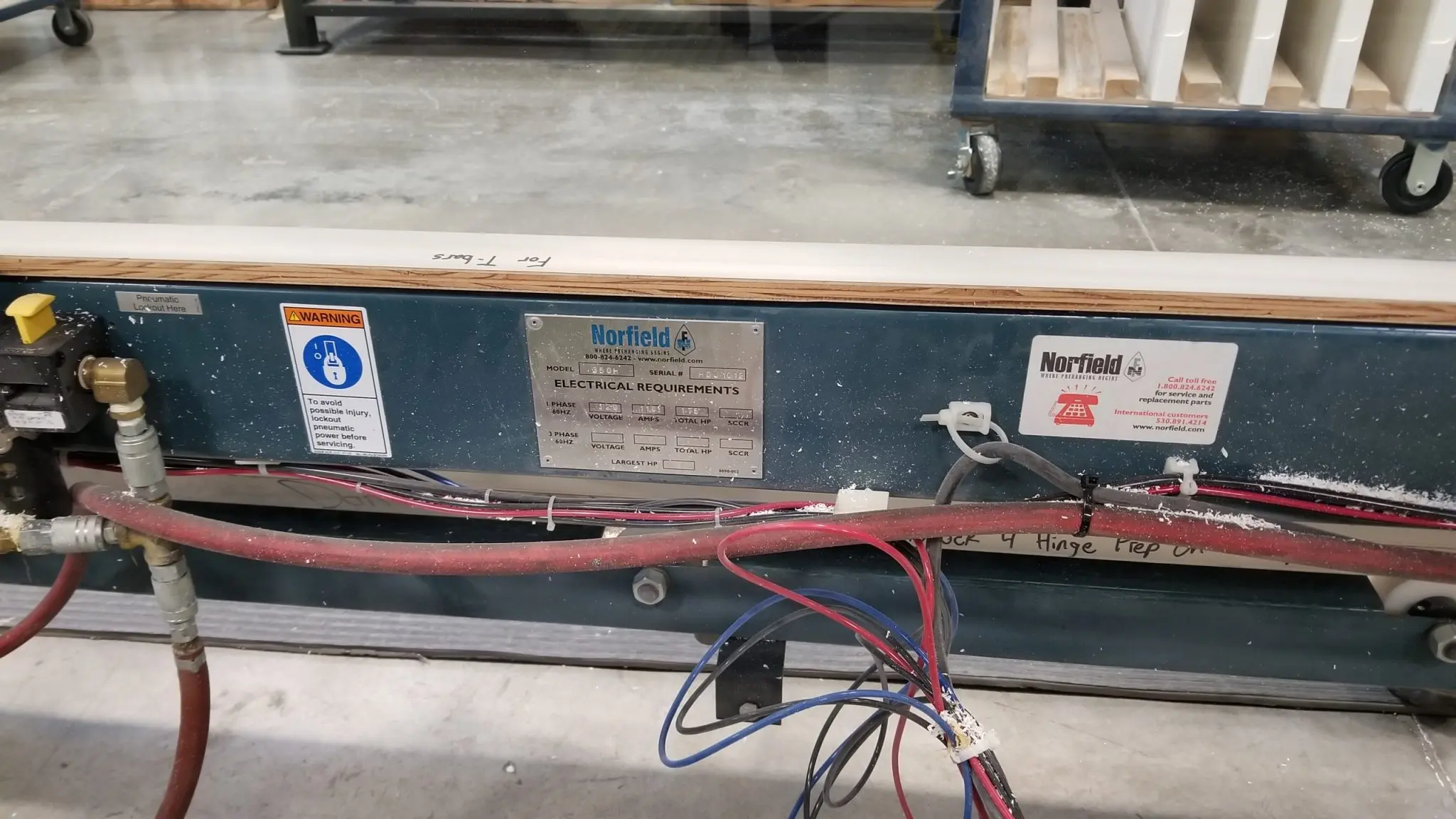

  • Electrical 115V 60hz @ 20 Amps
  • Pneumatic less than 1.0 CFM
  • Floor Space req. (min.) 3’ x 15’
  • Approx. Shipping Wt. 600 lbs.
  • Vacuum connection 4” duct
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Brochure Available.
