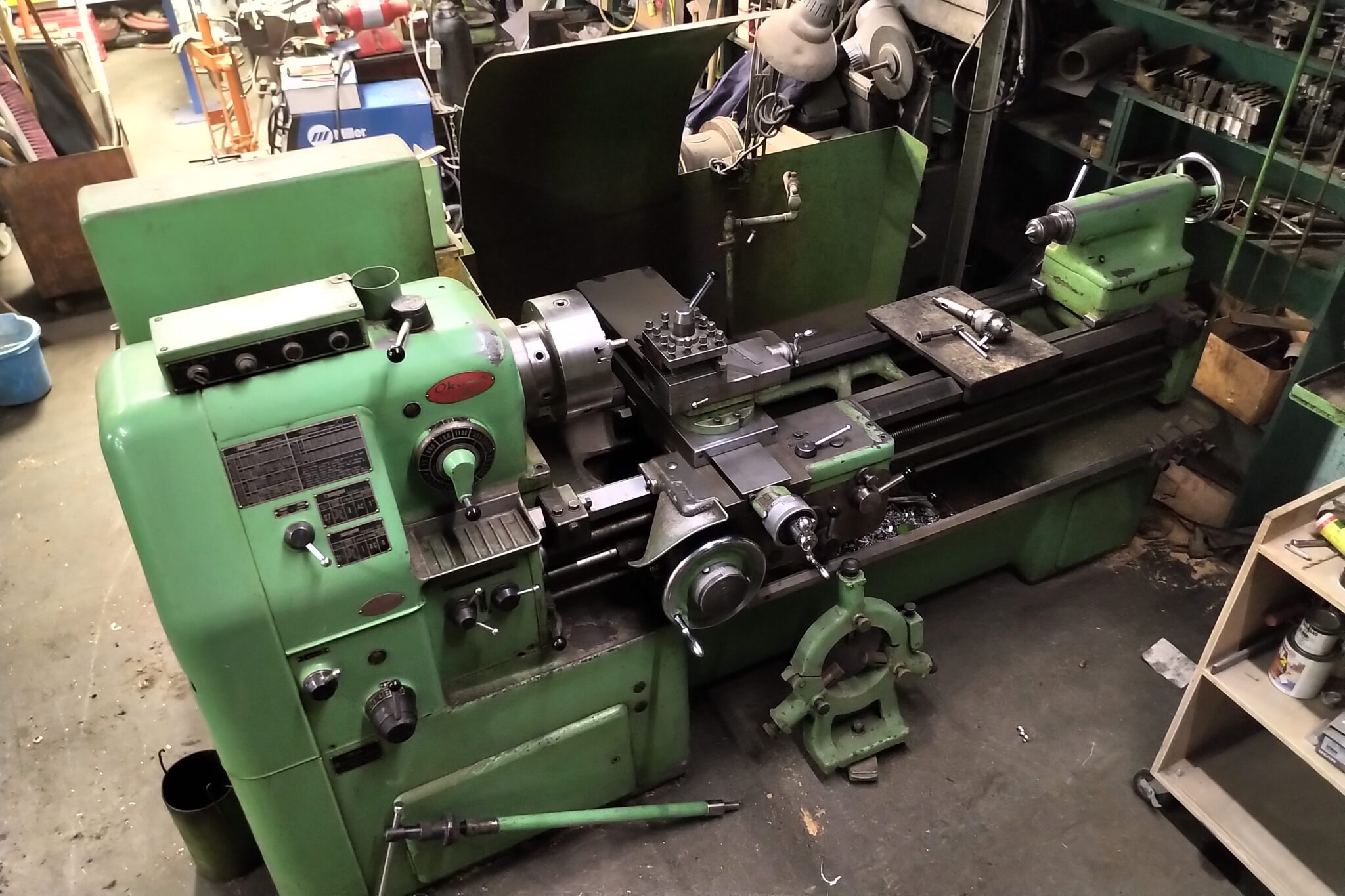

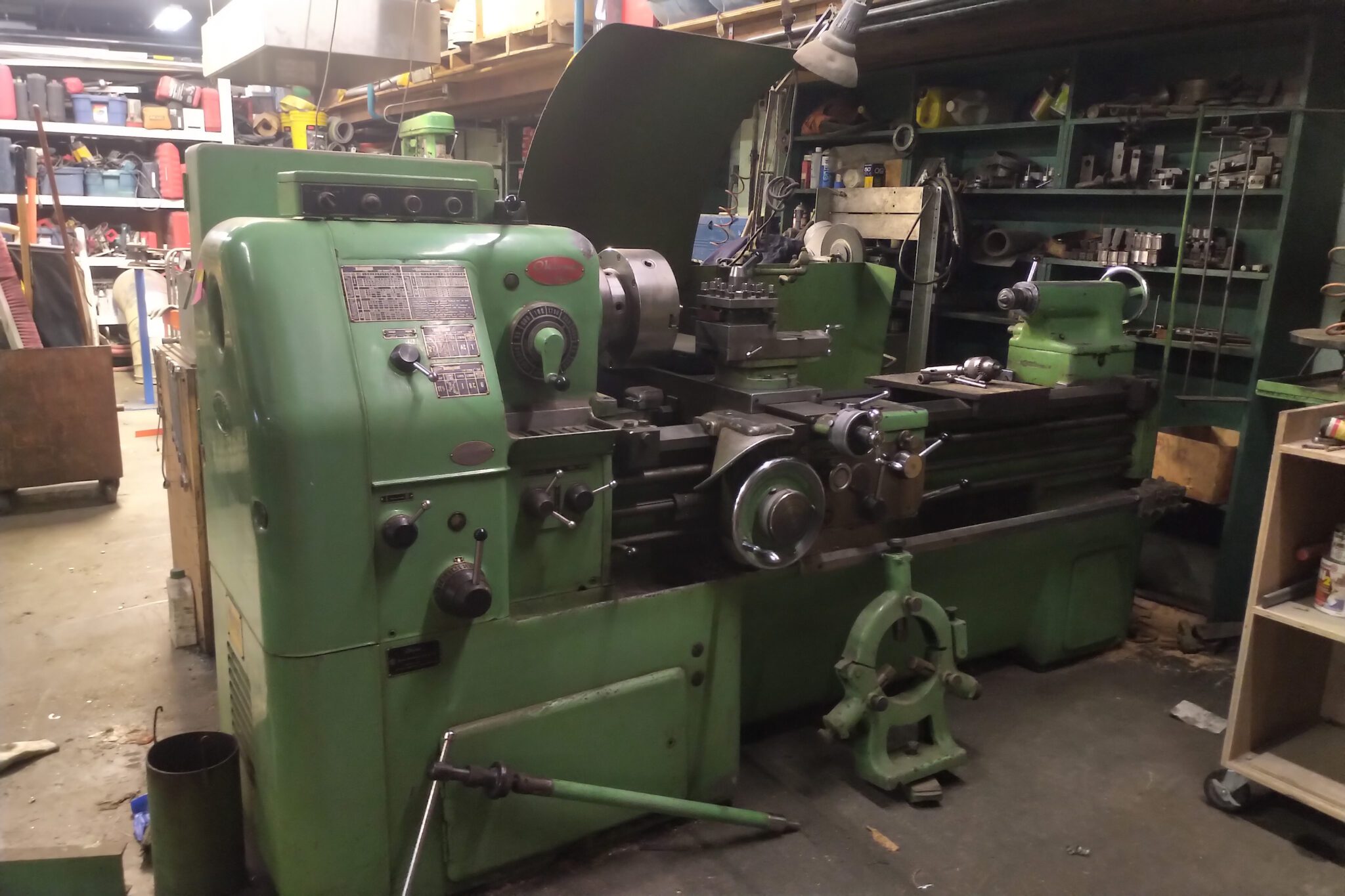

Okuma Engine Lathe

Specifications

Model: LS – High Production Lathe

• Horsepower: 10.2 HP
• 220V – 440V
• Cycles: 60Hz
• Phase: 3

• 20” Swing (10” throw) x 49” between centres
• Spindle speed: (12) 38-2000 rpm

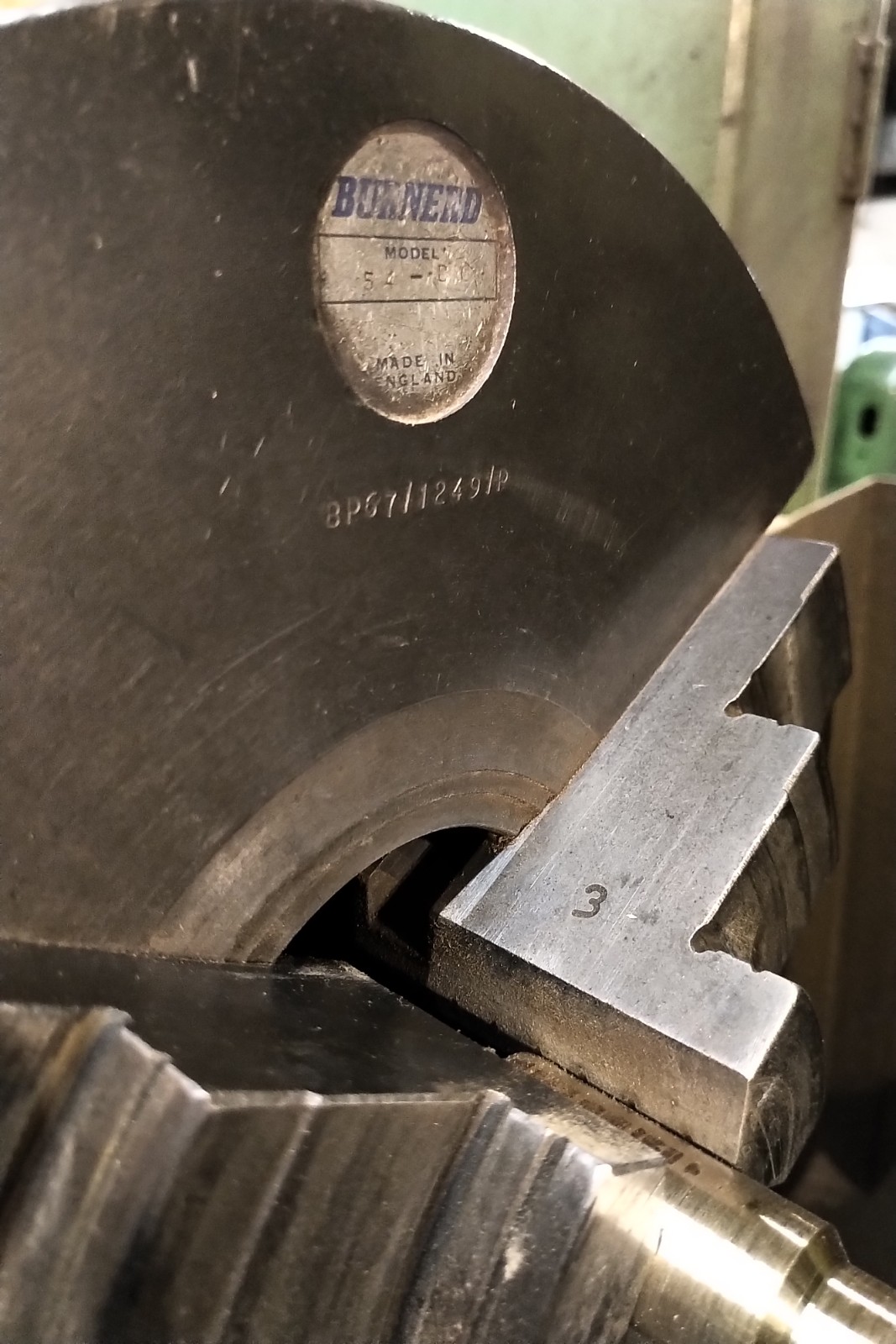

• 3-jaw chuck

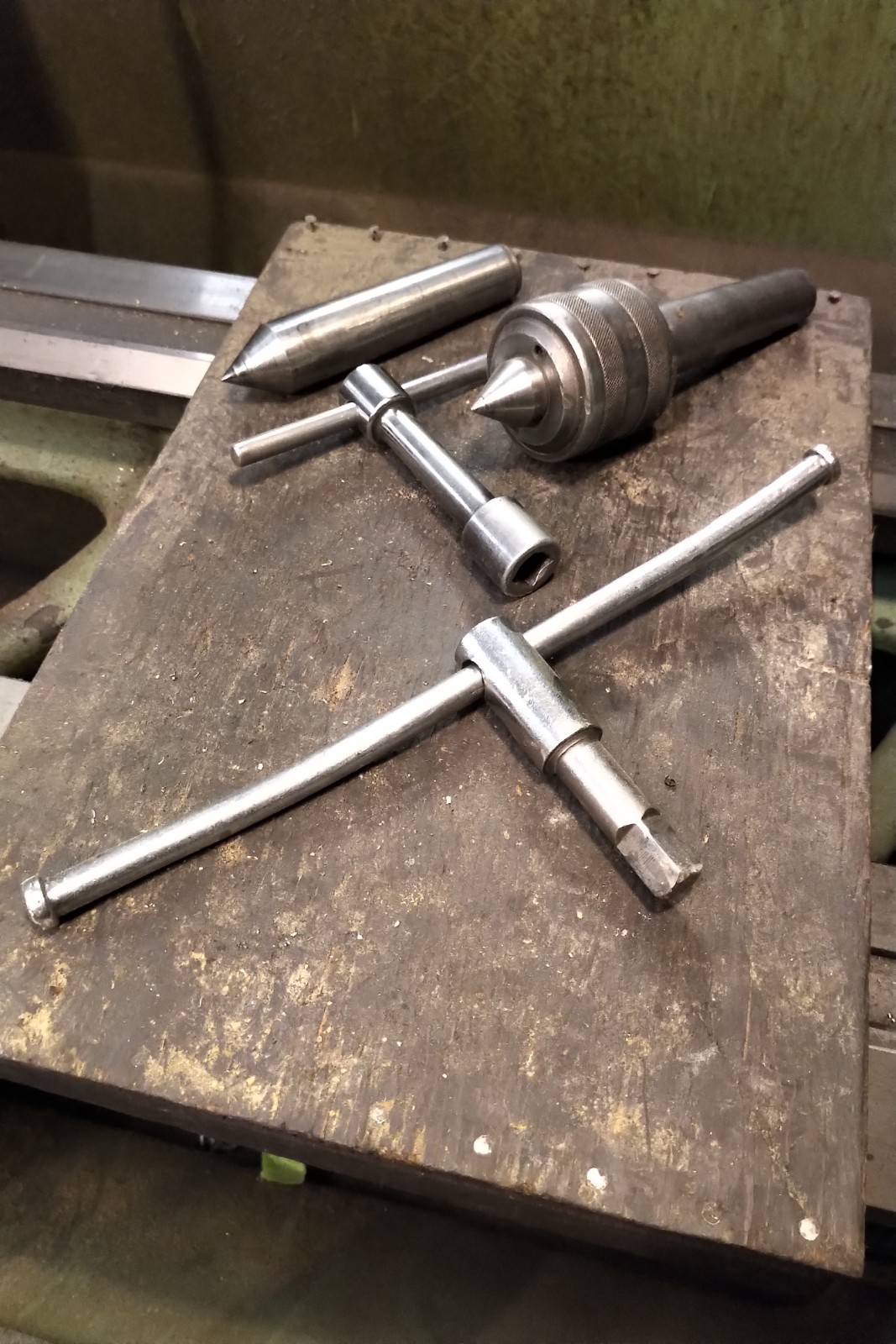

• Tailstock
• Steady rest
• Quick-change tool post
• 2” (52mm) spindle bore c/w adjustable workpiece stop (removable)
• 2 faceplates
• No taper attachment
• No gap-bed
• 5,200 Lbs

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
