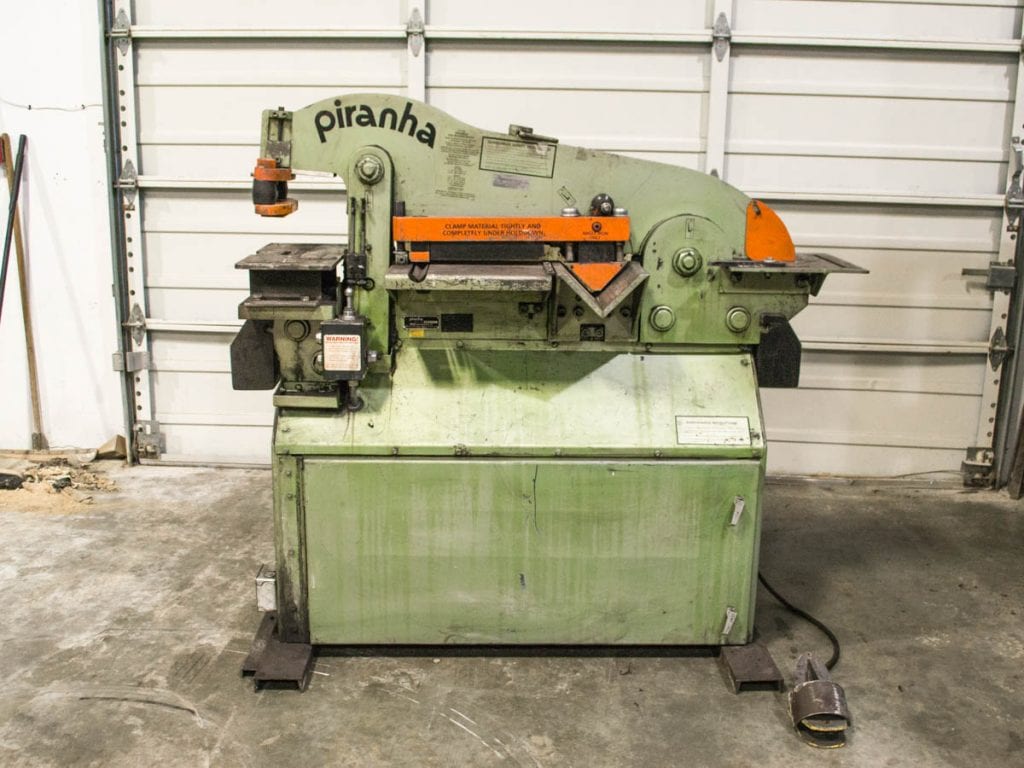

Piranha P50 Single Operator Ironworker

Manufacturer Description:

The Piranha Ironworker is a compact hydraulically powered machine that shears, punches, bends, notches, and copes, all in a low silhouette, efficiently designed unit,resulting in minimal floor space requirements. The integral lifting lug provides instant portability. The large platen has seventeen 5/8-11 tapped holes giving a wide base for increased flexibility of attachment sizes. The shearing operation features an adjustable automatic hold-down allowing the operator to clamp the work piece with a slight initial adjustment.

Manufacturer Specifications:

• Throat Depth 5″
• Open Height 11-1/2″
• Stroke Length 3-3/4″
• Platen Table Size (D-W) 8″ x 16″
• Punch 50 Tons
• Work Station Height Approx.: 42″
• Fluid Capacity (gal.): 12
• Plate Shear:
  • 13″ Long
  • 3/4″ x 6″
  • 1/2″ x 10″
  • 3/8″ x 12″
  • 1/4″ x 13″
