Features and Specifications:
- 2009 Model

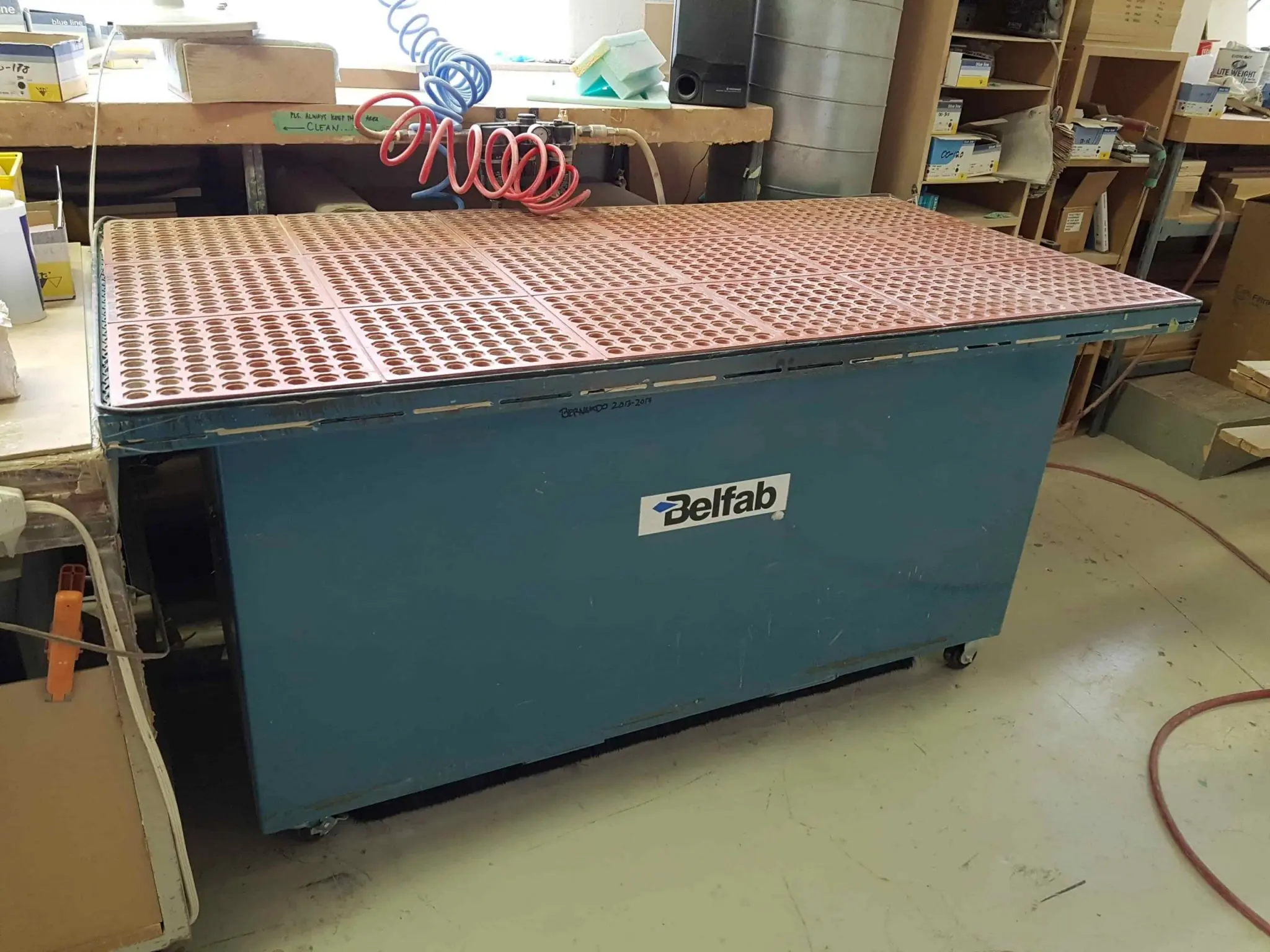

- Anti-Slip and Non-scuffing Tabletop Mat – The machines offer an indestructible, half-inch thick mat to ensure parts are securely held into place and protect them from dents or scuffing
- Ergonomic – Special recessed base design offers foot clearance for workers comfort, allowing the tabletop surface to be accessible from any position surrounding the table
- Ease of Maintenance – The unique feature of the gas-cylinder assisted tabletop is counter-balanced for effortless opening with a single hand, allowing easy access to the filters and inner chamber for maintenance
- Innovative Filter Design – The filters act as dust trays to capture 100% of collected dust particles and can be easily cleaned and replaced in less than a minute
- Sound Pressure: 78 dB
- Weight for shipping : 550 lbs.
- Machine Dimensions: 36″ x 72″ x 36″
- Inlet Diameter: N/A
- Disposal Options: Filter Panel
- Disposal Capacity: N/A
- Filtration Surface:N/A
- CFM Capacity: 3,600
- Blower Motor (STD): (2) 3/4 hp
- Modular: No
- Panel Filter efficiency : 98.00 %

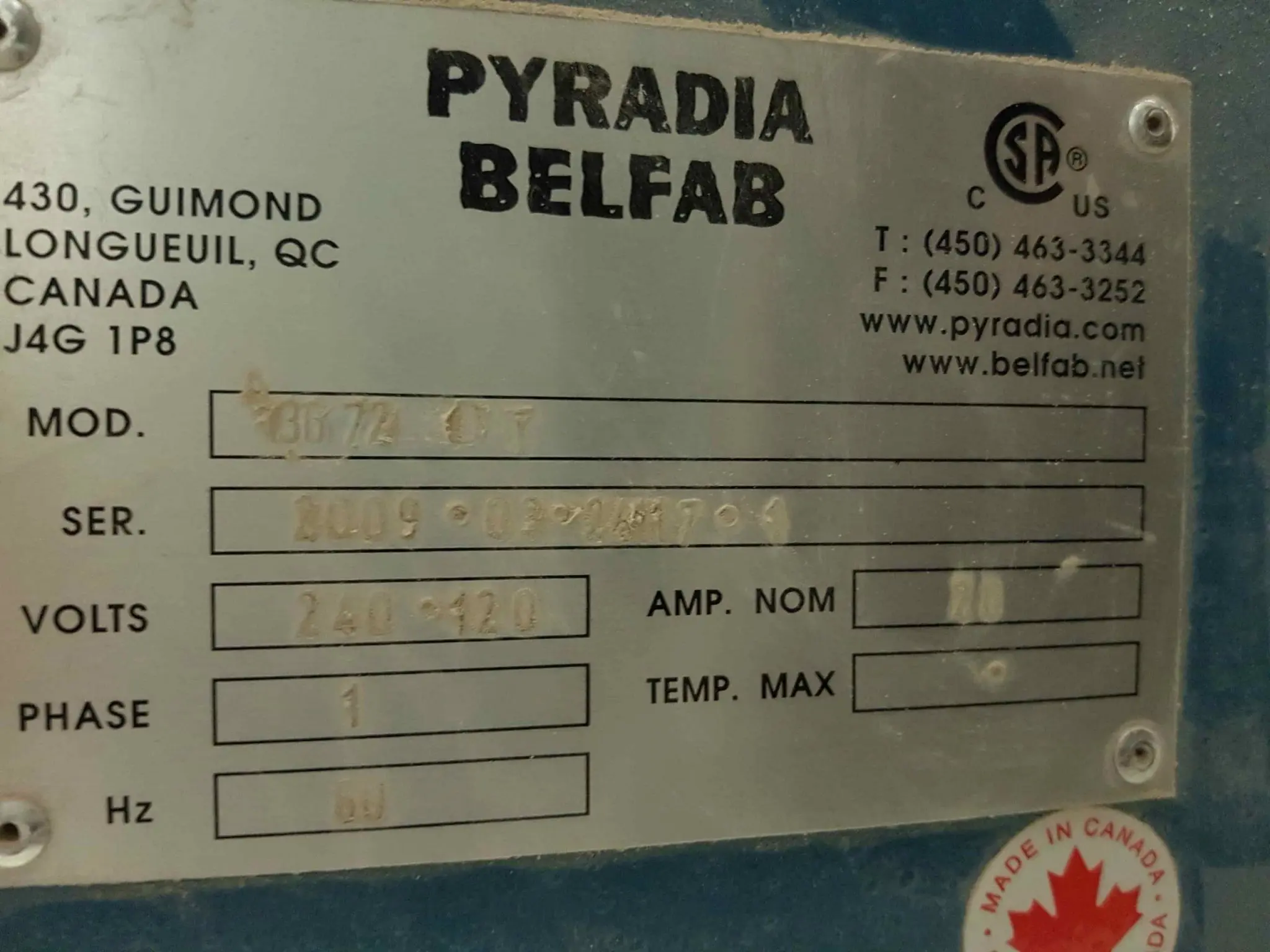

- Max Amperage load : 240/120v – 1ph / L1,N : 20A
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Machine Catalog Available.
