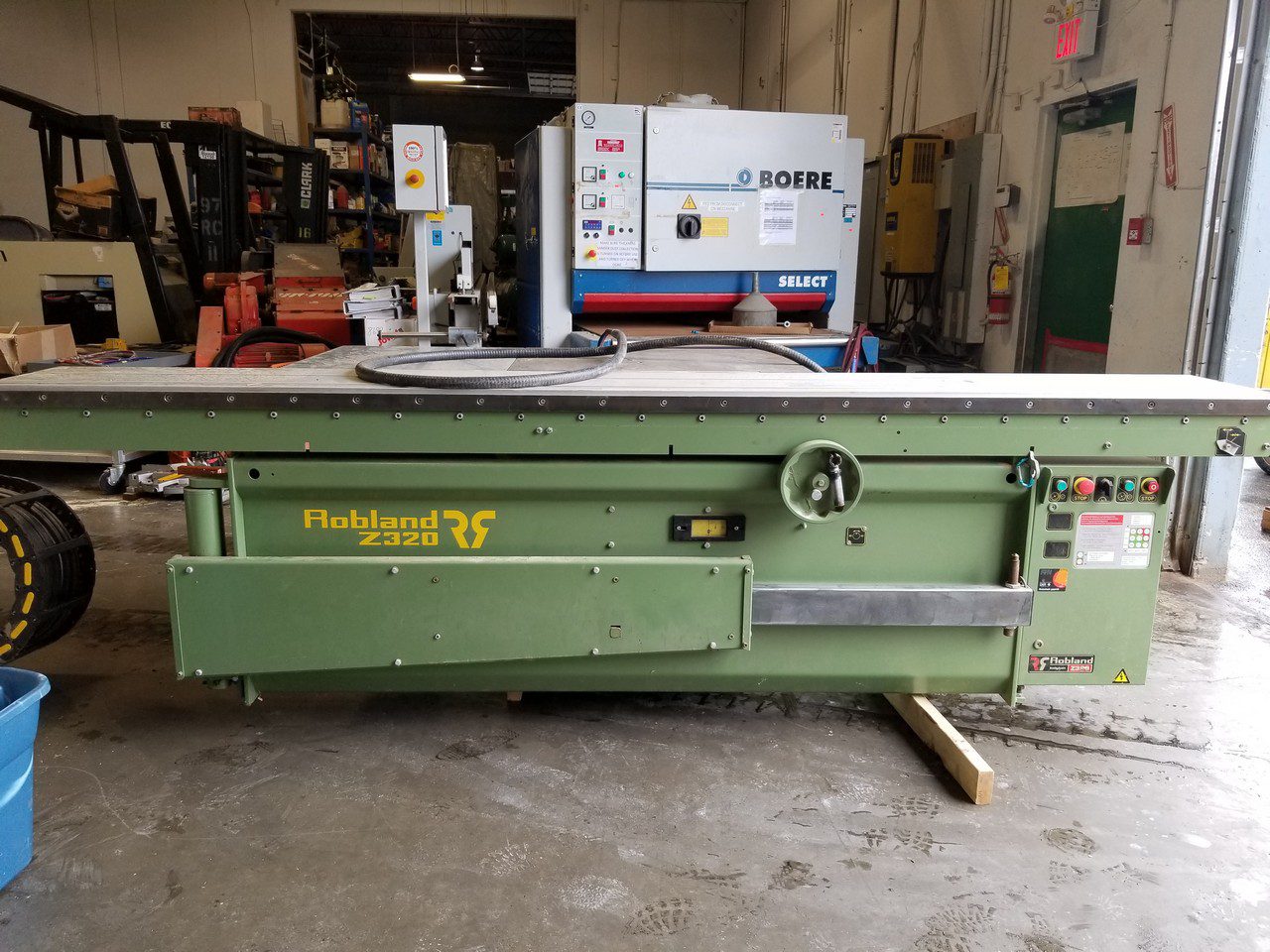

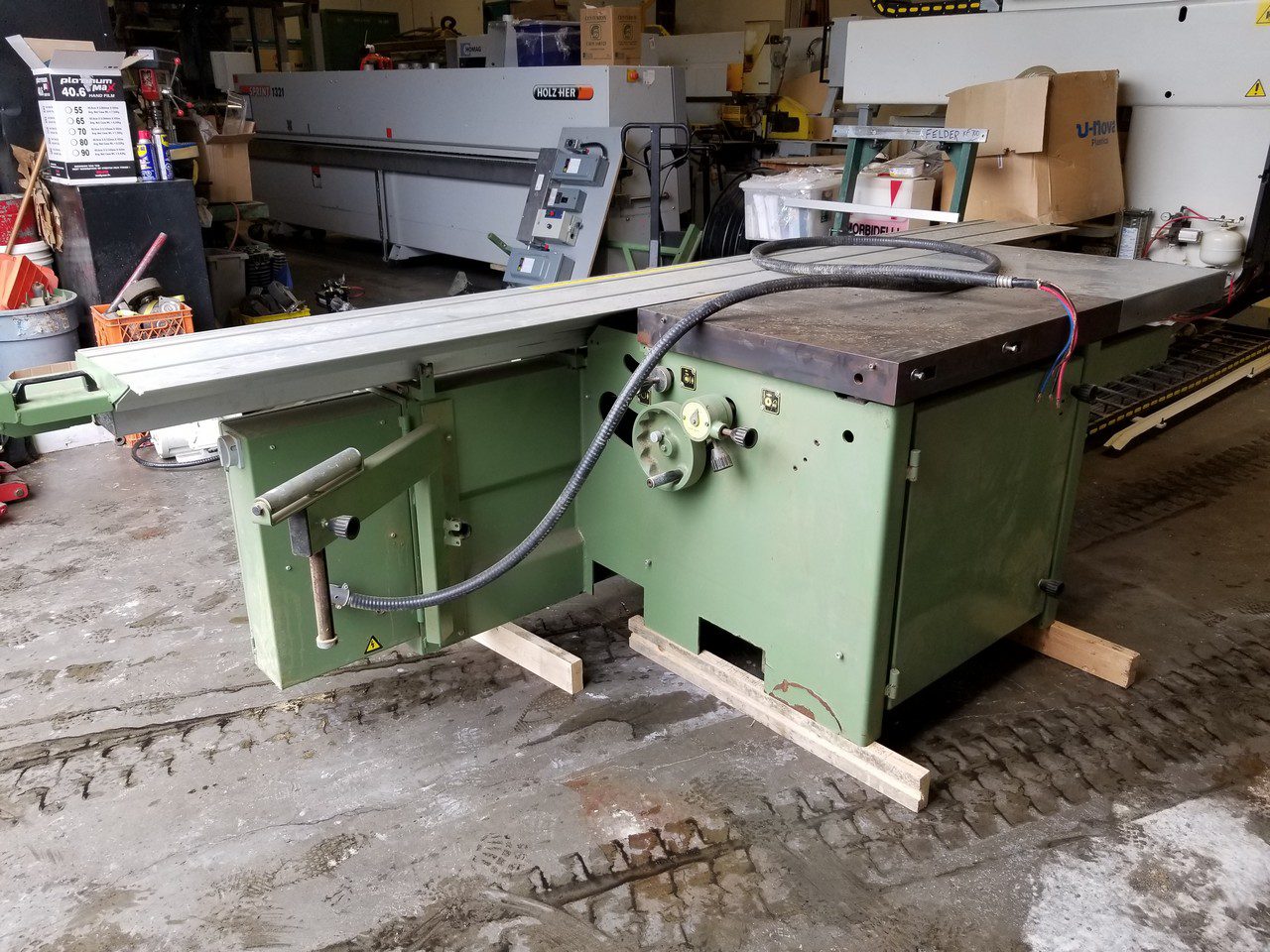

Robland Z3200 Sliding Table Saw

Specifications

• Brand: Robland Machines
• Model: Z3200

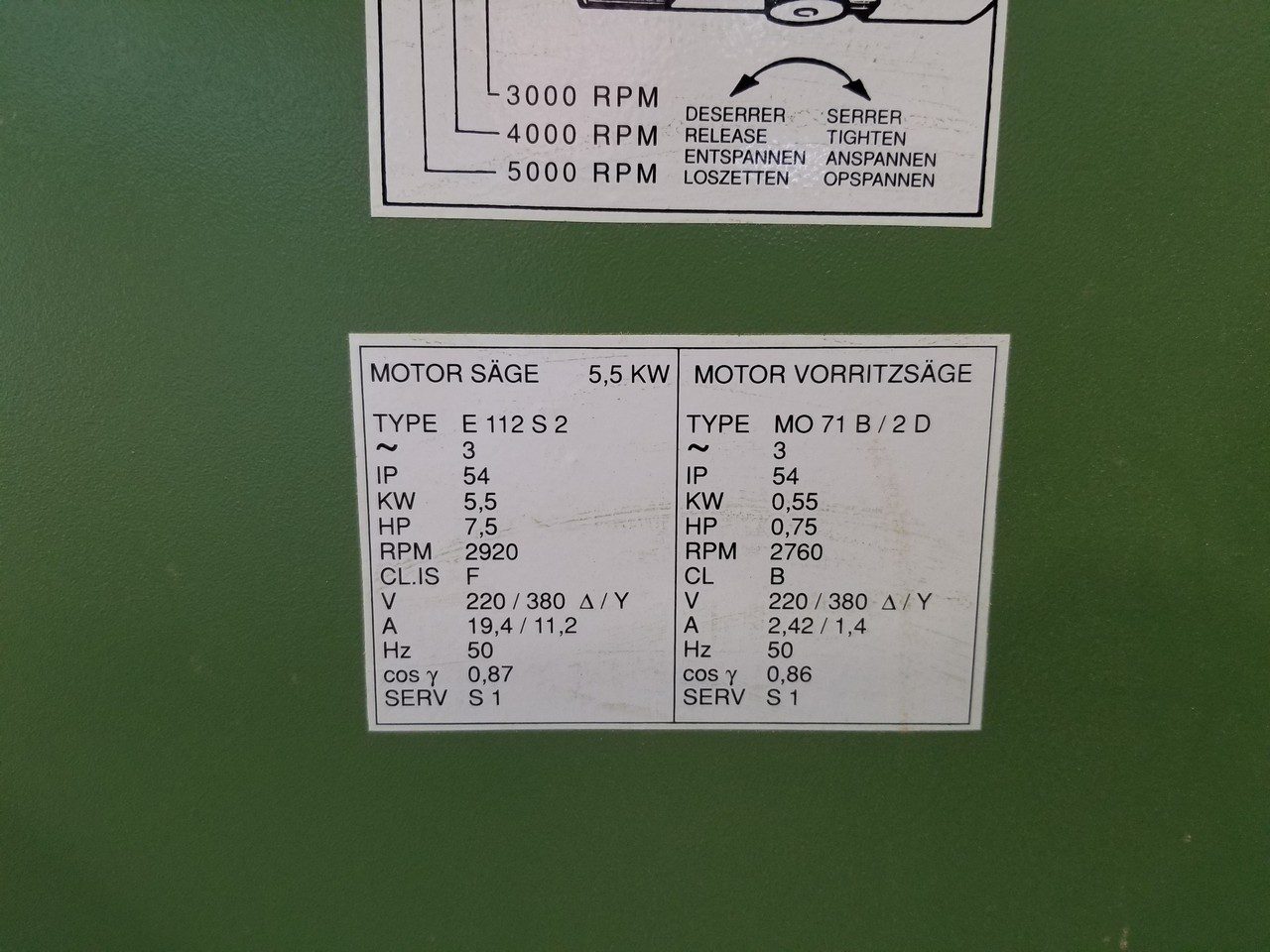

• HP 7.5 HP
• Phase 3
• Voltage 220/380
• Diameter saw blade and bore 16″ / 1.18″
• Cutting depth at 90° / 45° 4.92″ / 3.94″

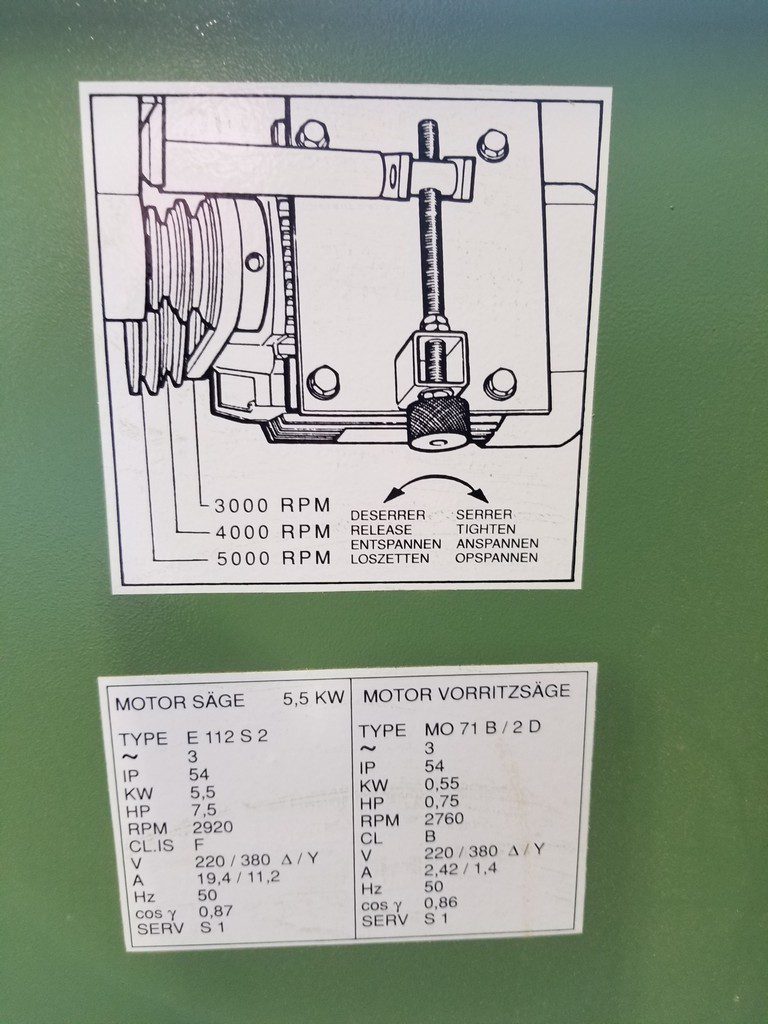

• R.p.m. 3000 / 4000 / 5000
• Sawblade tilting 90° – 45°
• Cutting width parallel fence 54.33″
• Cutting length 125.98″
• Dimensions cast iron table 34.84″ x 27.56″
• Dimensions sliding table 125.98″ x 16.54″
• Dimensions cross-cut table 55.91″ x 19.69″
• Length cross-cut fence 70.87″
• Manual rise and fall
• 45 degree mitre

Shipping Size:

Machine:

• Height 53″
• Width 89″
• Depth 40″

Sliding Table:

• Height 17″
• Width 128″
• Depth 79″
• Total Weight 2780Lbs Show Less

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: Online PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
