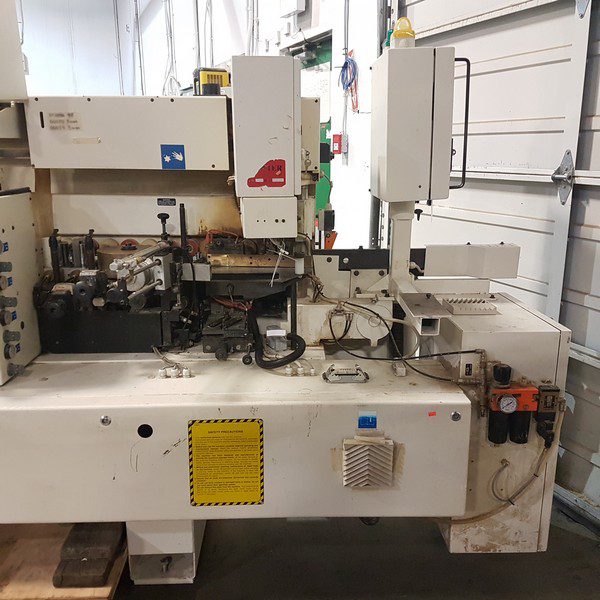

SCM Olimpic S212 Edgebander

Features and Specifications:

• 3PH
• 380V
• 60Hz
• 35A

• Edge thickness capacity: 0.4 – 12 mm (½”)
• 3 mm PVC capacity: minimum working width  4-¾”
• Hot melt glue application system with booster system for quick heat up. Comes with reverse glue applicator.
• Guillotine shears can cut 3 mm PVC
• Pneumatically controlled pressure section (all independently controlled)
  • 1 large drive
  • 3 die rollers

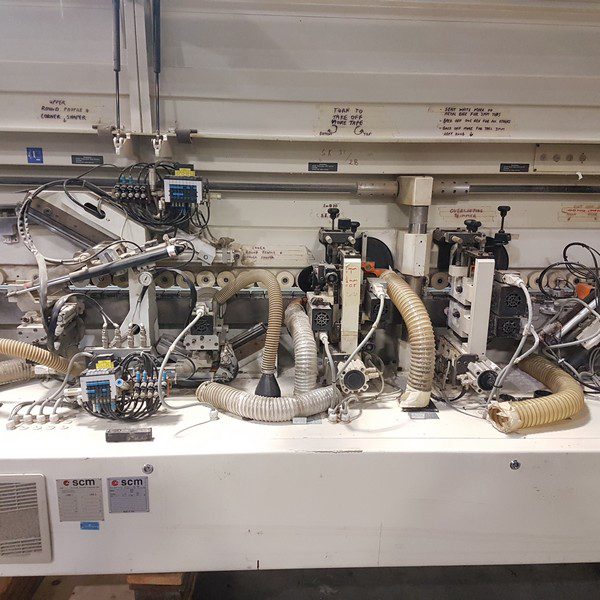

• Workstations: Double motor end trim (1.3 HP 12,000 RPM motor each) pneumatic adjustment for 0 – 15 degrees chamfer cutting
• Top and Bottom Flush Trim: (2.5 HP) – 12,000 RPM motor each)
• Top and Bottom Fine & Radius Trim Unit (2.5 HP – 12,000 RPM motor each) Bevels from 0 – 30 Degrees
• Top and Bottom PVC Scrapers for 3 mm radius, pneumatic pressure control for scraping knives, digital readouts.
• Top and Bottom Buffing (0.4 HP – 1,400 RPM each motor)
• Single Feed Speed at 40 FPM, 5 HP feed drive, automatic chain track lubrication.
• Hold down pressure beam with row of hold down rollers open from ⅜” – 2-5/16”
• Sound proof cabins with window and interior lights
• Heavy duty outrigger panel support with counter pressure

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
