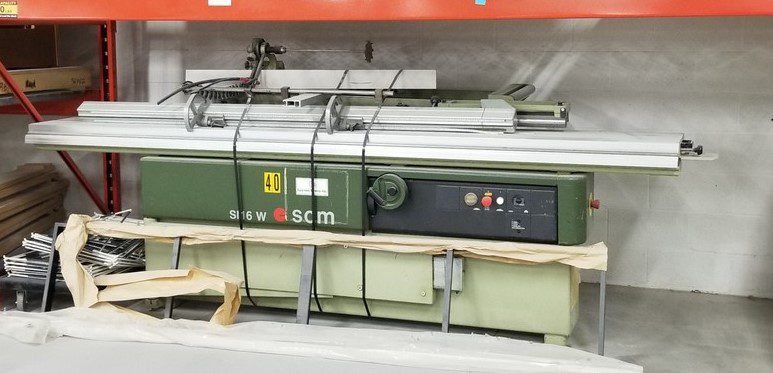

SCM SI 16W Sliding Table Saw

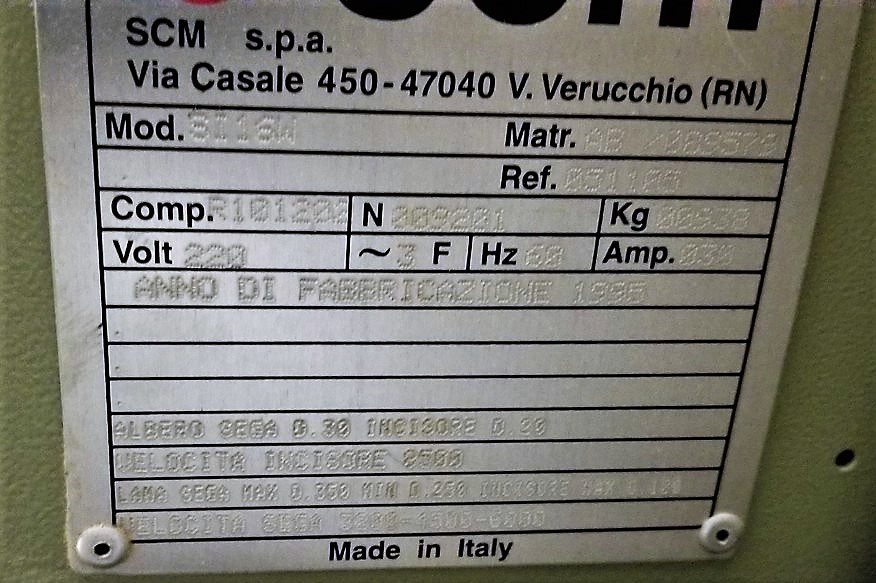

• 220 v 3 phase
• 10′ sliding table
• c/w scoring, 126″ (3,200 mm) Stroke with scoring.
• Dimensions of the (fixed) table 1150 x 630 mm
• Table height 880 mm
• Dimensions of trolley 3050 x 350 mm
• Run length of the trolley 3400 mm
• Slope range of the saw blade Tool diameter 90º –  45º
• Smallest saw blade 200 mm
• Standard saw blade 350 mm
• Largest possible saw blade 400 mm
• Max. Cutting height (with saws 350 mm) at 90 position 110 mm
• at 45 position  75 mm
• 9 HP main motor and 1 HP scoring motor, with (3) main arbor speeds at 3,200 – 4,500 & 6,000 RPM
• speeds n= 3200/4500/ 6000/1′
• Largest cutting width with Parallel stop 1000 mm
• Largest format cutting length 3200 mm
• 4-1/2″ Depth of cut with standard 13-3/4″ blade dia.;
• max blade is 15-3/4″;
• 30 mm main arbor & 20 mm scoring arbor;
• 39″ max. width to rip fence;
• 45-1/4″ x 24-3/4″ fixed table.
• Motor Power Main Saw 4kw (9HP)
• Motor Strength 0.75 kw ( 1 HP)
• Space Requirements 3300 x 3200 x 1000 mm
• Weight  900 kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction Manual Available. Also PDF Copy of Brochure Available.
