Features and Specifications:

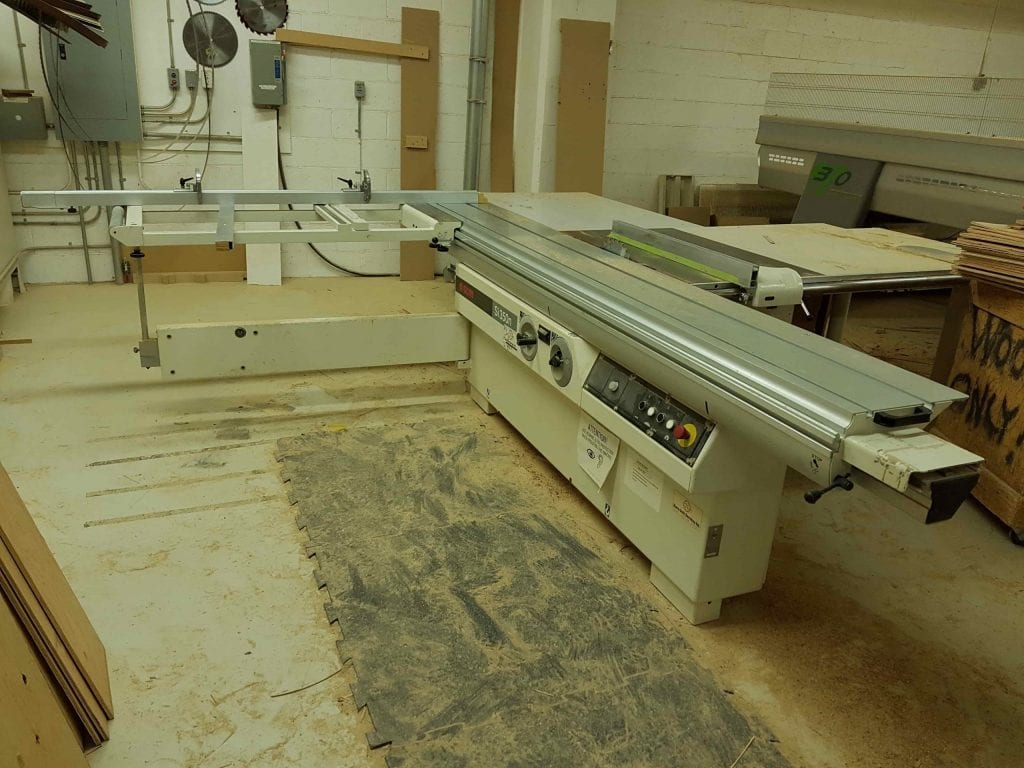

- SCM SI 350 N Sliding Table Saw
- Main motor horsepower 9 HP
- Scoring motor horsepower 1 HP
- Fixed table size 41” x 25”
- Height of worktable 34.5”
- Rip capacity 1270 mm (51”)
- Max. length of crosscut with scoring 3200 mm (126”)
- Main blade diameter/arbor 350 mm/1”
- Scoring blade diameter/ arbor 120 mm/3/4″”
- Arbor speed – main/scoring 4,000/8,500 RPM
- Dust outlets – main/overarm guard 120 mm/100 mm (5”/4”)
- Depth of cut – 0 degrees/45 degrees 118 mm/81 mm (4.6”/3.1”)
- Overall dimensions 279.5” x 157.5” x 44”
- Crated dimensions – 2 pieces (machine/table) 7.4’ x 3.8’ x 3.7”/ 10.9’ x 1.5’ x 0.7’
- Shipping weight – 2 pieces (machine/table) 1050 kg/180 kg (2,215 lbs/396 lbs)
- Net weight 980 kg (2,160 lbs)
- Electrical requirements 25 amps @ 230 volts, 3phase
- Dust extraction 1100 CFM
- Anodized aluminum sliding table with hardened steel guides
- Separate Mitre Fence for Angle cutting
- Tilting arbor from 0 to 45 degrees
- Mechanical tilt indicator
- External scoring saw adjustment with stops
- 2 Position table lock
- Overhead mounted blade guard with dust outlet
- Heavy industrial aluminum extrusion crosscut fence with flip stops
- ”EZ Dial” Adjustable split scoring blade assembly
- Standard 1 year warranty (10 years on table guide way tolerances)
- Hand wheel on front for lifting and tilt of blade
- Electrical control panel tilted 25 deg. for ergonomics
Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
