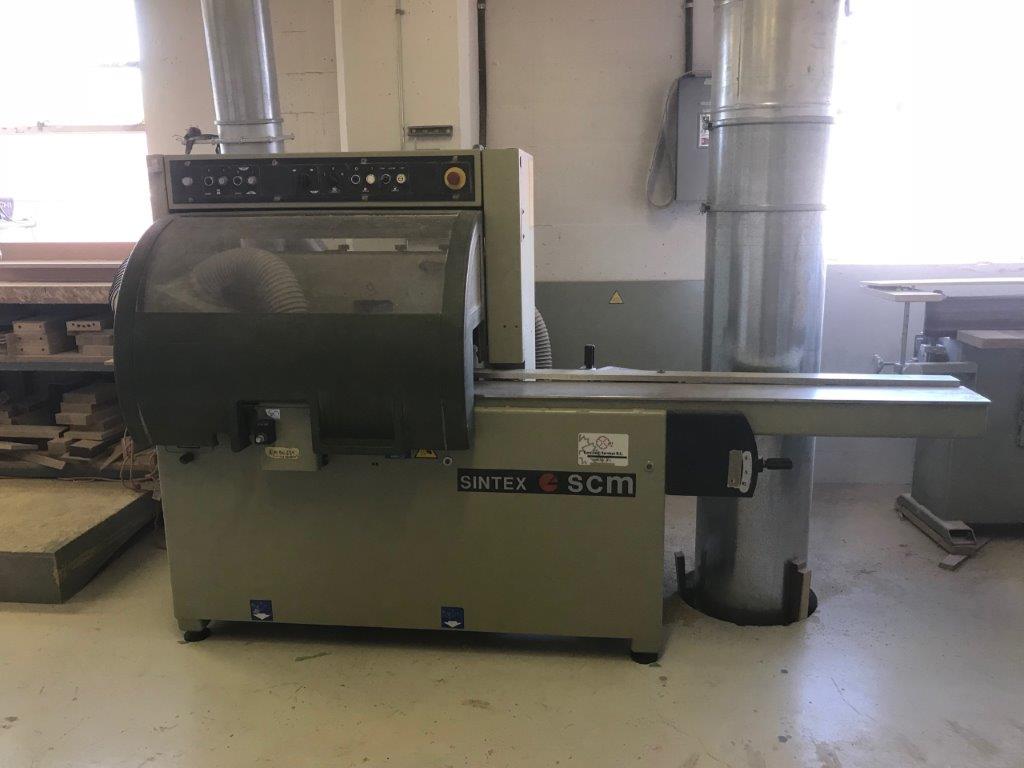

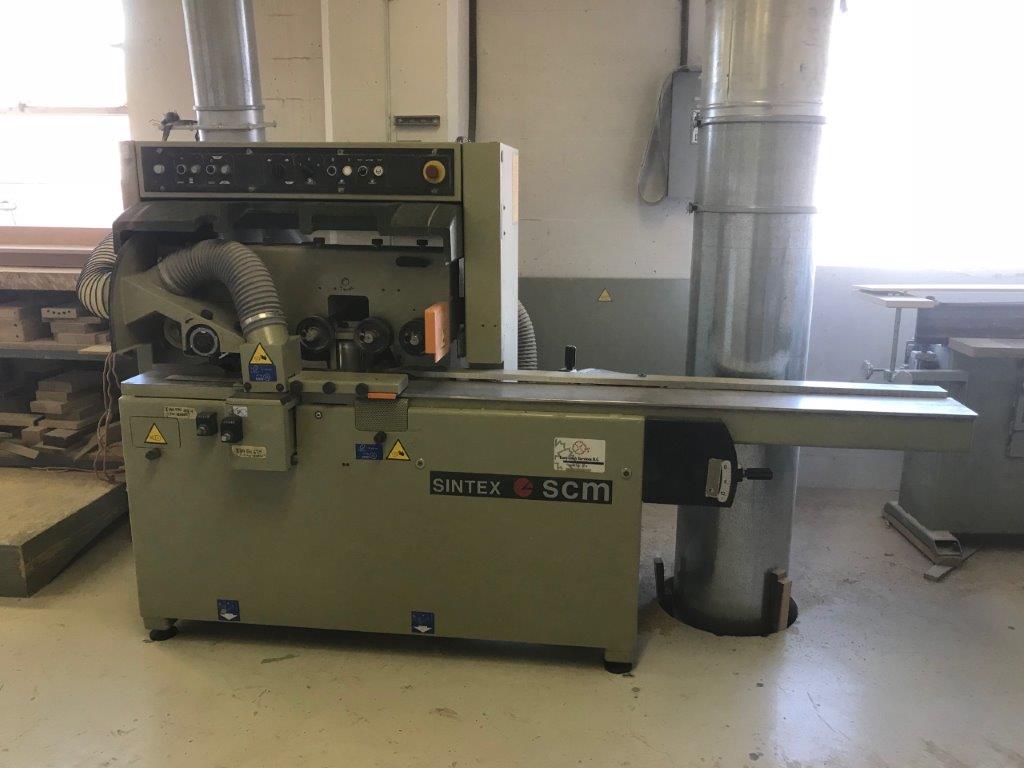

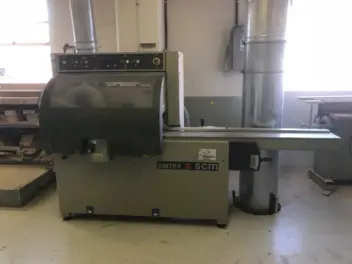

SCM Sintex 4 Side Moulder

Features and Specifications:

• Machine with soundproofing cover

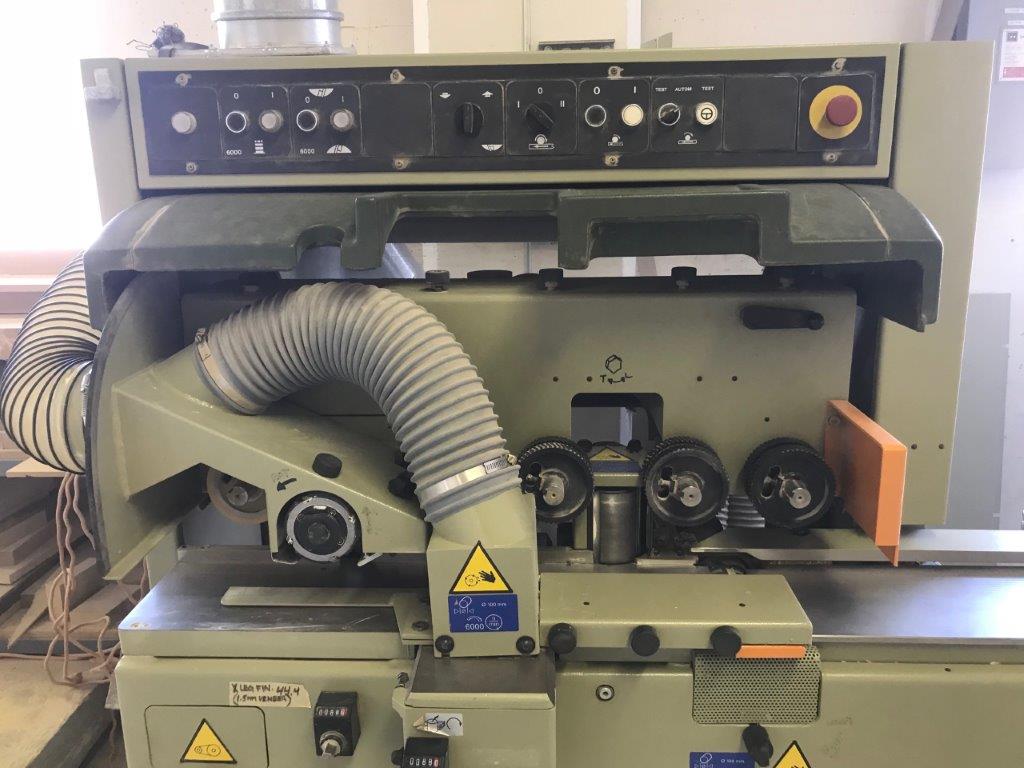

• 4 spindles with Aluminium – cutter heads,

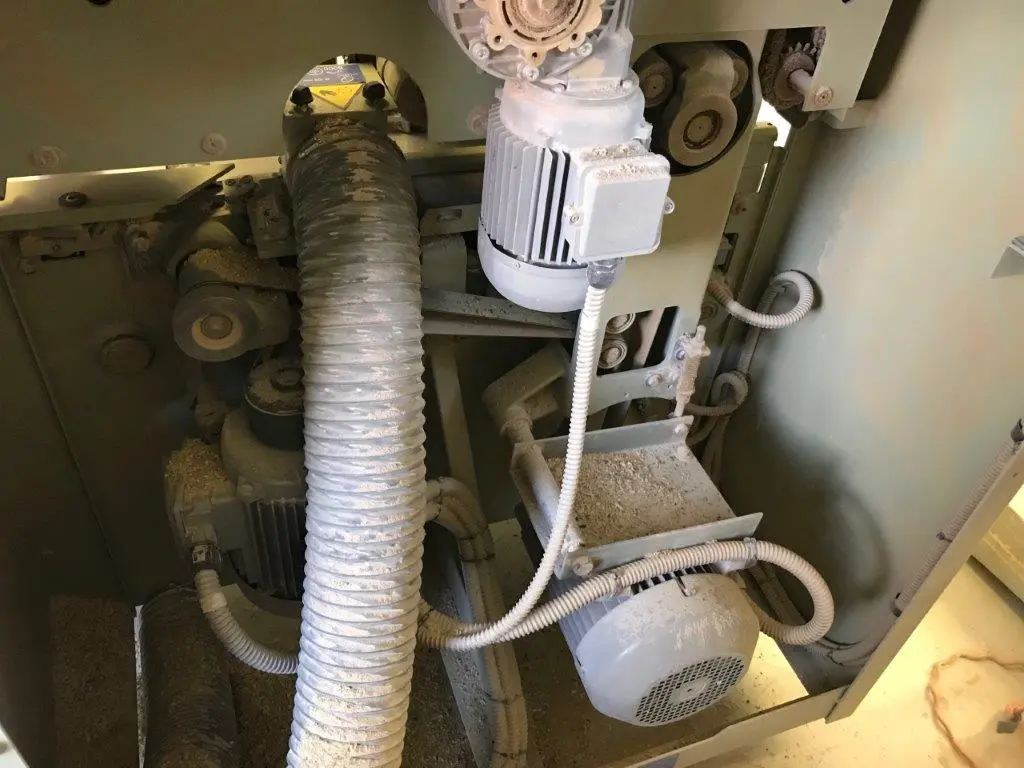

• Engines ~ 15 kW, longer in feeding table,
• Digital adjustment of planing height and width
• planing width 180 mm
• planing height 105 mm
• table length 2300 mm
• number of spindles 4
• spindle diameter 35 mm
• speed 6 x 1000 U/min
• feed speeds 2 piece
• feed m/min. 6 + 12 m/min
• height adjustment manually
• machine dimension 1
• length 3250 mm
• width 1050 mm
• height 1630 mm
• weight 900 kg

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction and Maintenance Instruction & Part List Manual Available.
