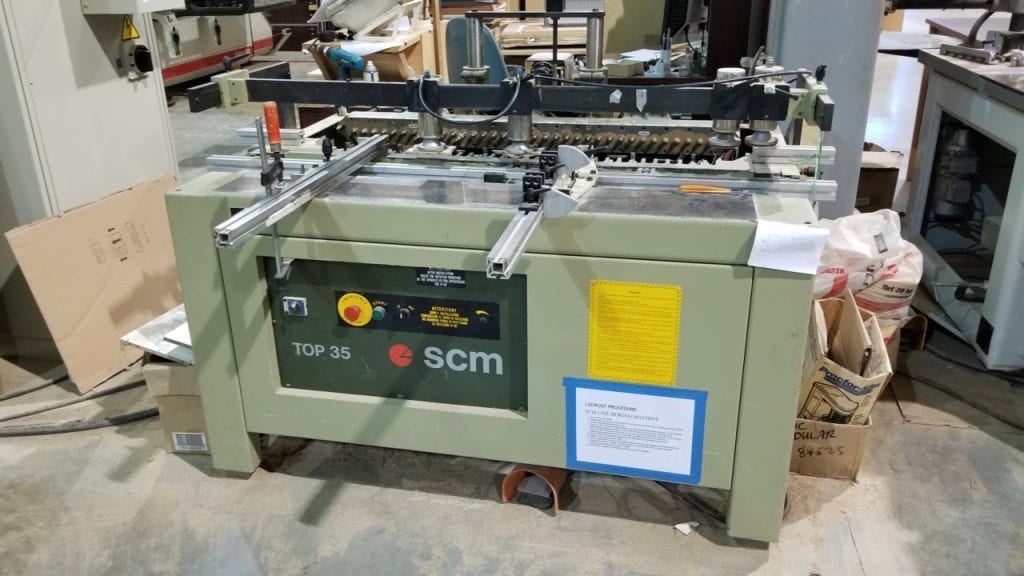

SCM TOP 35 Boring-Machine

Features and Specifications:

• 35 Quick Change Adapters for Tool change over
• 35 Bushes for Parallel Shank Bits
• Powered Tilting from 0 to 90 Degrees for Vertical and Horizontal Boring, with Boring Possible in any intermediate position.
• Precise Numeric indicator for Setting Boring Stroke
• Front Reference Stops Controlled by a Single Lever
• Four Air Pressured Hold Down Clamps – Hydraulic Brake for Boring Unit
• Fence Extensions with Four Mechanical Reference Stops
• Two Mechanical Reference Stops on the Worktable
• Control Pedal, Rear Emergency Push button
• Overload Motor Protection
• Horsepower (3.5 Each Motor 7)
• Distance Between Spindles 32 mm
• Max. Stroke of Boring Unit (5 112*) 140 mm
• Max. Width of Panel Under Boring Unit (46′) 1,170 mm
• Boring Bits Required 18 Right 17.
• Pneumatic Operating Pressure (PSI) 88
• Stroke of Hydraulic Brake 50 mm
• Height of Worktable 33″
• Shipping Weight 1,650 lbs.
• Net Weight 1,540 lbs.
• 22 AMPS @230V

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
