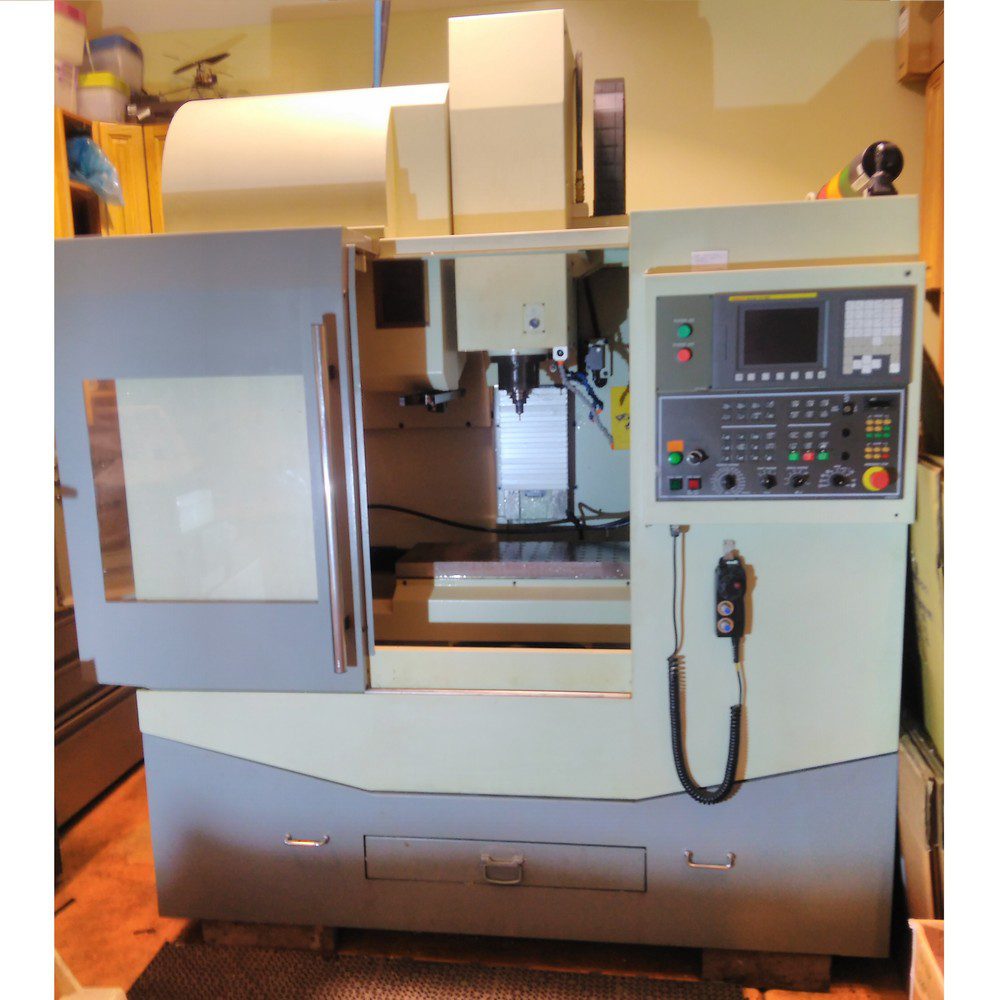

This unit was distributed by Monarch Machine Corp and became a spare machine in 2008. It was stored since then. It was professionally completely rebuild in 2014 /15 to better than factory tolerances. The ways were sent to California for precision grinding
Since then it has been used by one mechanical engineer for prototype engineering of parts. Very light usage. Mostly aluminium. No grinding. Possibly 200 to 300 hours of run time, less actual usage since.
Travel Size:
X-Axis 24”
Y-Axis 12”
Z-Axis 18”
Table Size: 30” x 12”
Spindle Taper: CAT-40 (or can be BT-40 with holders)
Spindle Speed: 8000 RPM
Spindle Motor Power: 10 HP
Continuous Motor Spindle Power: 7.5 HP
Automatic Tool Changer
Tool Capacity: 24 Tools
ATC Type: Carousel
Approximate Weight: 5500 lb
Voltage 220/440 V/3/60 (Presently running 220)
Shipping Dimensions: 88” x 81” x 102” H
Equipped With:

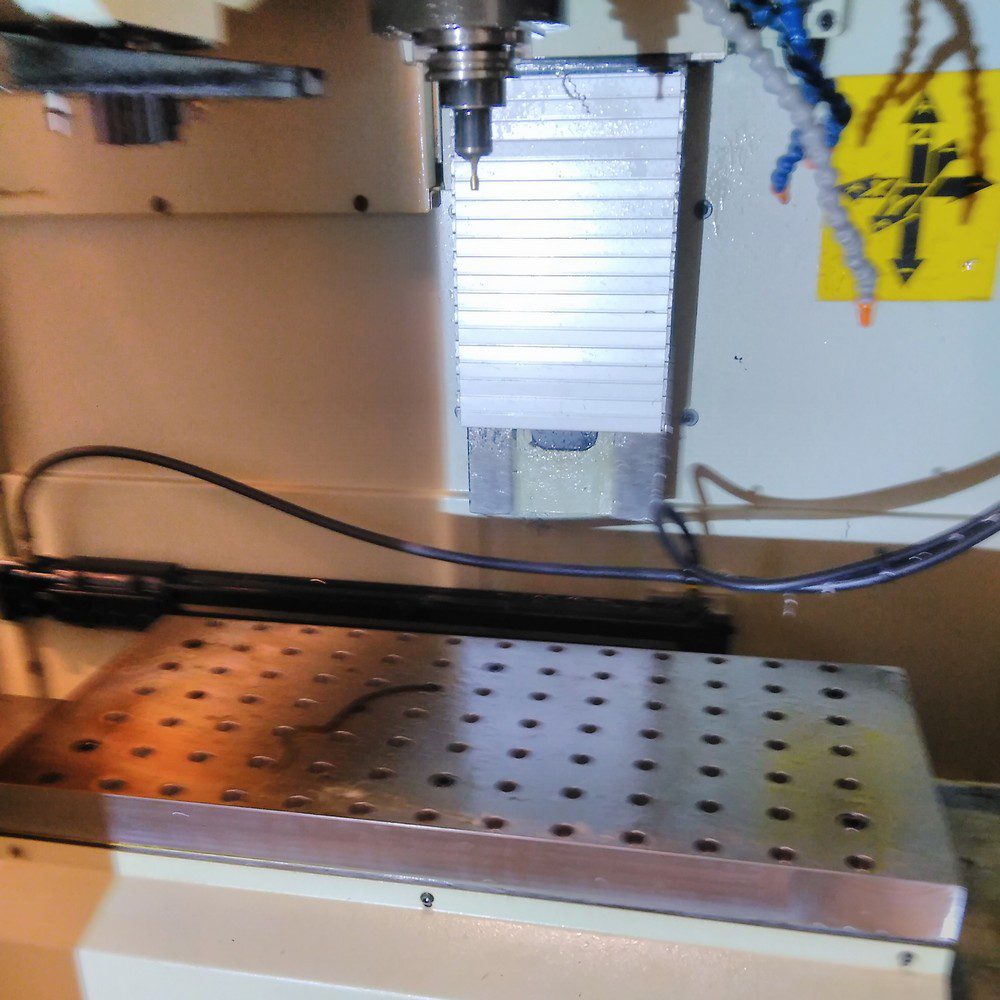

Sacrificial precision milling table always installed on precision machine ways
| Weight | 1247.38 lbs |
|---|---|
| Dimensions | 88 × 81 × 102 in |
