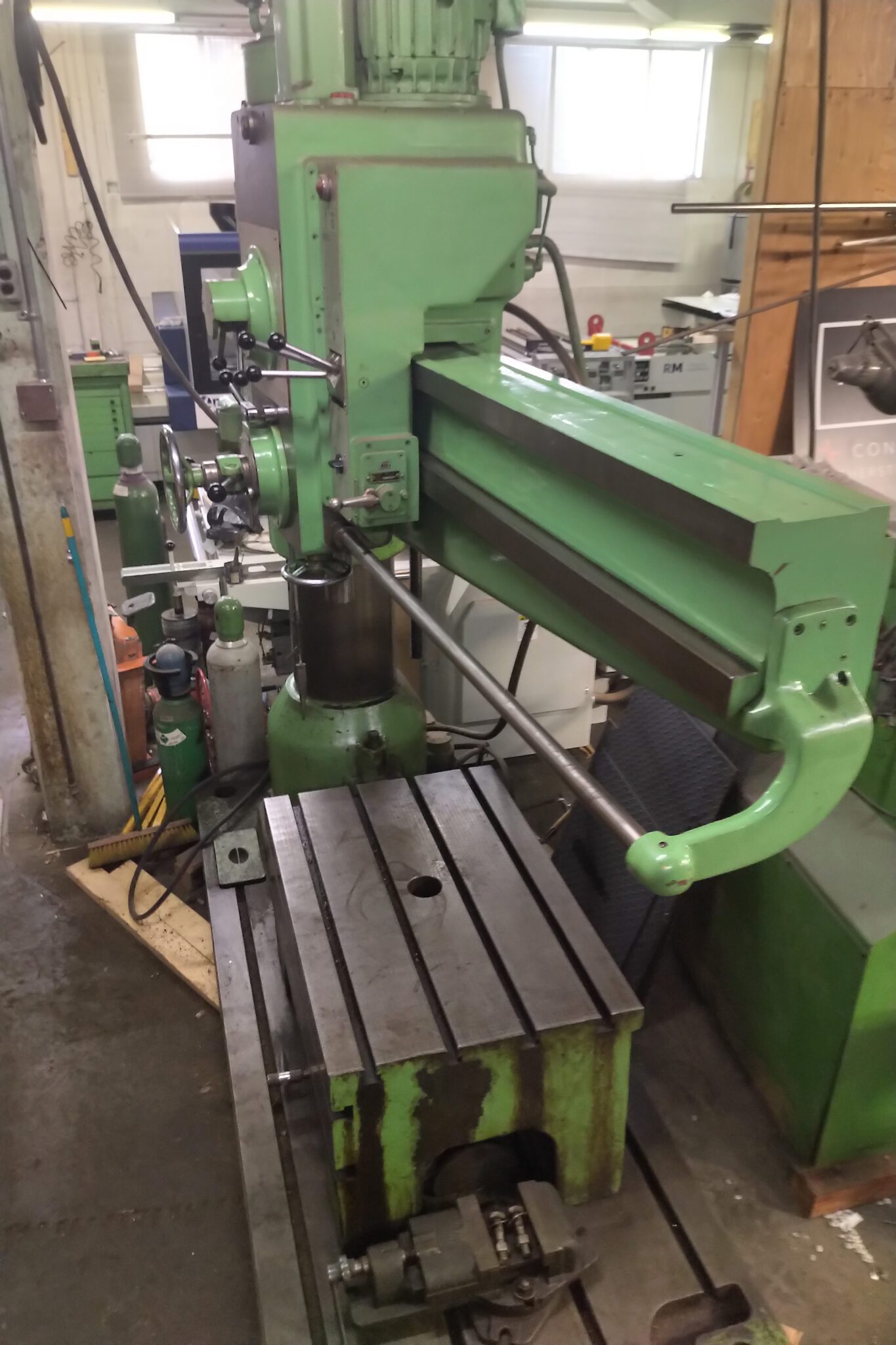

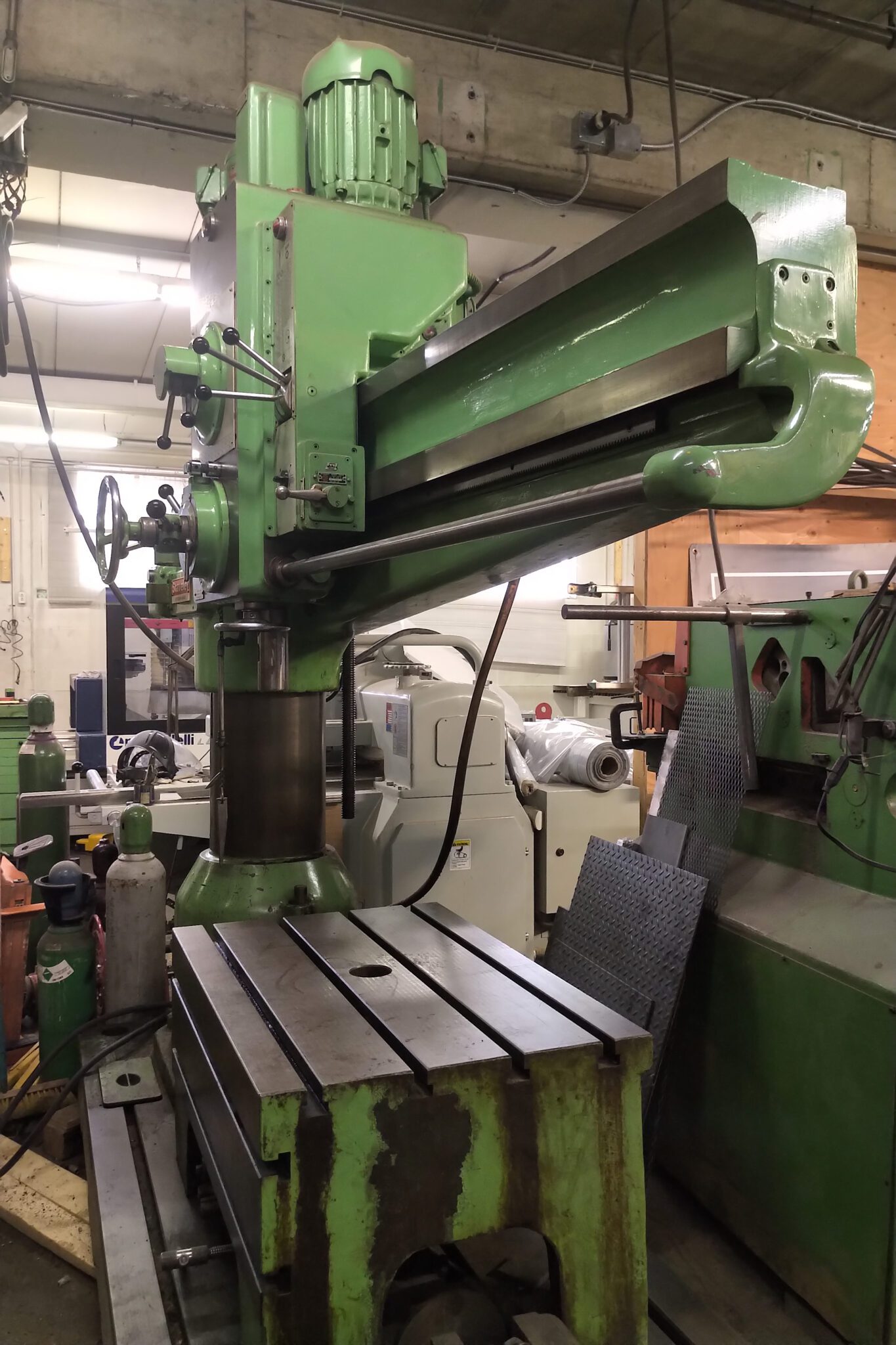

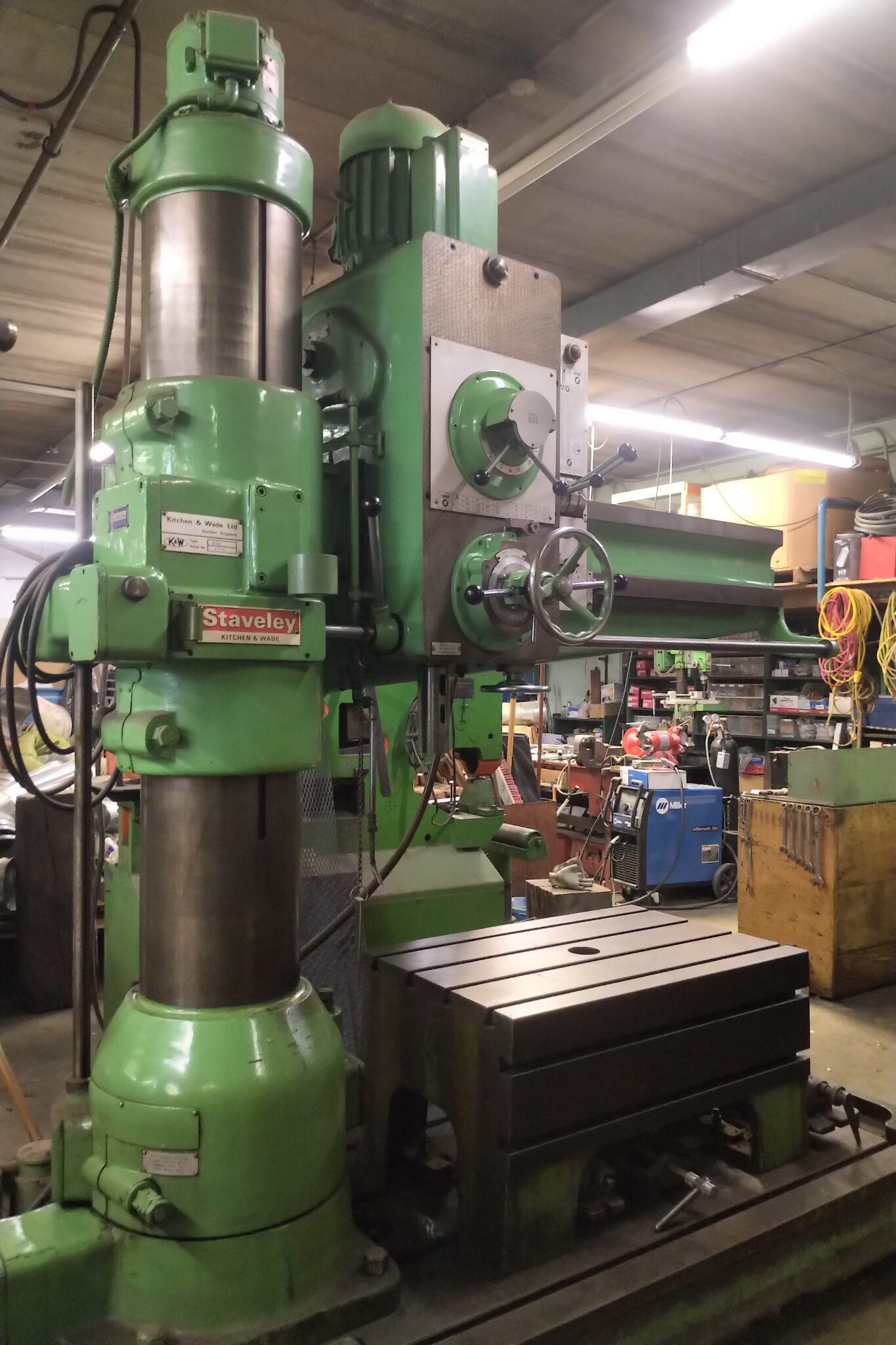

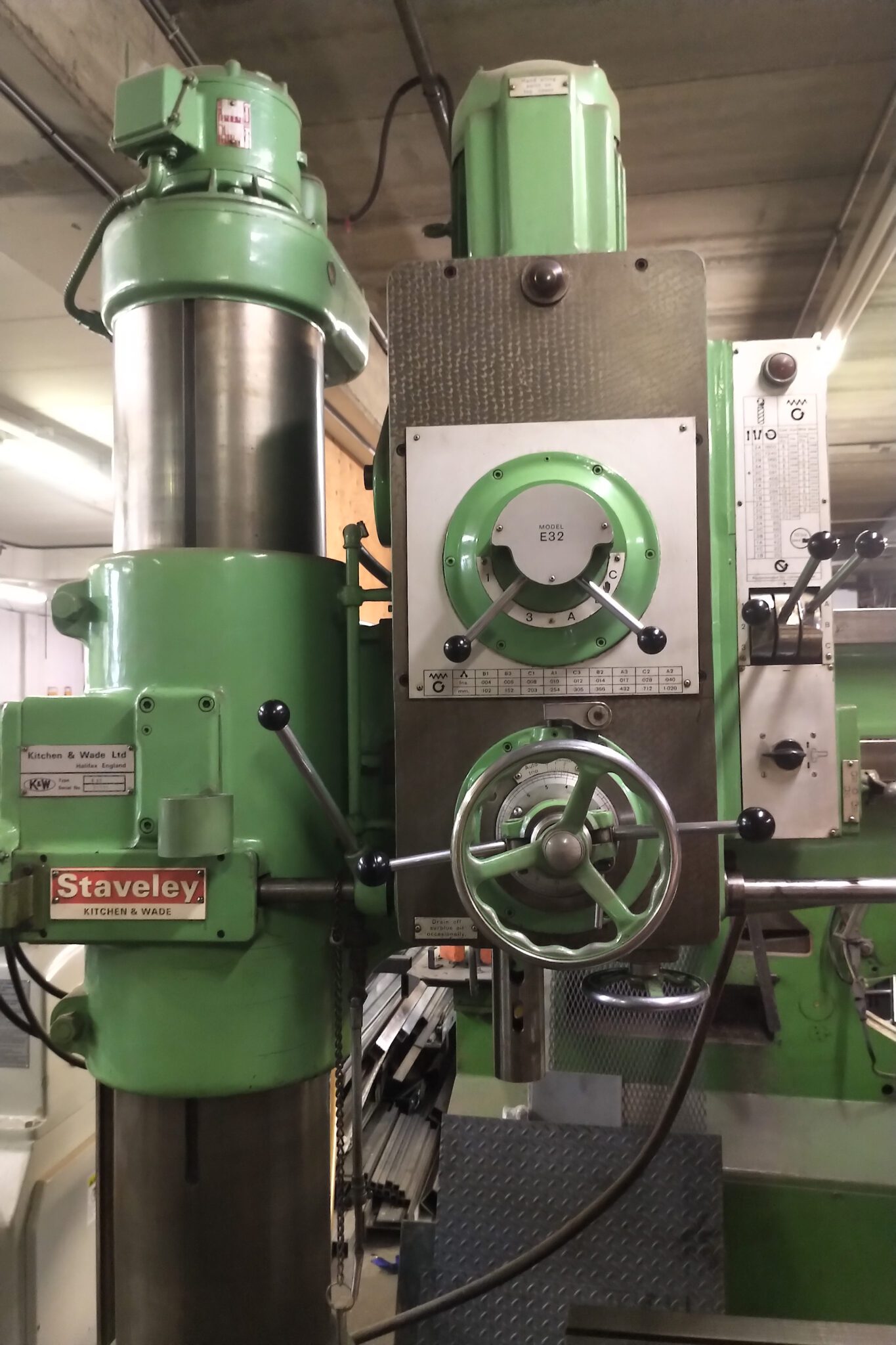

Staveley Kitchen & Wade Radial Arm Drill

Specifications

Model: E32

• 3-Phase

• 5’-0” Arm
• 4’-6” center of quill to column (54” Spindle Radius)
• Head travel (lateral): 45”
• 5MT
• Spindle speed: (18) 25-1600 RPM
• Power feeds (8) 0.004 – 0.040 Inch/Rev
• Quill travel: 13-1/2”
• Quill to base: 23-1/2” – 51-1/2”
• Vertical arm travel: 28”
• 12” Column diameter
• Box Table: 24” Wide x 36” Long x 20” High; T-slots top & side, Center Hole for Boring, [Near Flawless]
• Base: 37” wide x 92” long
• Machine height: 104”
• Power locking column
• Thrust: 2,500 Lb

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
