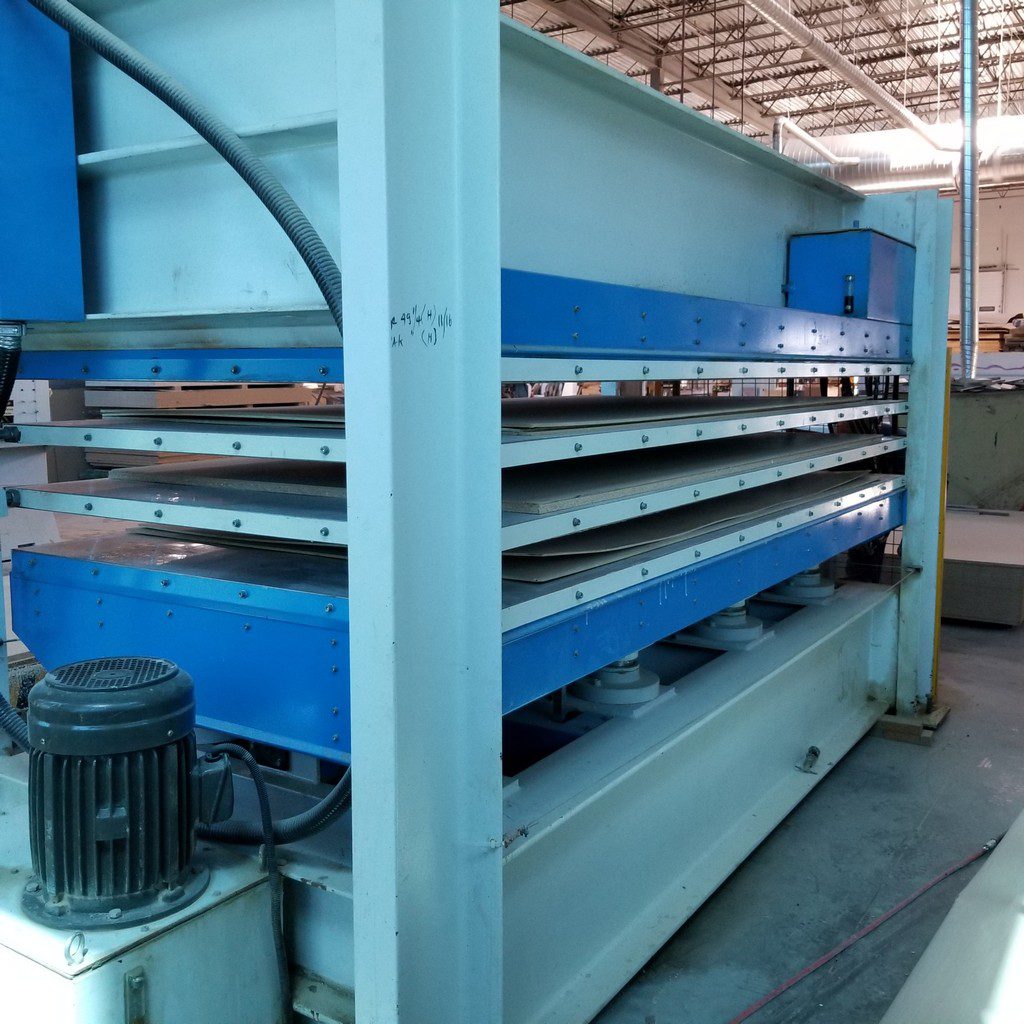

Tongan TA410-120T/3 Hydraulic Hot press

Specifications

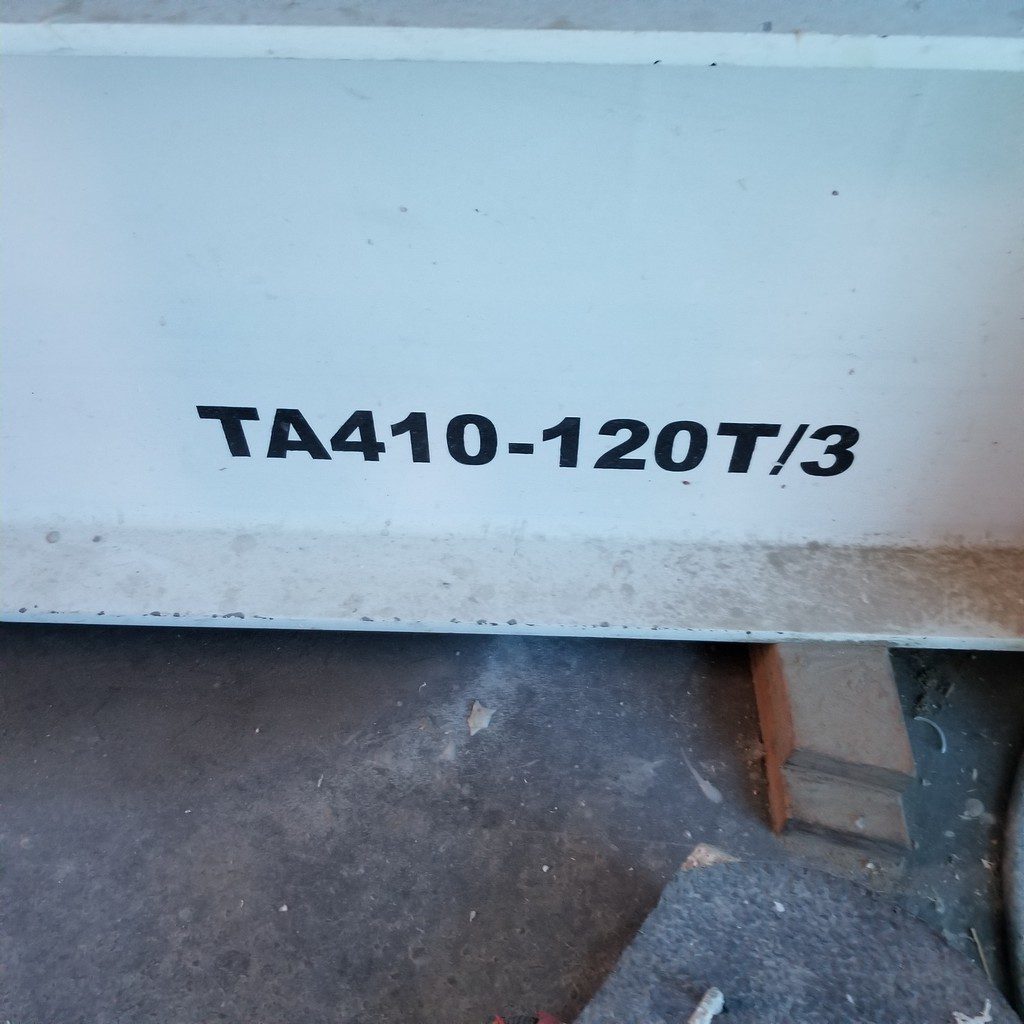

• Model: TA410-120T/3
• Press board dimensions 118.11”(3000mm) x 51.18”(1300mm)
• Pressure of worktable 120 ton, 2.5 kg /cm2
• Opening of press board 3.94”(100mm)
• Quantity of oil-cylinder 8 pcs
• Diameter of oil-cylinder 3.94”(100mm)
• Heating power 54 kw
• Installed power 5.5 kw
• Machine dimensions 161.42”(4100mm) x 64.96”(1650mm) x 86.61”(2200mm)
• Net weight 20,944 Lbs(9500kg)

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
