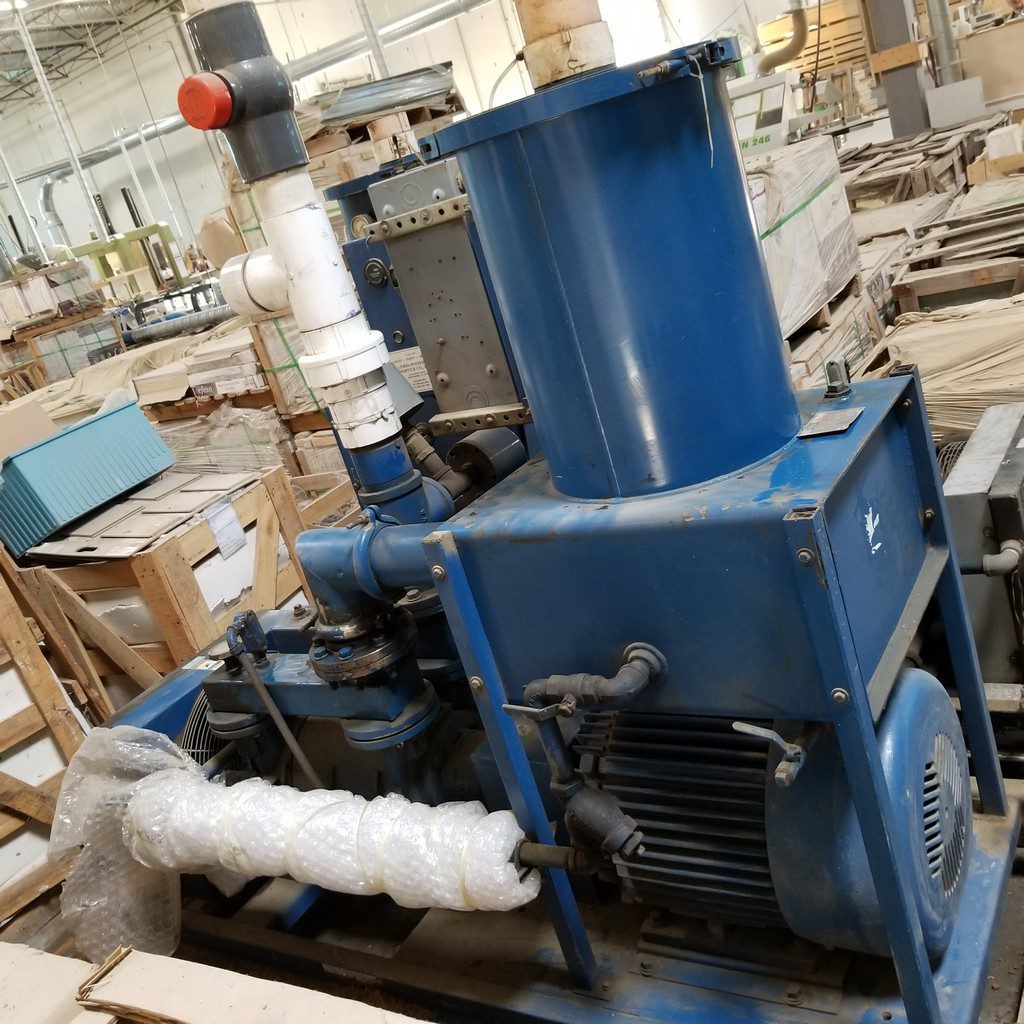

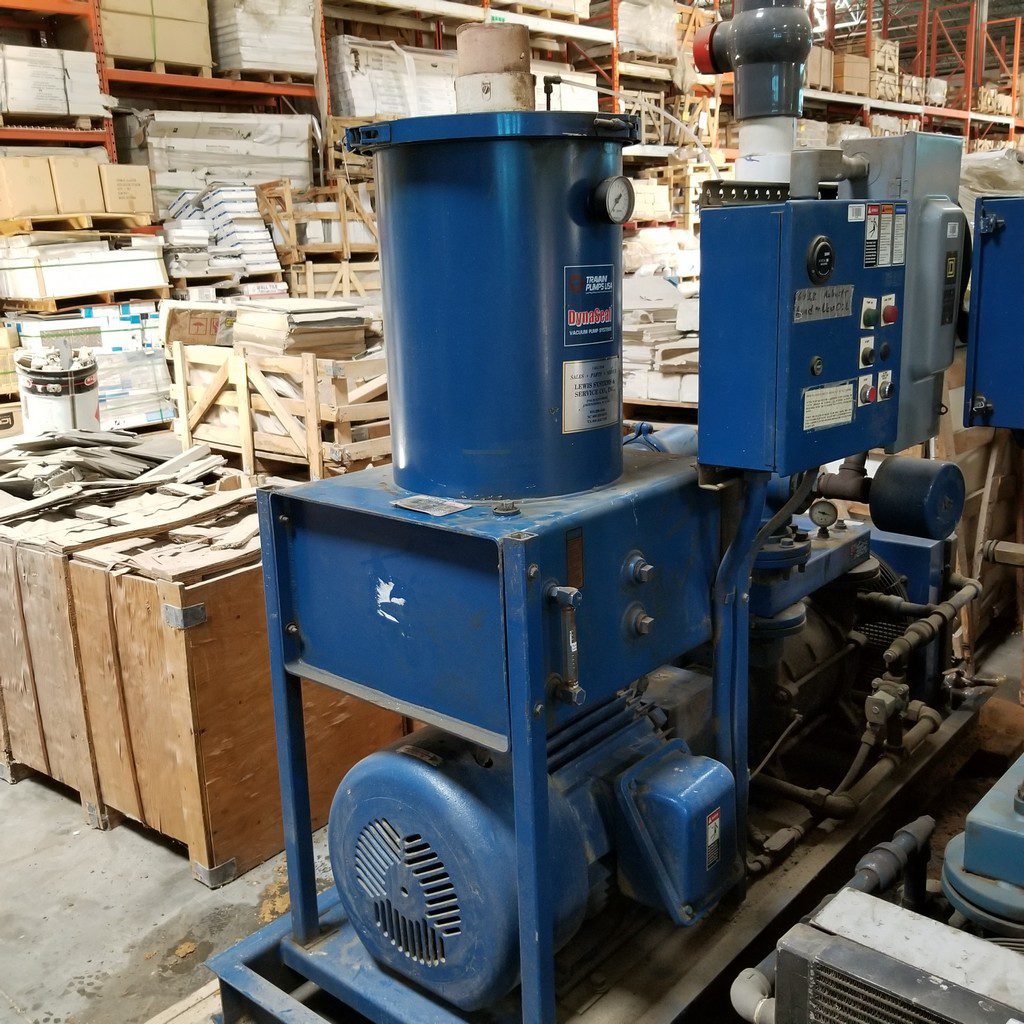

Travaini Dynaseal 324T 40HP Vacuum Pump

Specifications:

• Standard:
  • ≥ 15” Hg Vacuum;
  • 60-120˚F Ambient Temperatures;
  • 180˚F Inlet Gas Temperature Max;
  • 180˚F Discharge Gas/Oil Temperature;
  • If conditions differ, consult factory for recommended design modifications.
• Model TRO500S
• Frame 324T
• Serial N. P32G4902 BB
• 40HP, 3Ph, 230/460V, 60Hz
• ACFM 500
• Length 83”
• Width 35”
• Height 64”
• Weight 2150 Lbs

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
