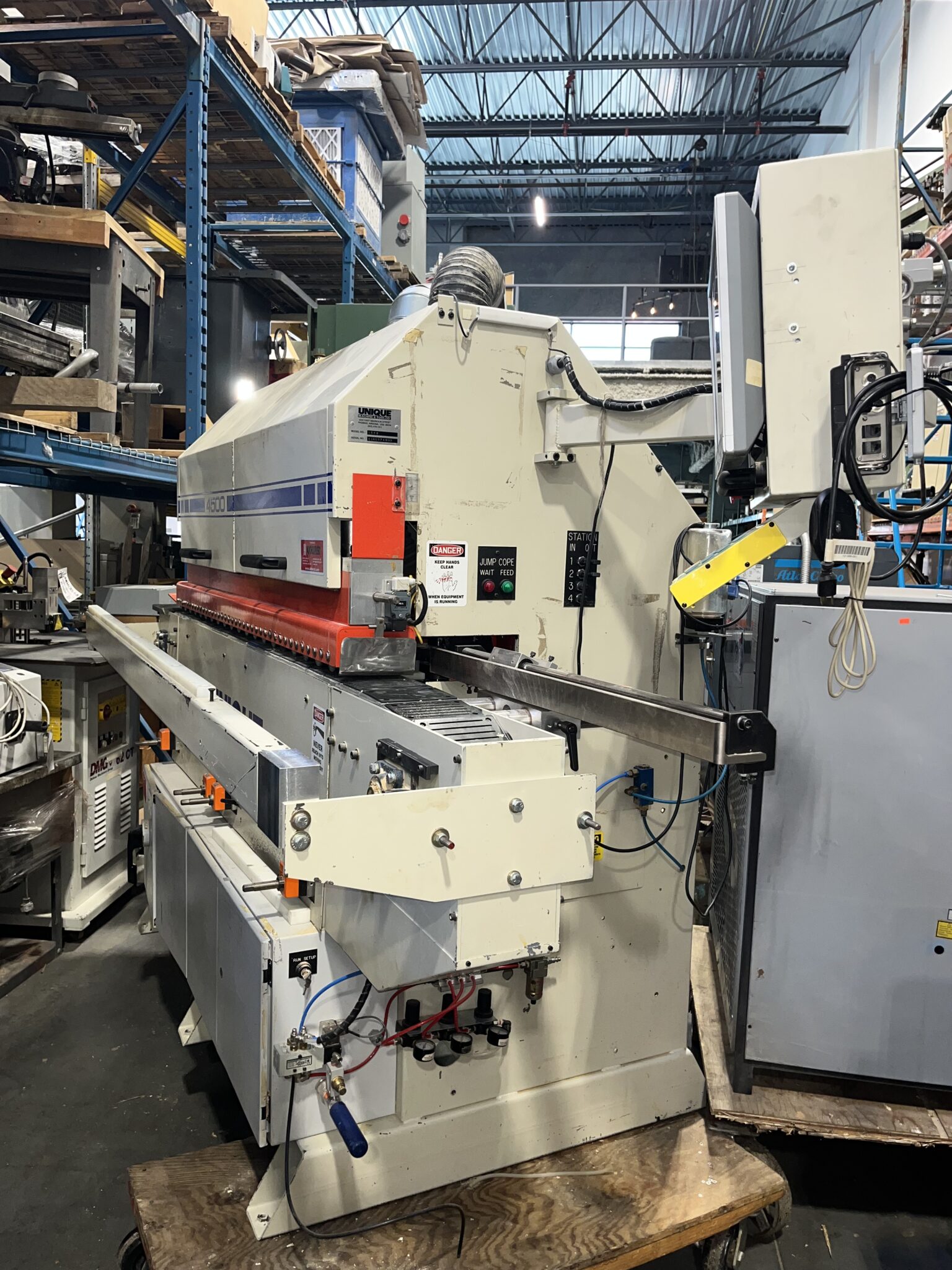

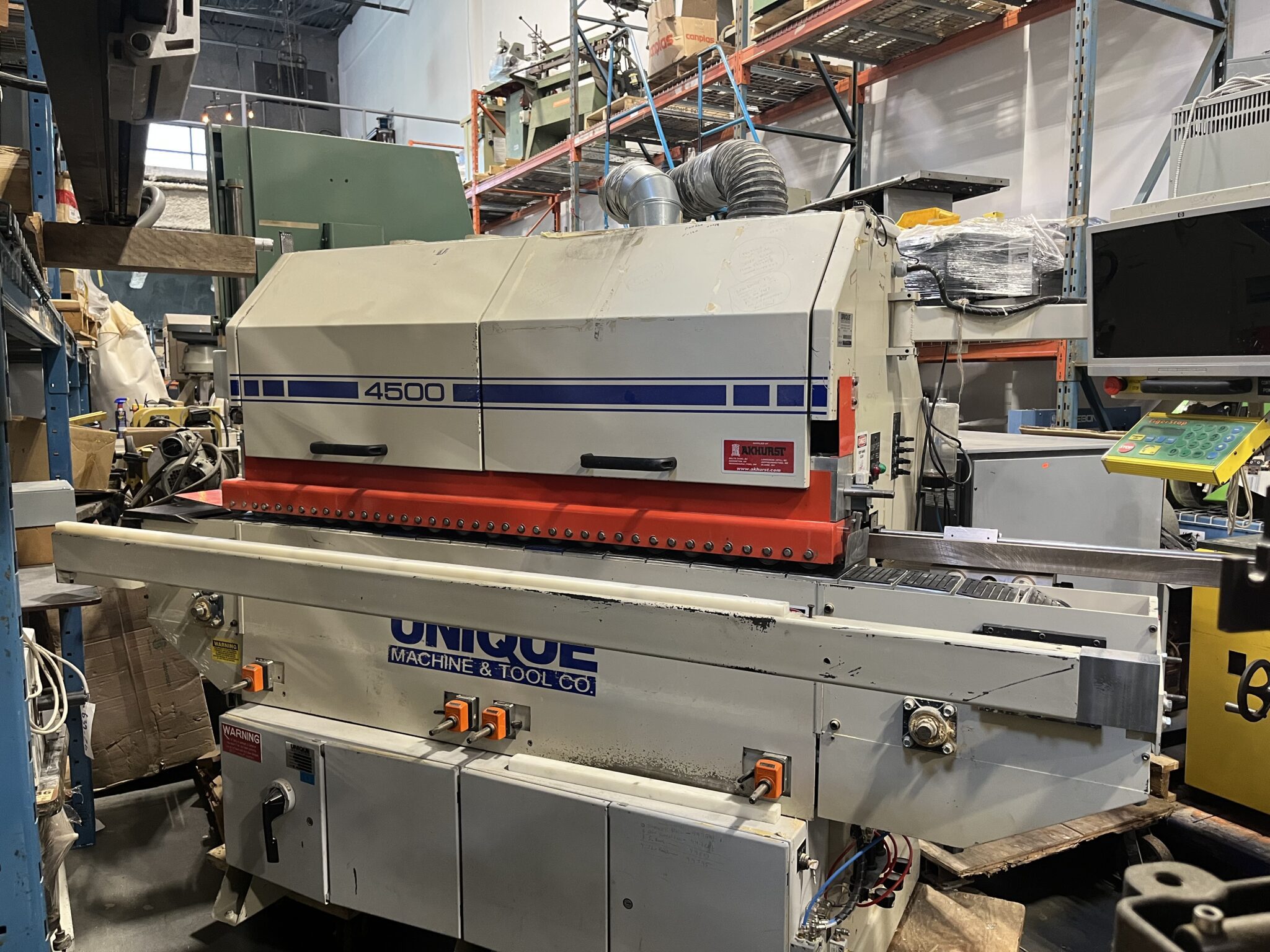

Unique 4500 Shape & Sand

Specifications

• Model No. 4512
• 240V
• 93 A
• 3 Phase
• Mfg Year 2007
• Shaper Motor: (2) 10 HP Himmel Direct Drive
• Shaper Spindle: 1-1/4″ Mandrel, 5″ Stack Height

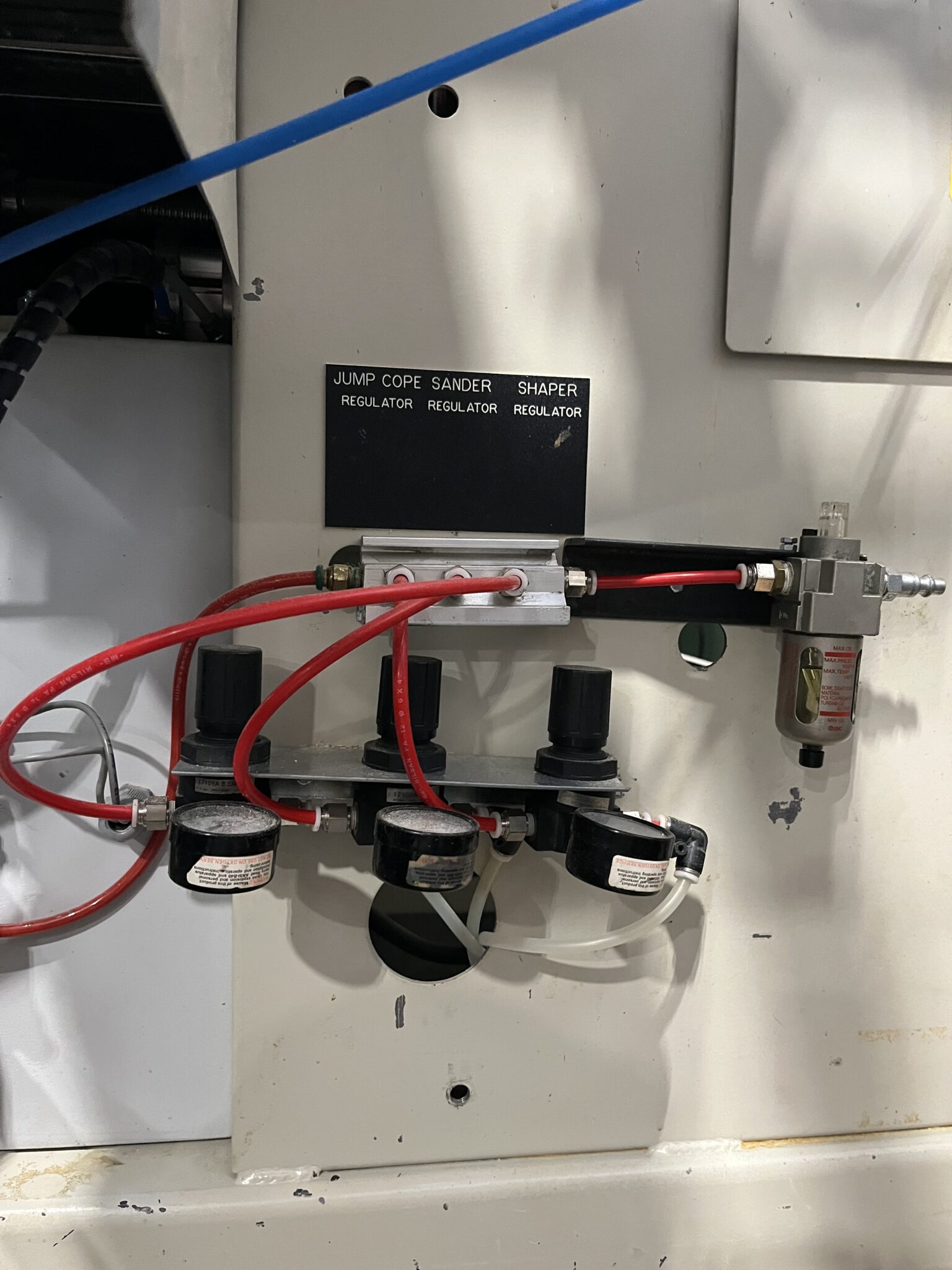

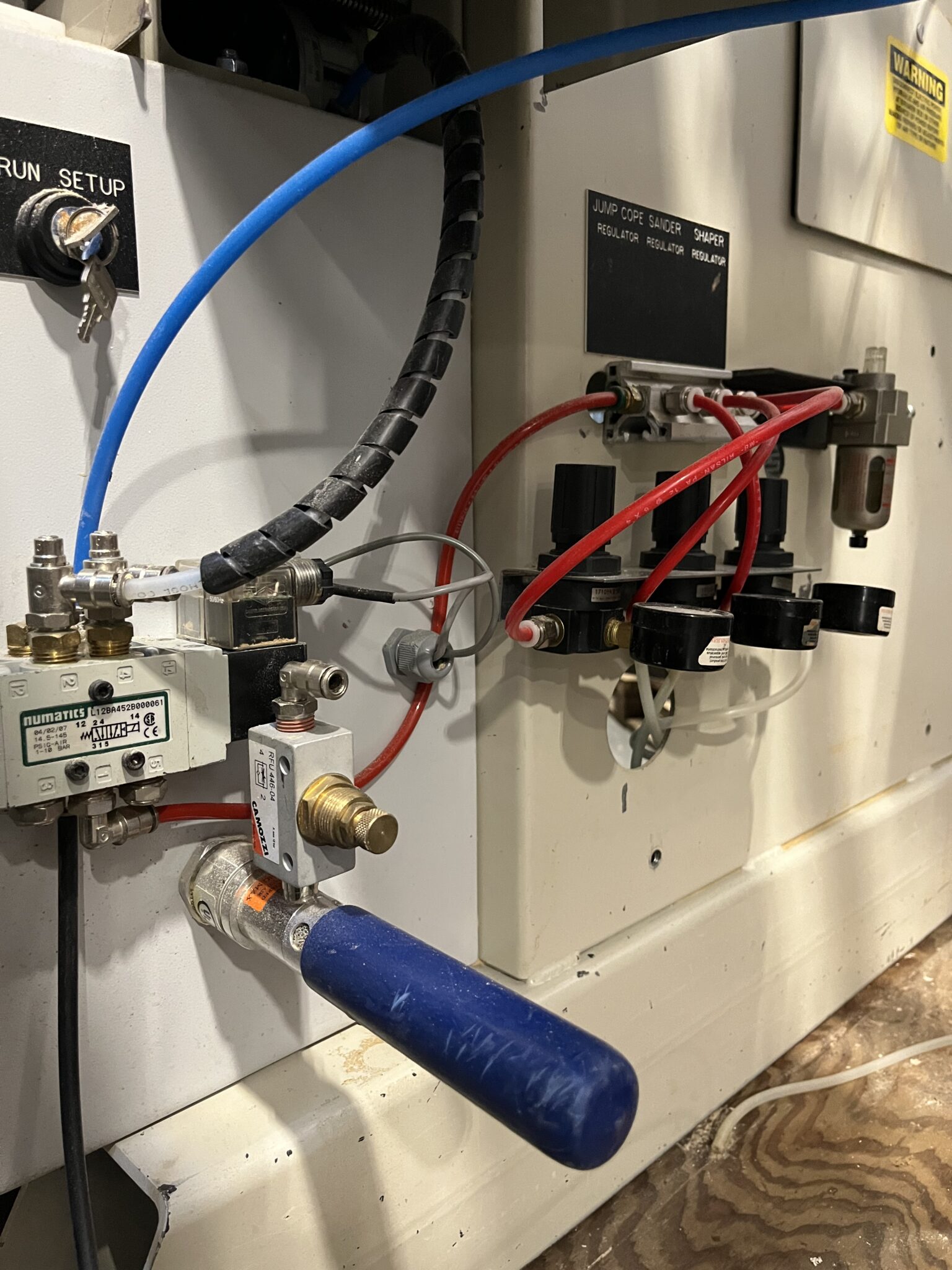

• Compressed Air Requirements: 90 PSI – 2 CFM
• (2) 10 HP Direct Drive Variable Speed Floating Shapers
• 2 HP Floating & Tilting Sanding Motors
• Unique Software Makes Changeover Easy
• 5″ Stacking Capacity With Floating Stations
• Variable Speed Conveyor
• Every Machine With Two Shaper Stations Comes Stander With “Jump Cope” To Eliminate Tear Out Of End Grain
