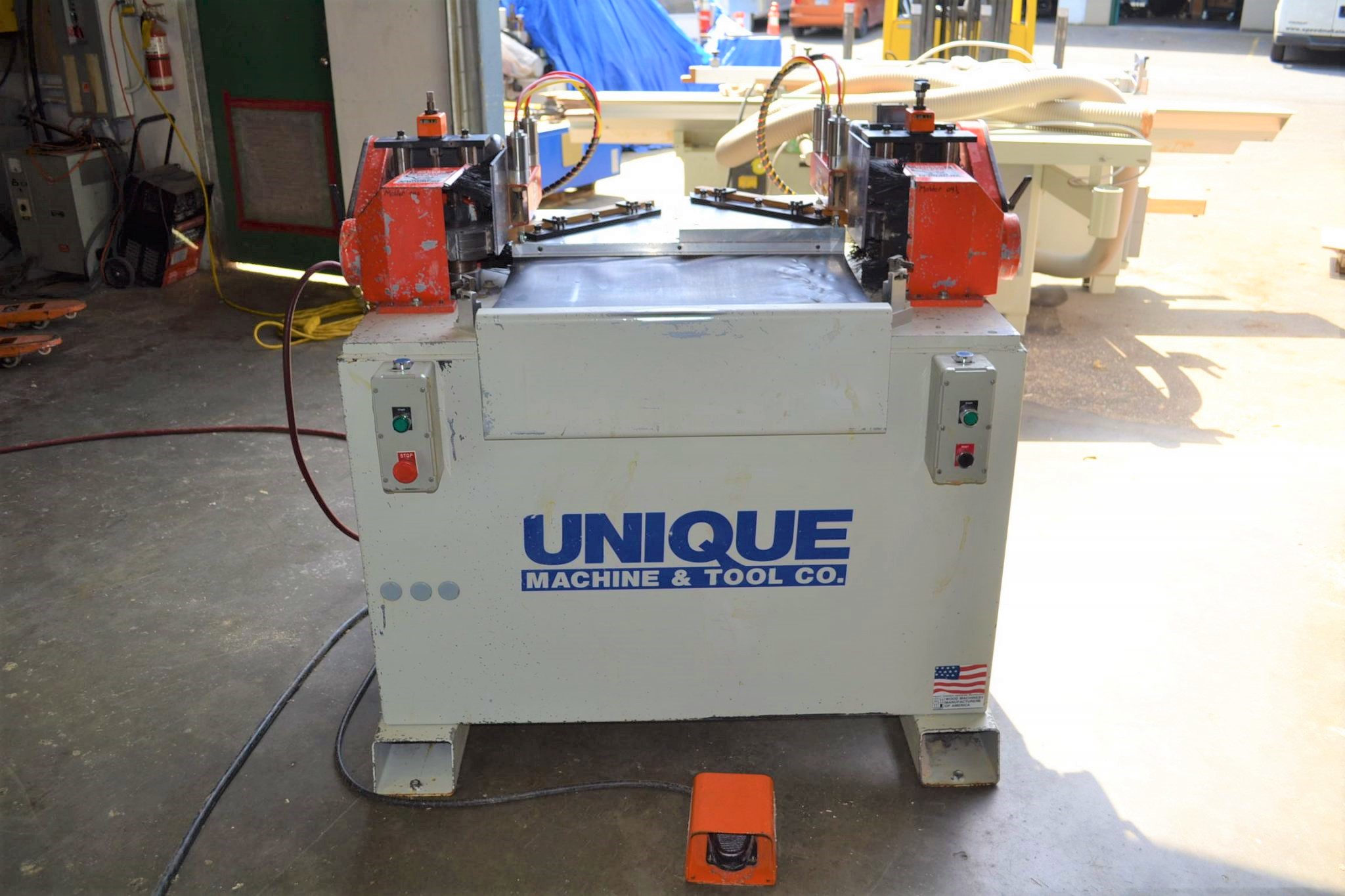

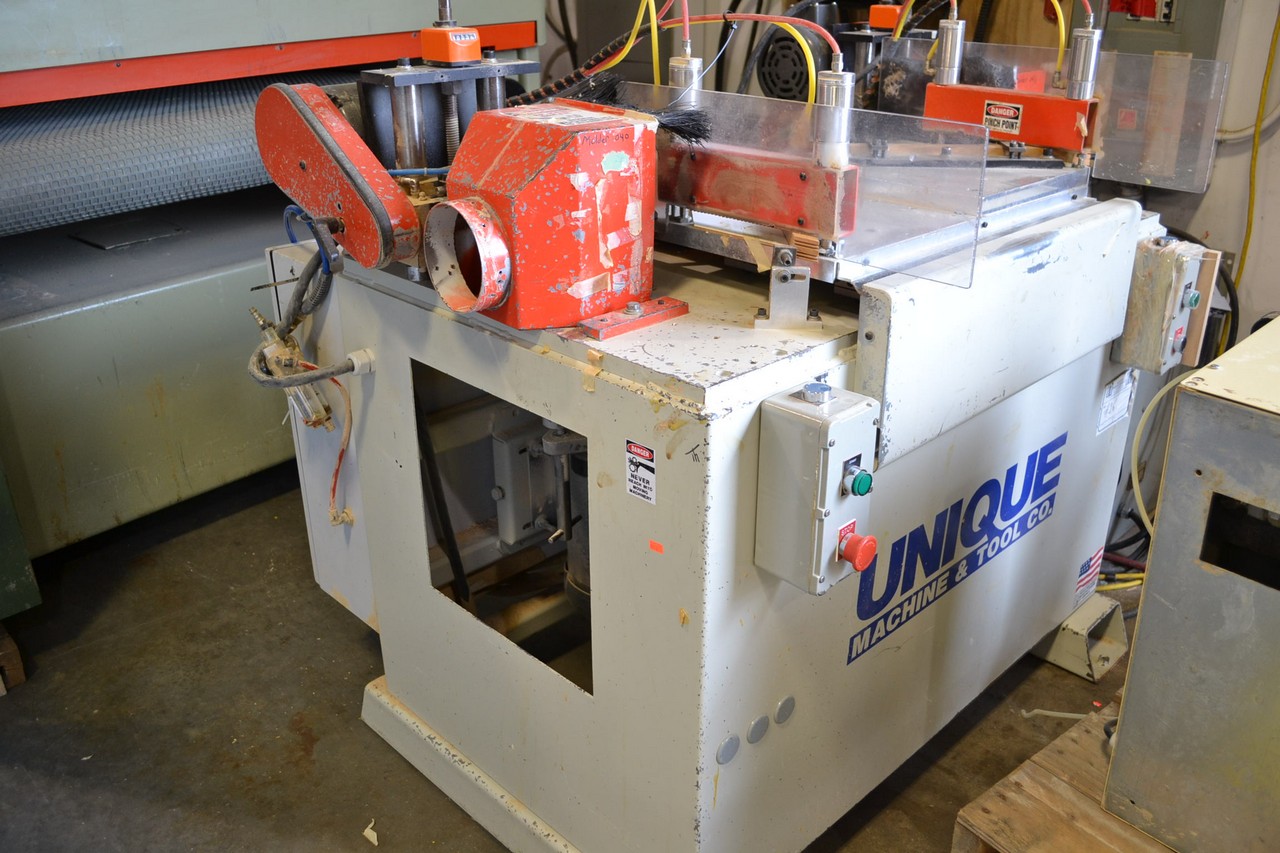

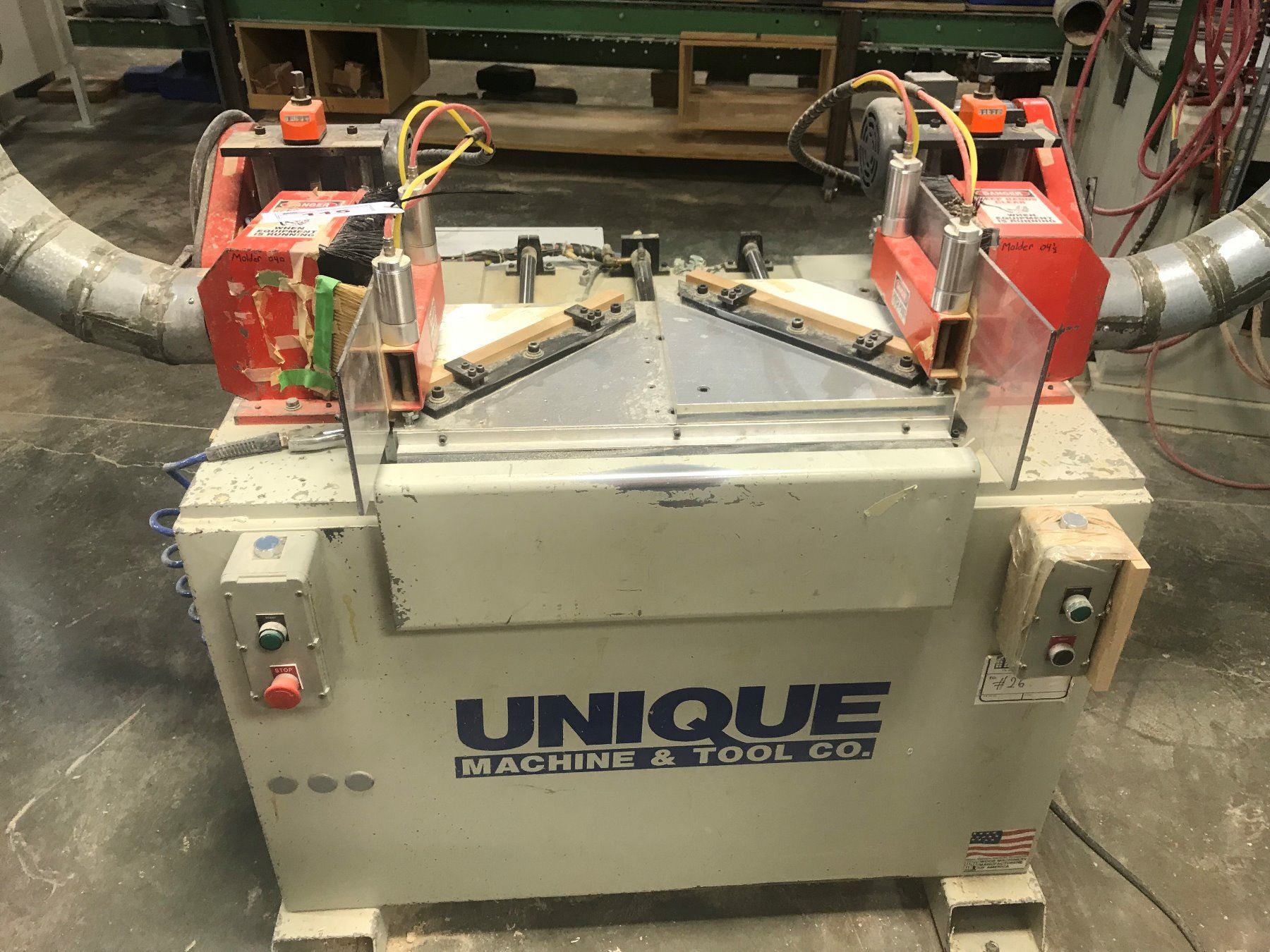

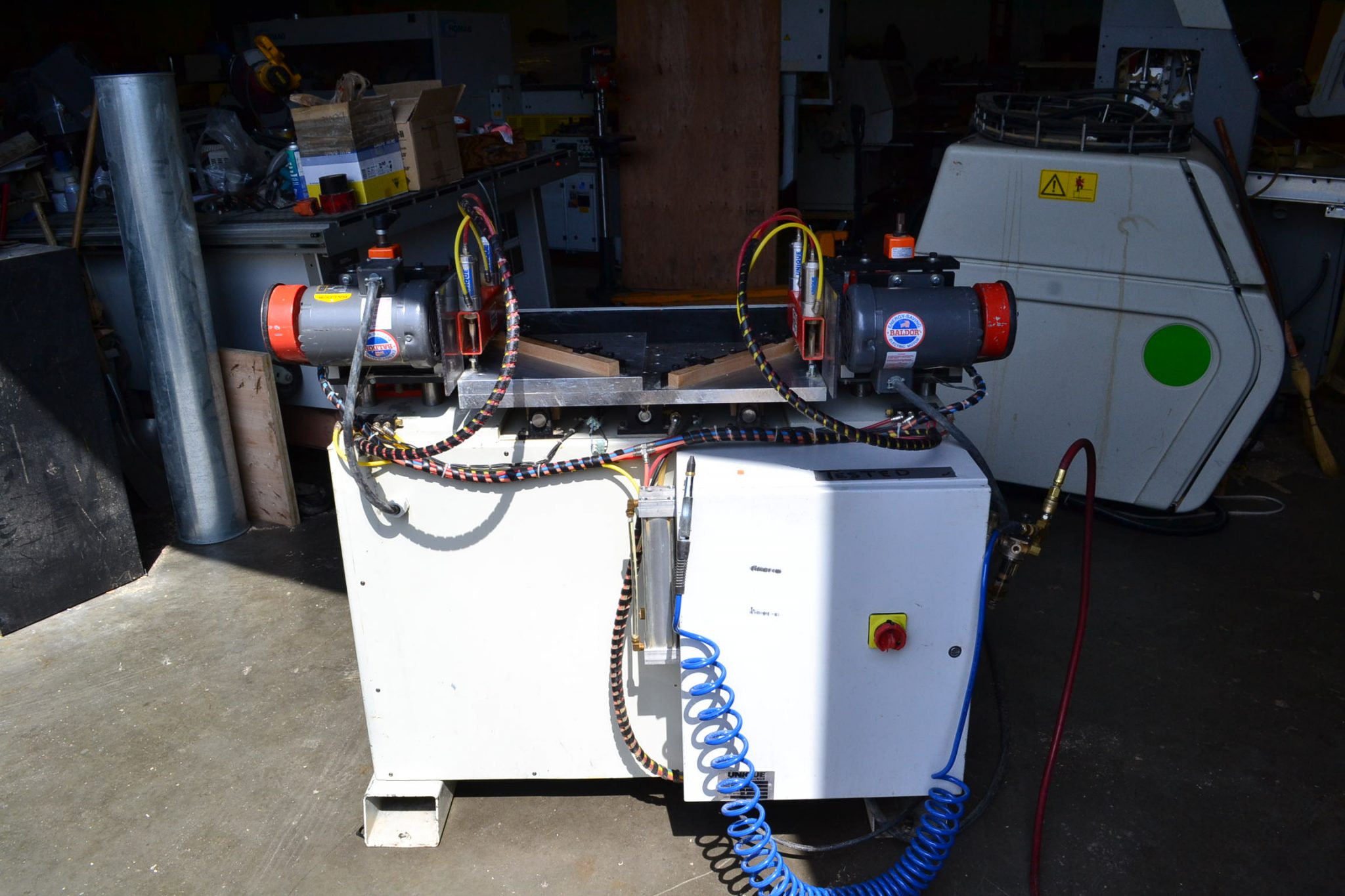

Unique 313 Twin Head head shaper w/twin drill stations & pneumatic

The Model 313 Features An Automatic Cycle With Dowel Drilling For Accurate Alignment Of Mitered Corners. Highly Visible Guards, Hands-Free Foot Valve Achieve Accurate Clamping, And Dual Hand Actuated Start Buttons Make This Machine Both Easy And Safe To Operate. Industry Tested, The Unique Finger Joint Provides The Strongest Joint On The Market.

Manufacturer Specifications:

• 5HP Belt-Drive Motors
• 1″ Material Thickness Capacity
• Compressed Air Requirements: 90PSI – 1 CFM
• Dust Collection: (2) 5″ Diameter 1400CFM
• Machine Weight: 1,600lbs
• Work Height: 3‘
• Machine Footprint: 85″ Width X 46″ Depth

Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.

Note: PDF Copy of Operating Instruction Manual Available.
