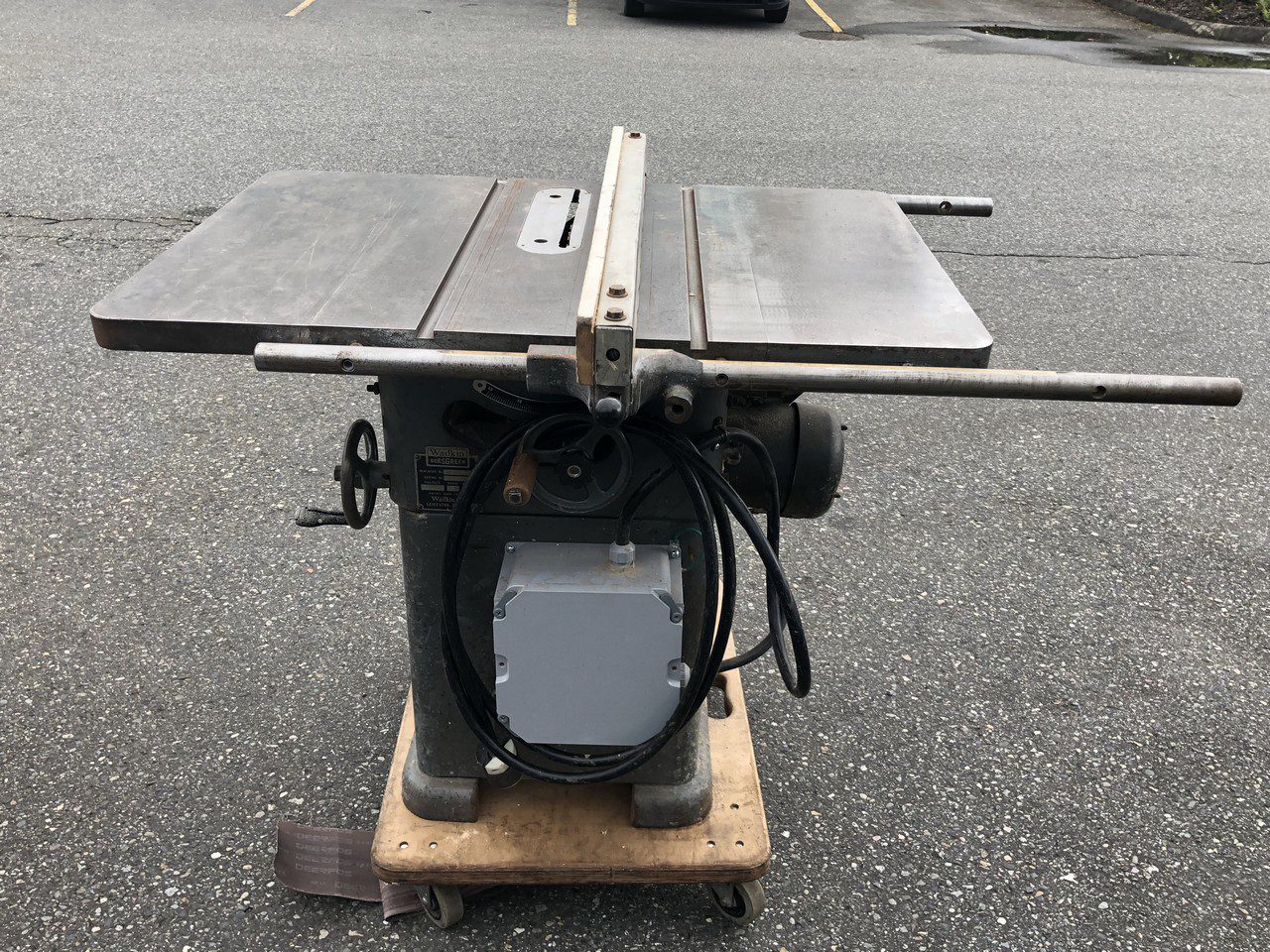

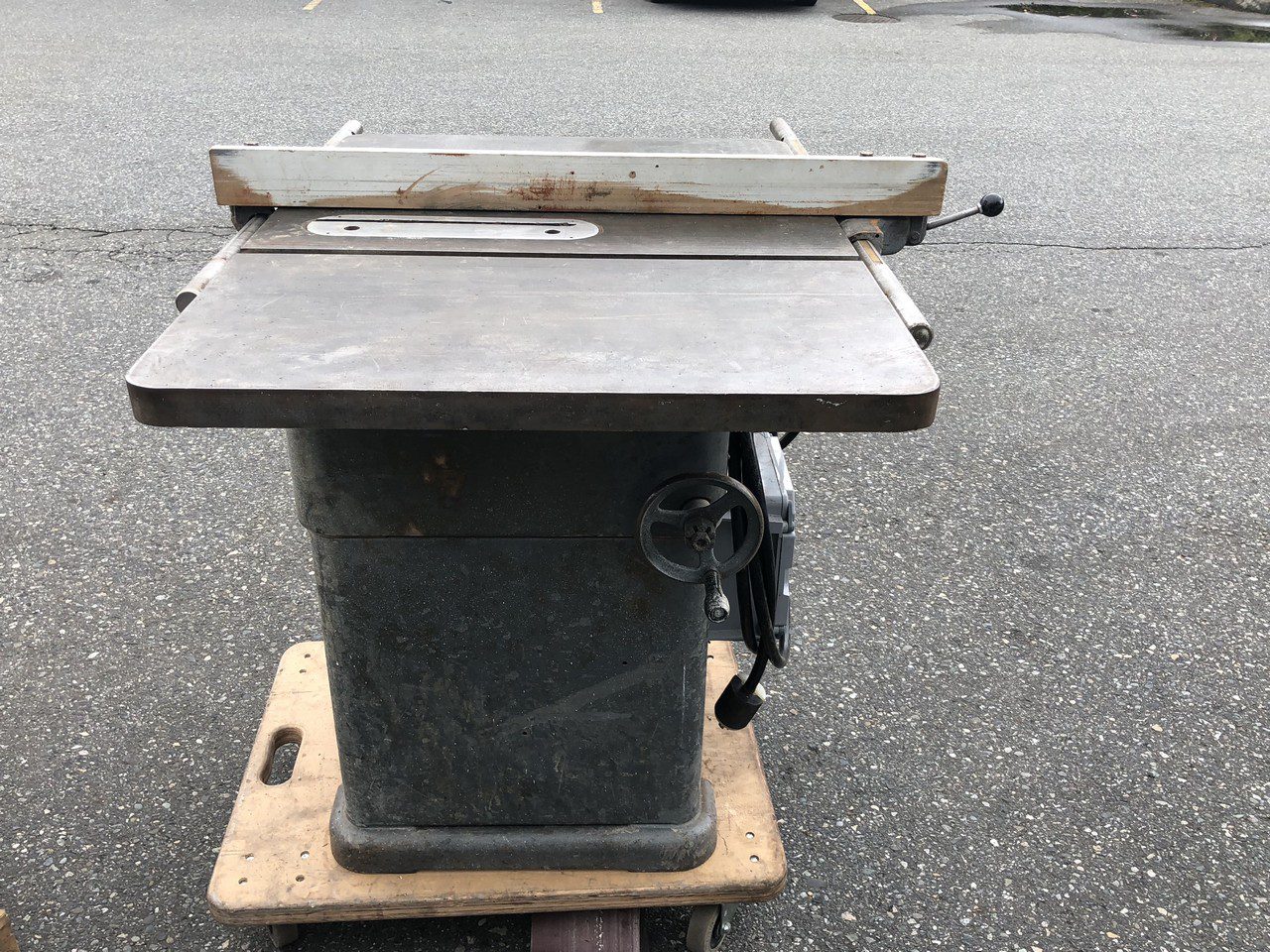

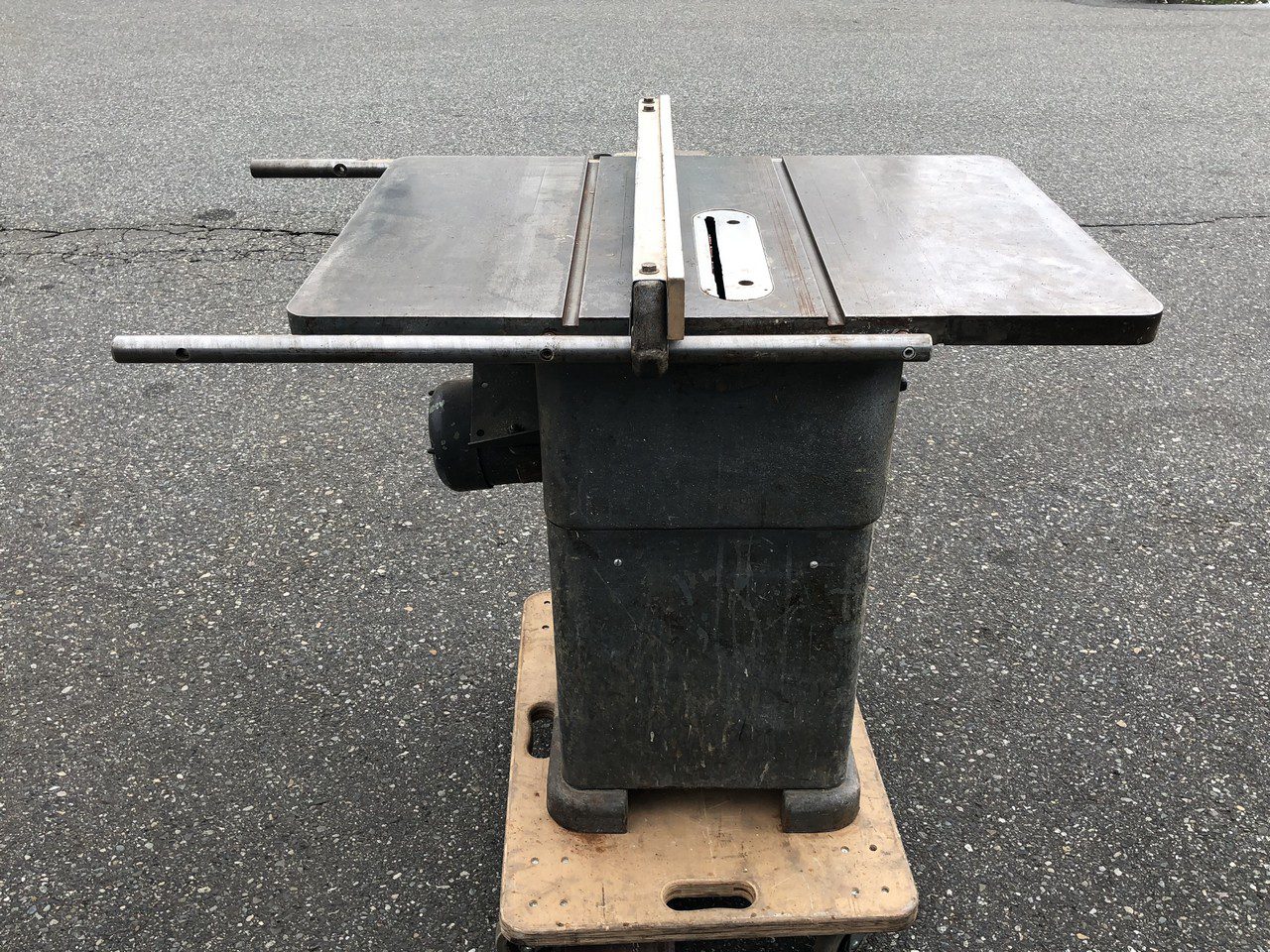

Wadkin Bursgreen 10″ AGS tilting arbor saw

Specifications

• Standard’ diameter of saw: 10″
• Maximum diameter of saw for occasional deep cutting: 12″
• Diameter of saw arbor: 5/8″
• Maximum depth of cut 10″ saw: 3- 1/8″ (79.4 mm)
• Maximum depth of 450 cut 10″ saw: 2-1/8″ (54 mm)
• Maximum depth of cut 12″ saw: 4-1/8″ (105 mm)
• Maximum depth of 450 cut 12″saw: 2-7/8″ (73 mm)
• Maximum size of dado or grooving set recommended: 6″ dia x 13/16″ wide
• Maximum size of circular cutterblock for moulding: 4-7/8″ dia x 3/4″ wide
• Speed of saw spindle: 385 rpm
• Size of table: 20″ x 48″
• Saw to front edge of table with saw in top position(lO”dia saw): 13″
• Fence movement to right of saw: 25- 1/2″
• Saw cants to right: 450
• Ripping fence: 28″ long x 4″ high
• Table height: 34″
• Horse Power of Motor: 3 Phase and 3 Hp

Please call for more information.
