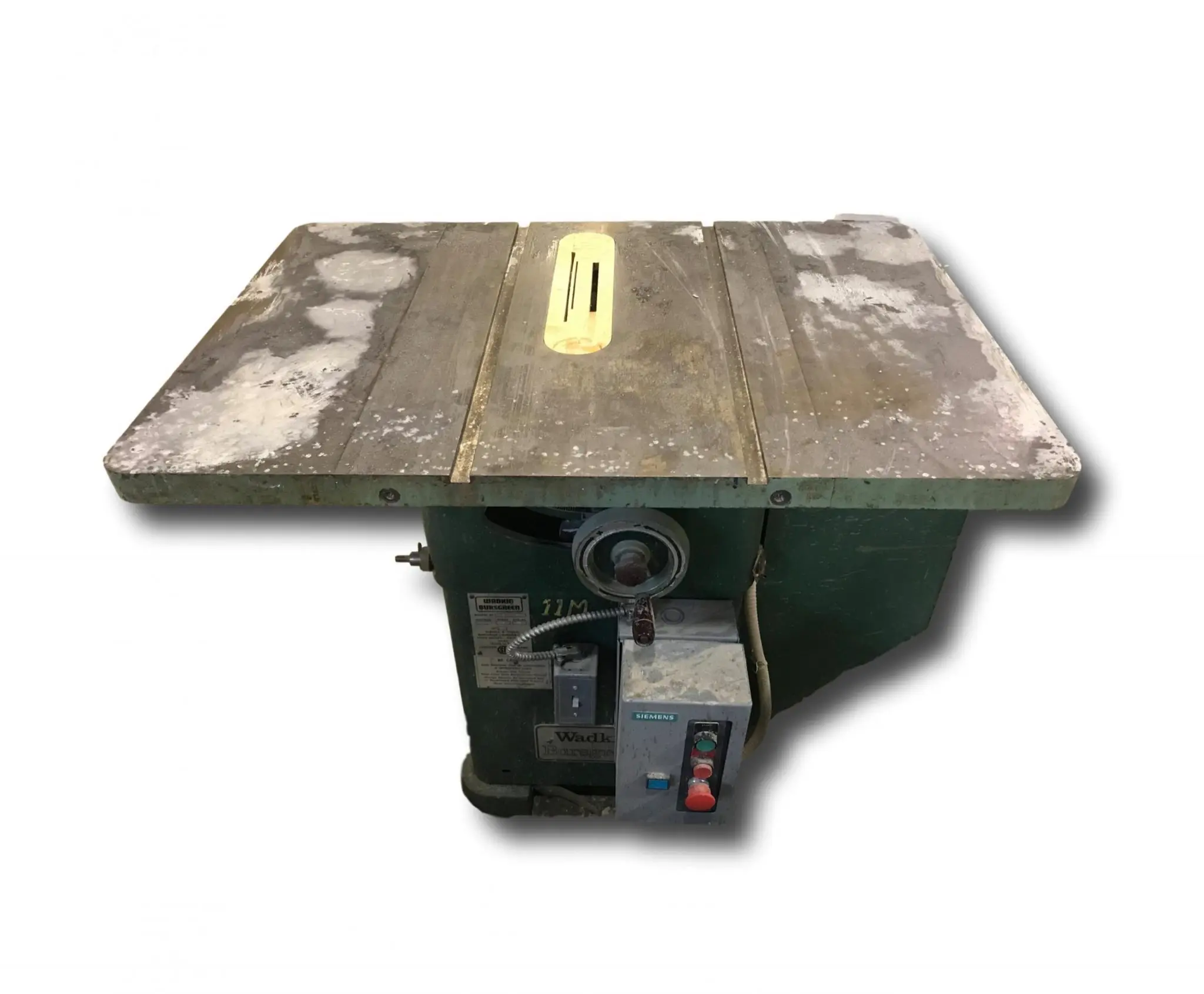

Specifications
- Standard’ diameter of saw: 10″
- Maximum diameter of saw for occasional deep cutting: 12″
- Diameter of saw arbor: 5/8″
- Maximum depth of cut 10″ saw: 3- 1/8″ (79.4 mm)
- Maximum depth of 450 cut 10″ saw: 2-1/8″ (54 mm)
- Maximum depth of cut 12″ saw: 4-1/8″ (105 mm)
- Maximum depth of 450 cut 12″saw: 2-7/8″ (73 mm)
- Maximum size of dado or grooving set recommended: 6″ dia x 13/16″ wide
- Maximum size of circular cutterblock for moulding: 4-7/8″ dia x 3/4″ wide
- Speed of saw spindle: 385 rpm
- Size of table: 20″ x 48″
- Saw to front edge of table with saw in top position(lO”dia saw): 13″
- Fence movement to right of saw: 25- 1/2″
- Saw cants to right: 450
- Ripping fence: 28″ long x 4″ high
- Table height: 34″

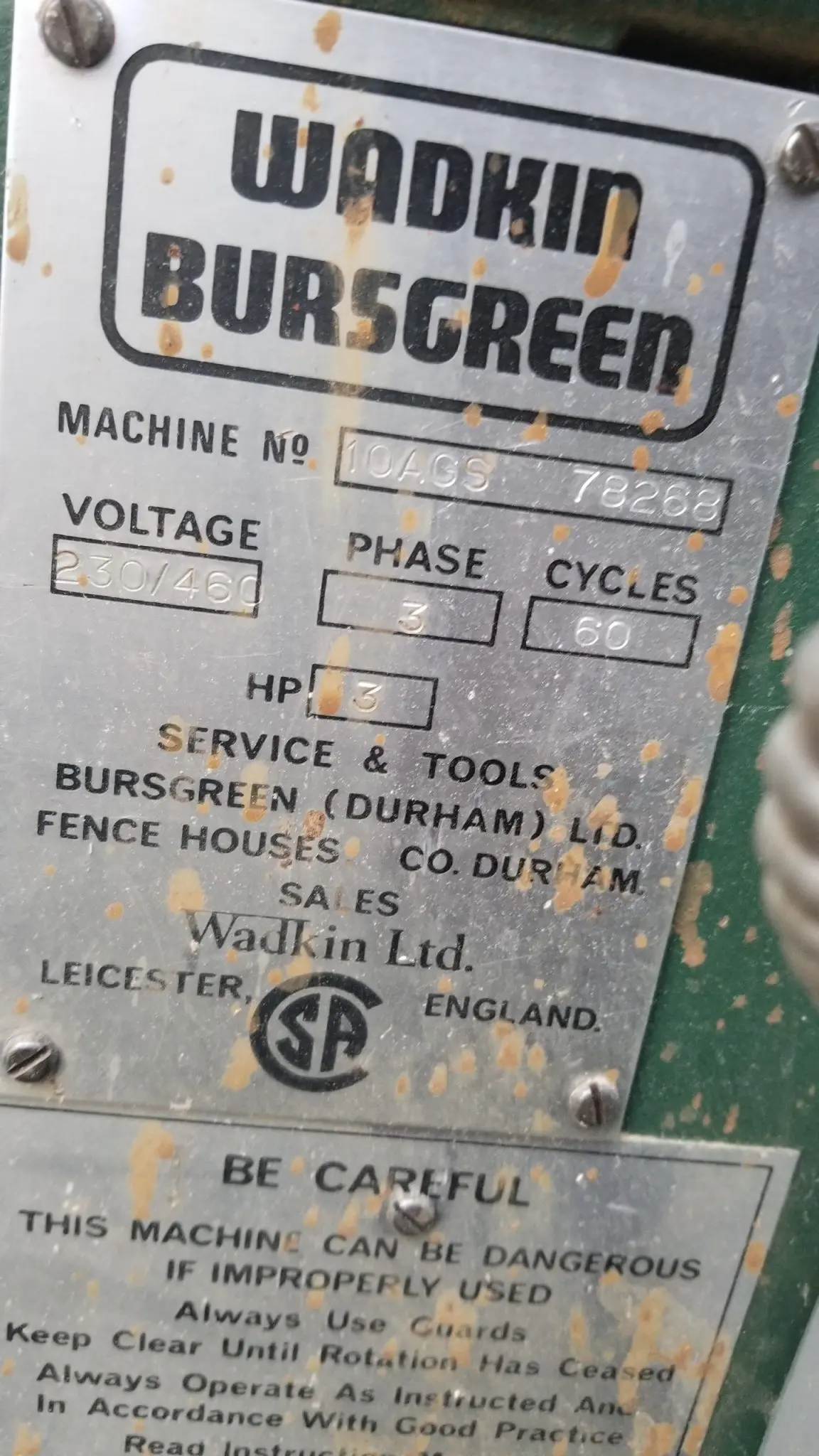

- Horse Power of Motor: 3 Phase and 3 Hp
Please call for more information.
