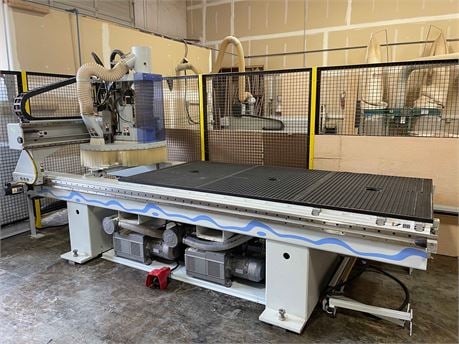

Weeke BHP 007/480

Used Weeke BHP 007/480 machinery for sale.

Here are the Specifications of this CNC machine;

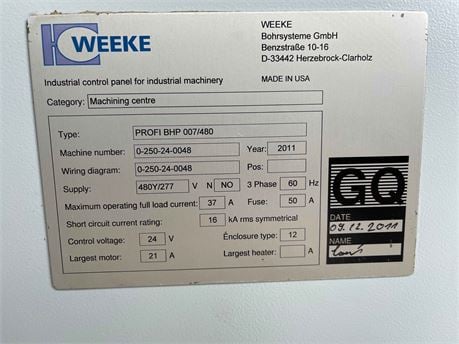

• Brand: Weeke
• Model: PROFI BHP 007/480
• Machine No. 0-250-24-0048
• 480Y/277 V
• 3 Phase
• Manufacture Year: 2011

49″ x 99″ phenolic router table

• Three (3) vacuum zones
• Each zone equipped with its own Becker vacuum pump
• Pneumatic reference pins
• Vacuum gauge

Router

• 16 HP
• HSK
• Quick change
• CW/CCW rotation
• Variable RPM
• Air-cooled
• Air blowoff nozzles

Tool Changer

• Eight (8) position lateral

Drill unit

• Seven (7) vertical spindles
• Tool length measurement device
• Pneumatic dust port gates
• Three (3) Becker “Picchio 2200” vacuum pumps
• 4 HP each
• 108 m/hr. capacity each

PC control

• Standard PC, monitor, keyboard and mouse
• Windows operating system
• Beckhoff PLC
• Foot pedal control
• Safety fencing
• Photo light barriers (taken out of service in photos)

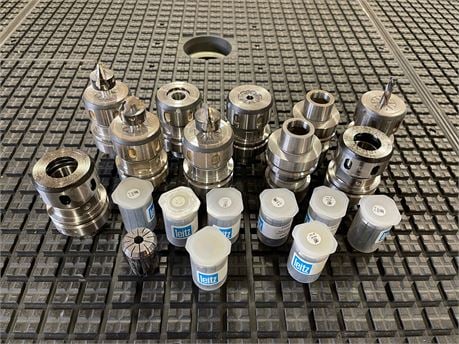

• HSK tool holders, collects and tooling as pictured

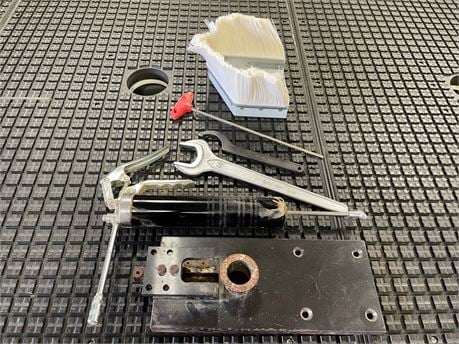

• Tool kit
• Manuals

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge. Please call for more information.
