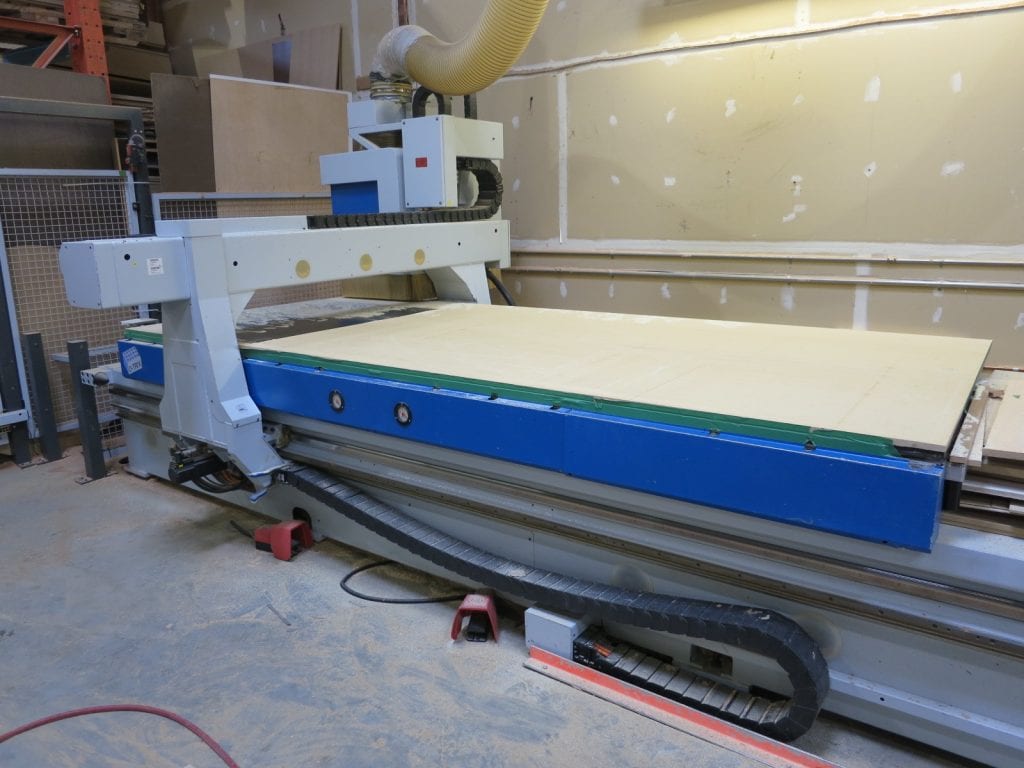

Weeke Optimat BHP 200 Nesting machine

Specifications:

• Number of vertical drilling spindles 10
• Vertical drilling spindle power 1.5 kW
• Vertical drilling spindle speed 1,500 to 7,500 rpm
• ATC router spindle power (power constant from 9000 rpm to 18000 rpm) 9.0 kW; 12.0 HP
• ATC router spindle speed 1,200 to 24,000 rpm
• Tool magazine capacity 8 tools
• HSK63 tool holders supplied 2
• Collets for HSK63 tool holders 2
• Vacuum pump capacity 1×500 M3/hr
• Working length 3700 mm/145.67”
• Working width 1550 mm/61.02”
• Max. drilling depth for through holes 55 mm/2.166”
• Axis stroke/positioning speed
• X-axis 4750 mm/50 M/min
• Y-axis 1960 mm/40 M/min
• Z-axis 230 mm/20 M/min


  Utility Requirements

Electrical

• Operating Voltage 230/460 Volts / 3 Phase / 60 Hz
• Amperage Service 100/63 Amps @ 230/460 Volts
• Control Voltage 24 Volt
• Total Connected Load 31 kW

Dust Extraction

• Connection Size(s) 250 mm
• Air Velocity (minimum) 28 m/sec 92 ft/sec
• Static Pressure Minimum 2200 Pascal
• Air Volume 4950 m3/h 2915 cfm

WEEKE BHP 200 Flat Table CNC Machine with ATC & Boring:

5′ x 12′ Bridge Gantry” machine; “O-TRIX” HI-FLOW
vacuum table for nested base processing.

Working field:
“X” Axis is 3,700 mm (145.6″), “Y” axis 1,550 mm
(61″), “Z” axis stroke is 14.5″ (370 mm); max. material
thickness of 3.9″ (99 mm).

Positioning speed:
“X” Axis is 165 FPM (50 MPM), “Y” axis 131 FPM (40
MPM), “Z” axis is 65 FPM (20 MPM); machine head
travels on THK linear motion guides on all axes.

Work Table:
“O-TRIX” HI-FLOW vacuum table for nested base
processing; divided into (2) work zones, (8) pneumatic
pop-up positioning stops.

Boring Unit:
(1) 4 HP (3kW) motor, variable speed for 1,500 – 7,500
RPM; (10) independent vertical spindle; (5) in “X” axis
& (5) in “Y” axis.

Machining:
(1) 12 HP (9 kW) High speed constant duty Router
with HSK F63 adaptor;

(1) 8-Position tool changer magazine located at the
back side of the spindle carriage + (1) additional
aggregate tool holder located at the end of the machine.
Router is powered by an 14 kW frequency inverter
w/programmable speed from 1,250 – 24,000 RPM,
constant torque achieved at 9,000 RPM, RH or LH
rotation.

Operator & Machine Control:
IPC Front-End with: WEEKE “MMC” + Windows “XP”
+ WoodWOP 5.0 operating system; 14″ color graphic
monitor; keyboard & mouse for data entry

CD R/W Disk drive; 1.0 GB hard drive; 32-bit
processor; EtherNET interface for possible LAN
connection to office PC; RS-232 serial interface;
486/66 MHz;
BECKHOFF PLC controller for (3) axes, linear, circular
& helical interpolation;

All control components contained in a separate freestanding
dust free, air conditioned cabinet.
Wood/WOP can be programmed off-line with the same intuitive icon-driven software that the operator has on machine controller

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.

Please call for more information.
