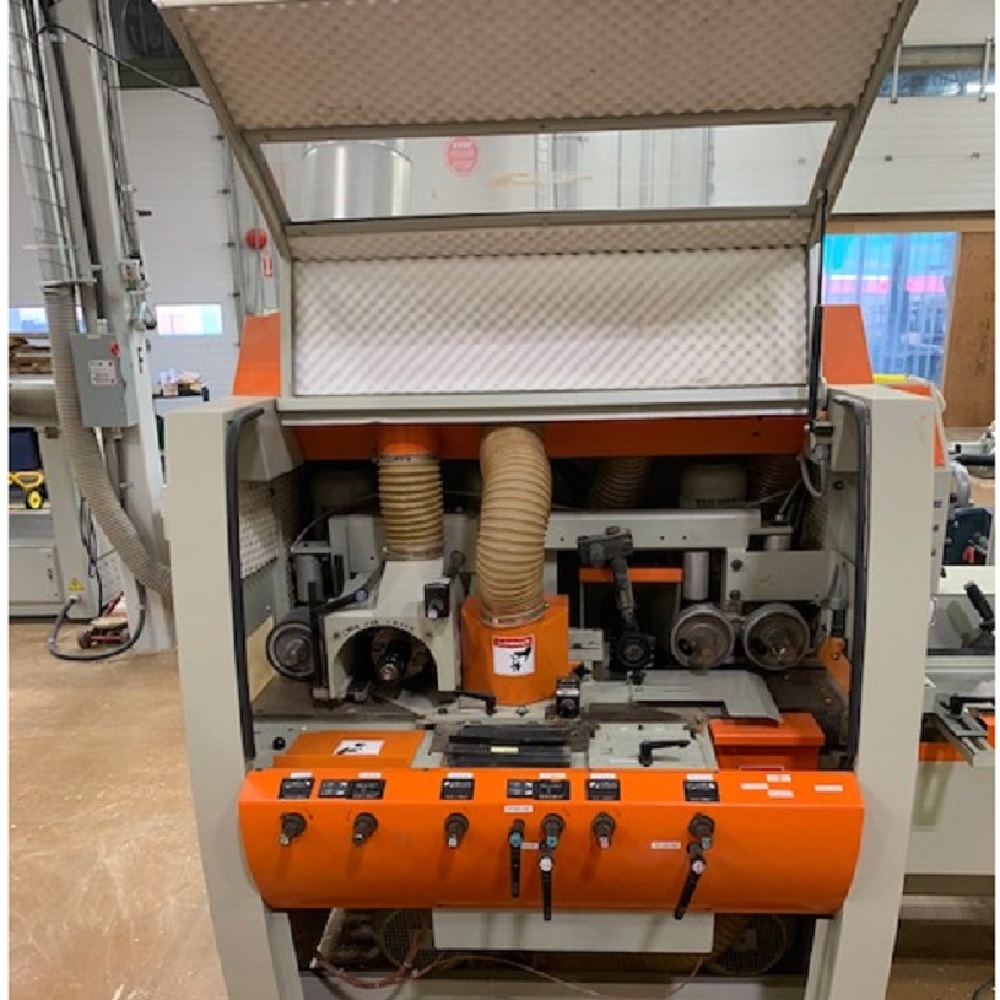

Weinig Quattromat 23P Moulder

Specifications:

• Model Q 23 P
• Serial 86918
• 600 V
• 3 Phase
• 4-Head (B-R-L-T)
• Profile and “S4S” Moulder, working capacity of 9-1/16″ x 4-3/4″
• Spindle sequence:
  • Bottom Head: 7.5 HP
  • Right/Left Heads: 10 HP
  • Top Head: 15 HP
• Spindles with: 1-1/2″ Dia., cutterhead speed of 6,000 RPM
• Mechanical digital readouts for setting accuracy of all spindles.
• Feed: Single feed speed of 26 FPM, 1 HP direct feed drive.

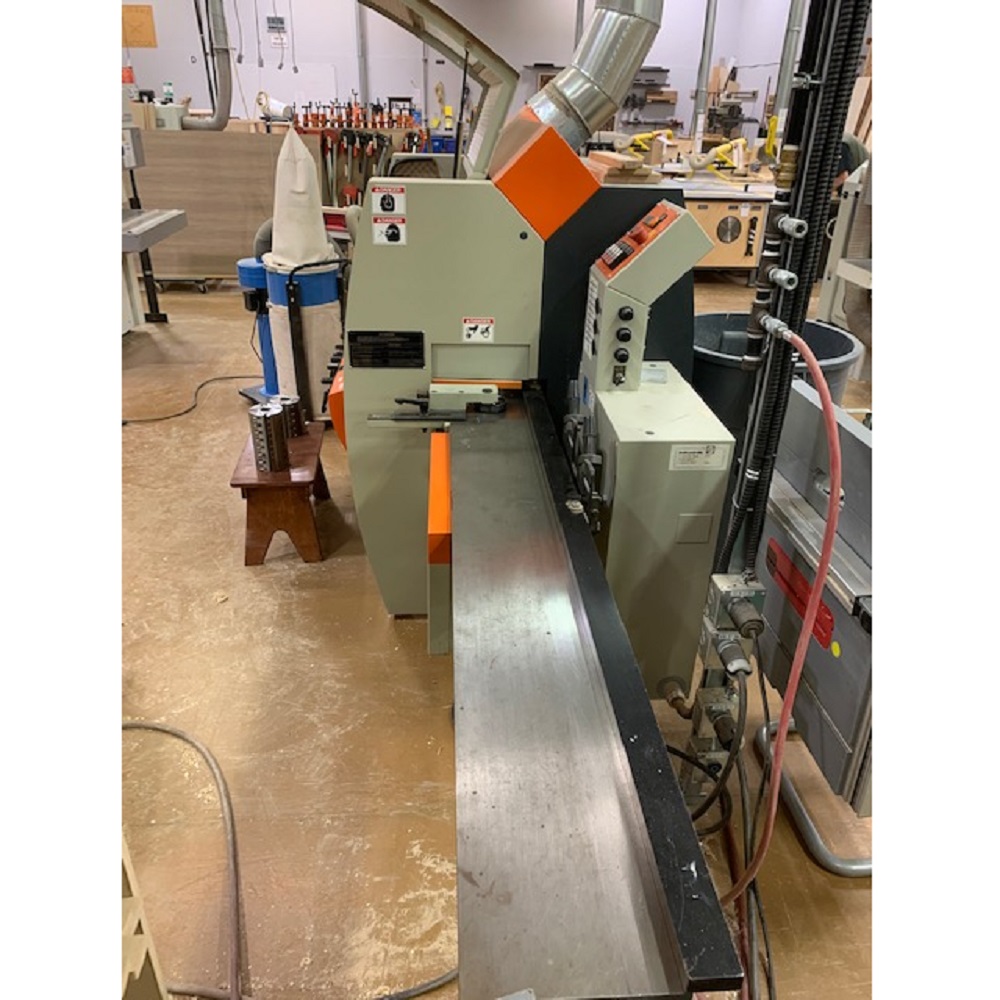

• Infeed table 2 M (6-1/2′), adjustable fence, and side pressure roller mounted to table.
• Mfg Year 1999

Features, Specifications, Dimensions & Weight data is approximate and to the best of our knowledge.
Please call for more information.
