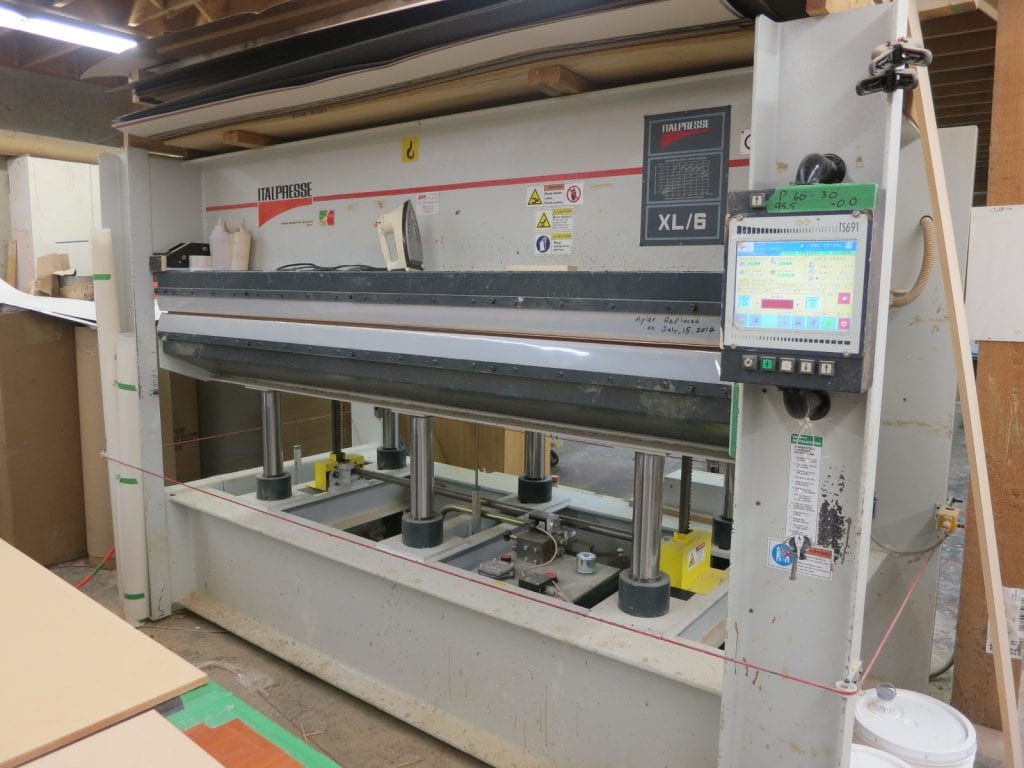

4′ x 8′ Italpresse XL/6 Hydraulic Hot Press

2500 x 1300 mm Italpresse “XL/6” Hot Press for Flat Lamination

• Platens 98″ x 51″, Daylight 15-3/4″
• 6 Upstroke press cylinders producing 132 tons of thrust
• Max. laminating pressure – 66 psi
• Manual loading on all four sides possible
• Laminated steel press platens heated by circulation of thermal oil
• Energy efficient 12 KW electrical resistance thermal oil boiler
• Max. platen temperature 250 F.
• Platens covered with spring tensioned, scratch and glue resistant mylar film
• LCD operator interface for digital control of temperature, hydraulic pressure and pressing time
• EFC electronic flatness system to detect deflection of the moving platen to prevent damage in case of improper loading

Please Call for more information.
